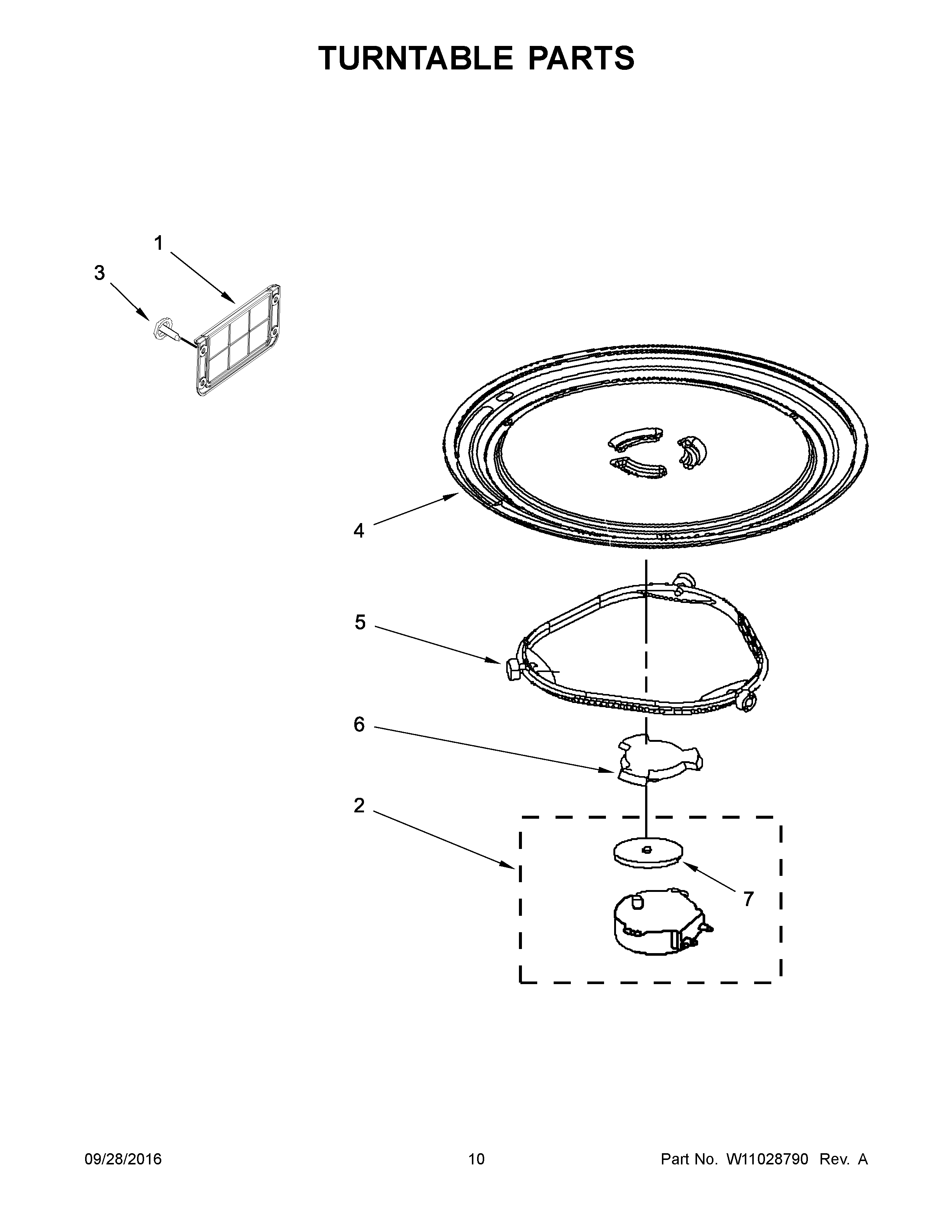

AMV1150VAB6 06 – TURNTABLE PARTS

Products

Position	Product
1	COVER, INLET INCLUDES NAILS AND BUSHINGS
2	MOTOR, TURNTABLE
3	PLASTIC RIVET
4	TURNTABLE
5	RING, TURNTABLE (WITH ROLLERS)
6	MAY W10337248
7	MAY 8184109
