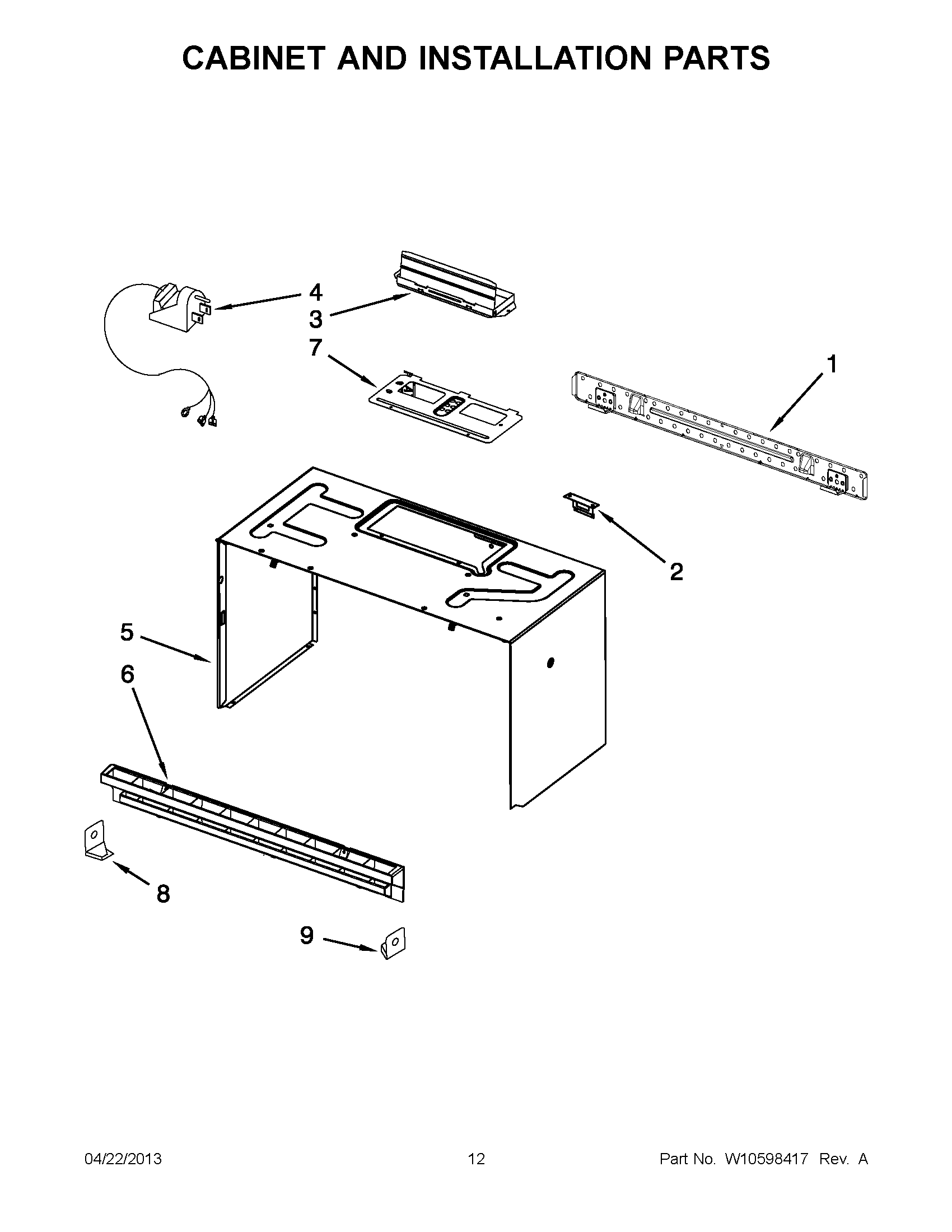

AMV1150VAS4 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIMISCELLANEOUS PARTS, GROUND WIRE ASSEMBLY
NIMAY W10247296
NIMISCELLANEOUS PARTS, HARNESS, MAGNETRON TO HIGH VOLTAGE TRANSFORMER
NIMISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NIMISCELLANEOUS PARTS, HARNESS, NTC SENSOR FLAT WIRE
NIInstallation, Hardware
NIMAY W10539846
NIMAY W10138802
NIMISCELLANEOUS PARTS, HARNESS, MAIN
NIMISCELLANEOUS PARTS, HARNESS, HOOD LAMP AND TURNTABLE MOTOR
1PLATE, MOUNTING
2MAY 8206385
3MAY 8206442
4MAY W10269470
5CASE, OUTER (BISQUE)
5MAY W10462003
5MAY W10462001
6MAY W10259625
6GRILLE, VENT (BISQUE)
6MAY W10269471
7MAY W10210832
8VENT GRID HOLDER, LEFT SIDE (BLACK)
8VENT GRID HOLDER, LEFT SIDE (WHITE)
9VENT GRID HOLDER, RIGHT SIDE (BLACK)
9VENT GRID HOLDER, RIGHT SIDE (WHITE)
