AMV1150VAW6 05 – AIR FLOW PARTS – Aparts

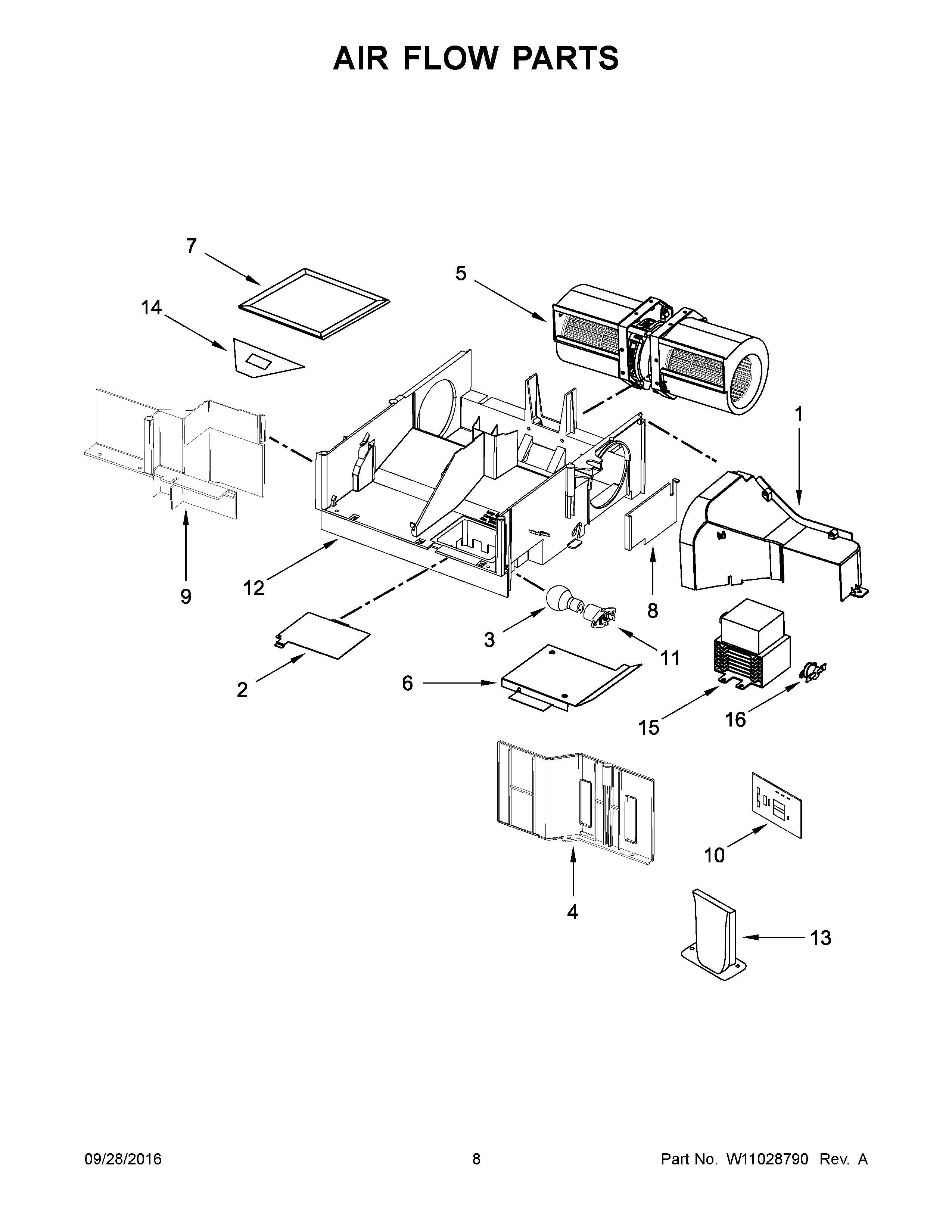

AMV1150VAW6 05 – AIR FLOW PARTS

Products

Position	Product
1	MAY 8206340
2	MAY 8206382
3	MAY 4393681
4	SHIELD, FINGER
5	MOTOR, HOOD FAN
6	MAY W10138797
7	MAY 8206230
8	COVER, RIGHT DUCT
9	PLATE, AIR GUIDE SEALING
10	FILTER, NOISE
11	MAY W10210878
12	PLATE, AIR GUIDE BASE
13	PLATE, WATERPROOF
14	SOCKET, MOTOR WIRE
15	MAGNETRON
16	THERMOSTAT, MAGNETRON
