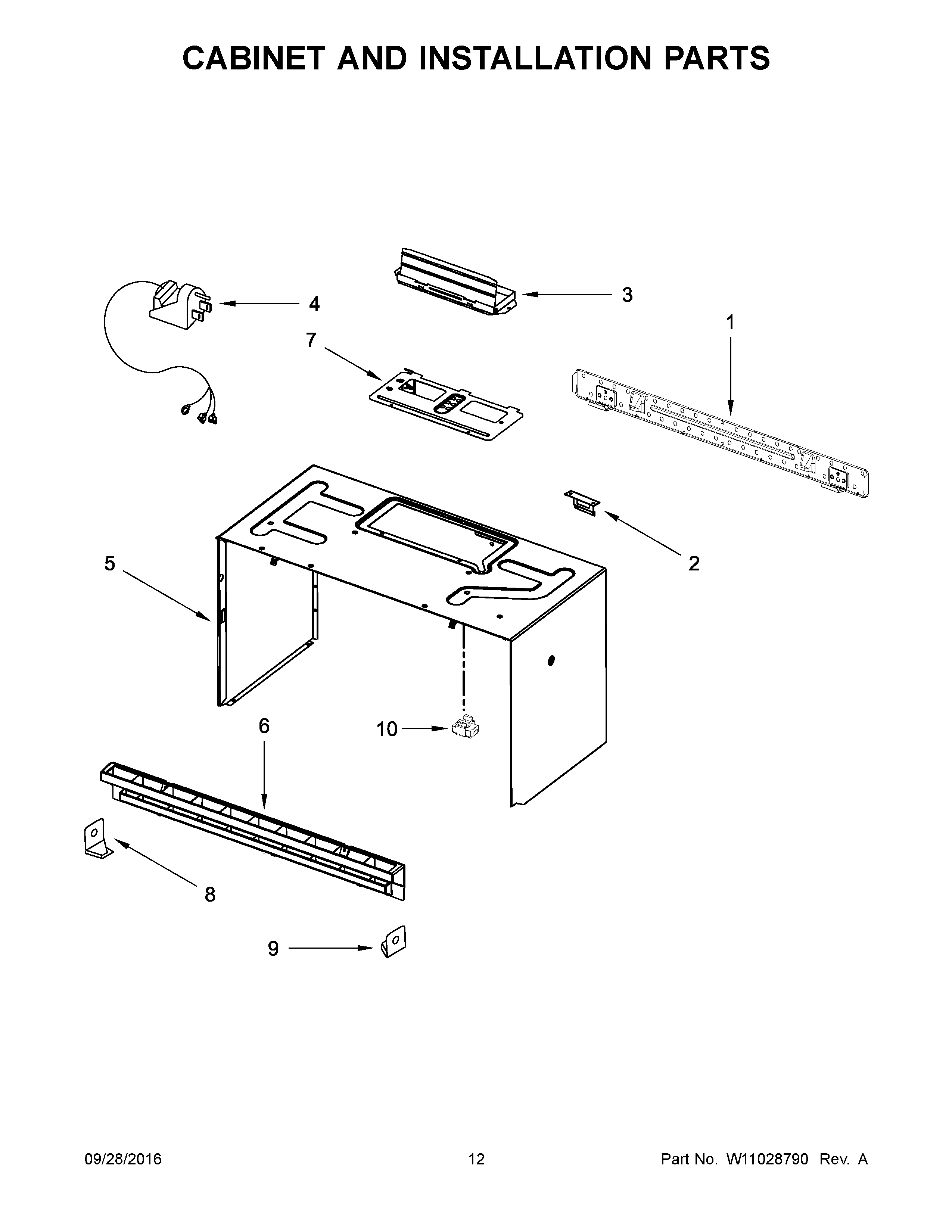

AMV1150VAW6 07 – CABINET AND INSTALLATION PARTSadmin2025-04-26T11:17:12+00:00AMV1150VAW6 07 – CABINET AND INSTALLATION PARTS
Products
| Position | Product |
|---|
| NI | MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH) |
| NI | MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE |
| NI | MISCELLANEOUS PARTS, HARDWARE, INSTALLATION |
| NI | MISCELLANEOUS PARTS, HARNESS, MAGNETRON TO HIGH VOLTAGE TRANSFORMER |
| NI | MISCELLANEOUS PARTS, HARNESS, HOOD LAMP AND TURNTABLE MOTOR |
| NI | MISCELLANEOUS PARTS, GROUND WIRE ASSEMBLY |
| NI | MISCELLANEOUS PARTS, HARNESS, MAIN |
| NI | MISCELLANEOUS PARTS, HARNESS, NTC SENSOR FLAT WIRE |
| 1 | PLATE, MOUNTING |
| 2 | MAY 8206385 |
| 3 | DAMPER |
| 4 | CORD-POWER |
| 5A | CASE, OUTER (BLACK) |
| 5 | CASE, OUTER (WHITE) |
| 6 | MAY W10269471 |
| 6A | MAY W10259625 |
| 7 | MAY W10210832 |
| 8 | HOLDER, VENT LEFT SIDE (BLACK) |
| 8A | HOLDER, VENT LEFT SIDE (STAINLESS) |
| 9 | HOLDER, VENT RIGHT SIDE (BLACK) |
| 9A | HOLDER, VENT RIGHT SIDE (STAINLESS) |
| 10 | ASSEMBLY, MOUNTING NUT |
