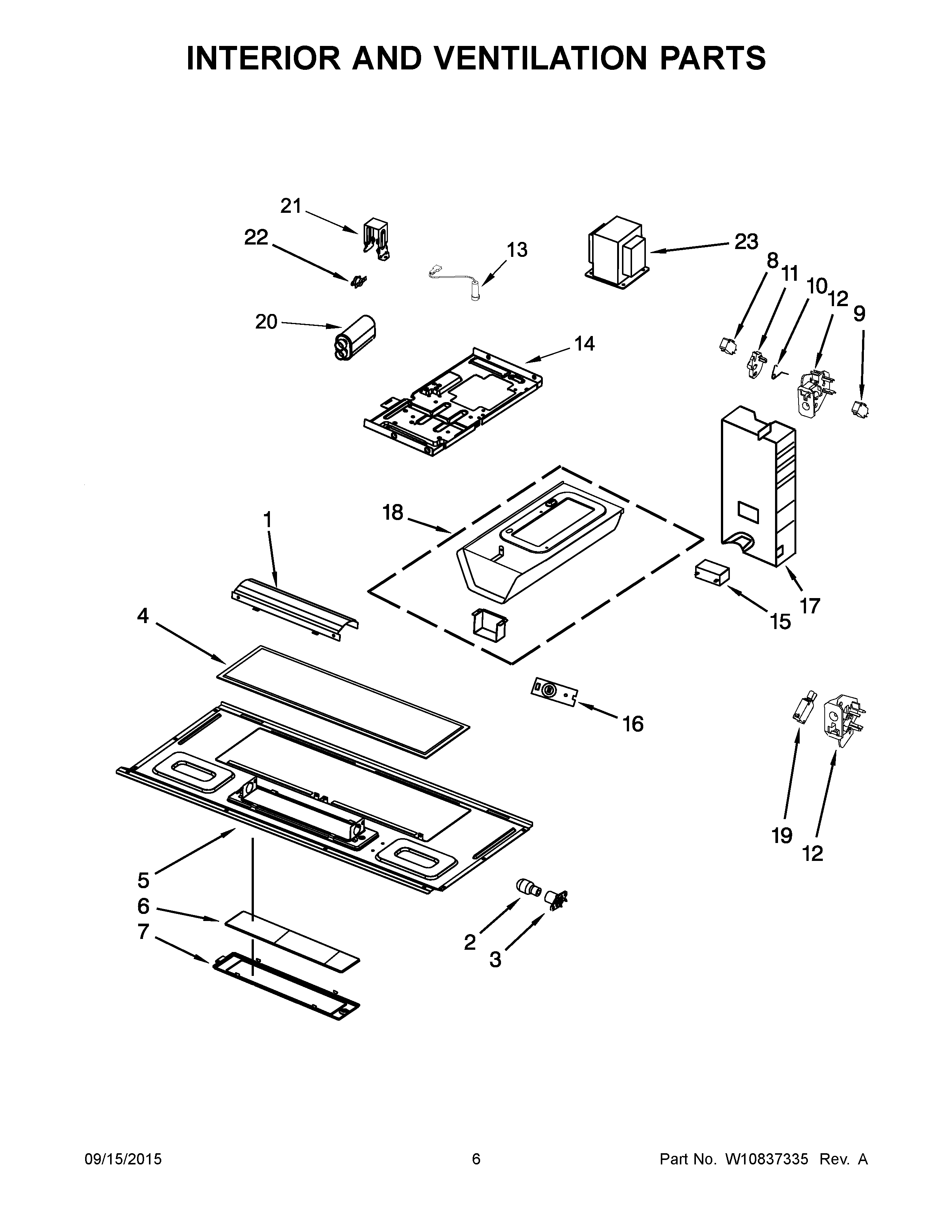

AMV1160VAW4 04 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	ASSEMBLY, LAMP GLASS AND HOLDER
2	MAY 8206232
3	MAY W10210871
4	MAY W10208631
5	MAY W10245196
6	MAY W10210875
7	MAY W10210873
8	SWITCH, MICRO V15T16-CZ200
9	SWITCH, MICRO V15T16-CC200
10	MAY W10156812
11	MAY W10156811
12	MAY 8206419
12A	MAY W10156813
13	DIODE, HIGH VOLTAGE
14	MAY W10269456
15	Capacitor, 125 V
16	Thermistor (PCBA)
17	AIR GUIDE, LOWER
18	MAY W10315759
19	SWITCH, MICRO V15T16-CP200
20	MAY W10138798
21	BRACKET, CAPACITOR
22	MAY W10269232
23	MAY W10269455
