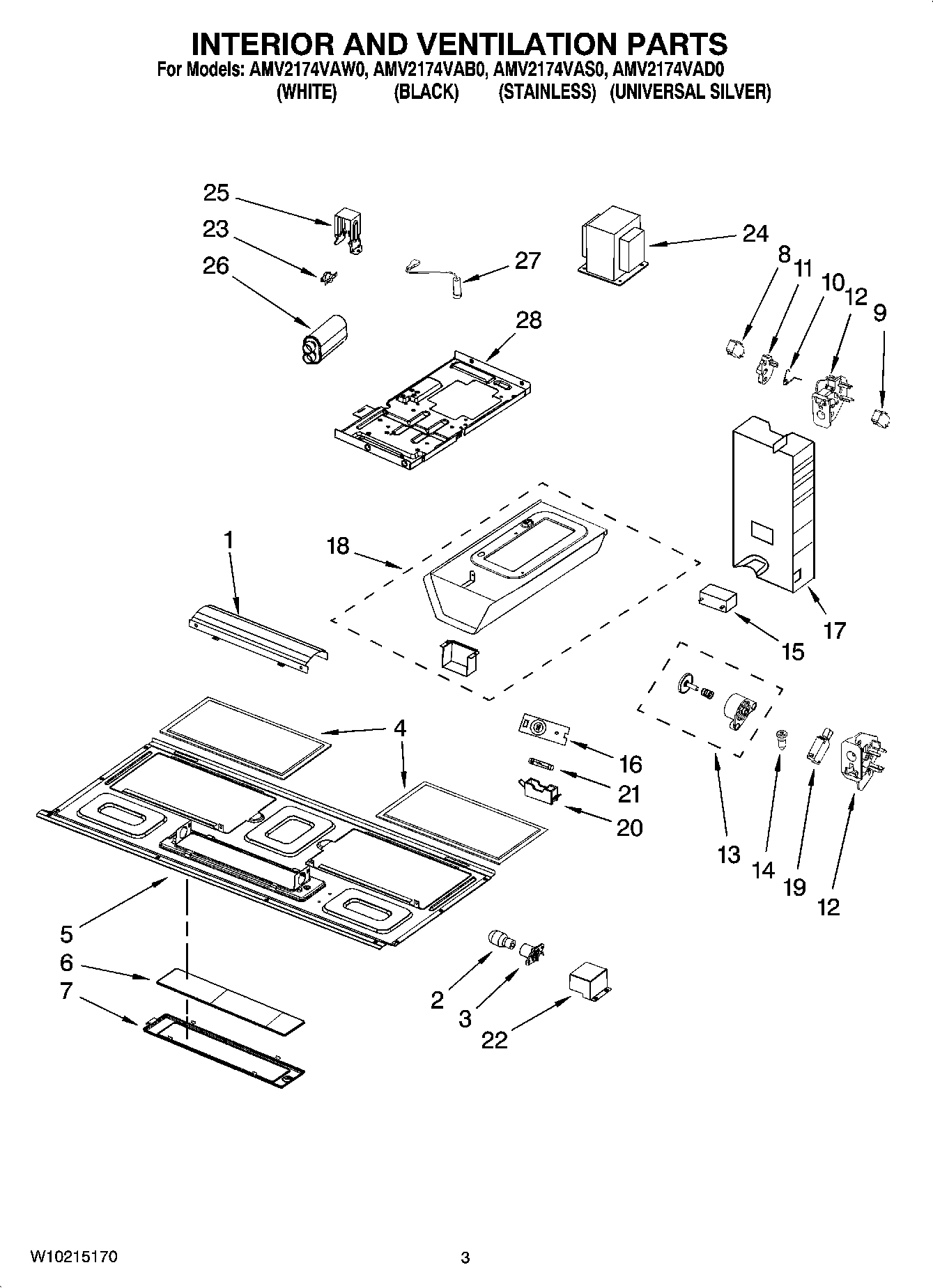

AMV2174VAB0 03 – INTERIOR AND VENTILATION PARTS

AMV2174VAB0 03 – INTERIOR AND VENTILATION PARTS

Written by

in

AMV2174VAB0 03 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	MAY 8206387
2	MAY 8206232
3	MAY W10210871
4	MAY W10181505
5	Capacitor, 125 V
6	MAY W10210875
7	MAY W10210873
8	Switch, Micro V5P010CG3
9	Switch, Micro V5P020CG3
10	MAY W10156812
11	MAY W10156811
12	MAY 8206419
12	MAY W10156813
13	MAY W10197758
14	SCREW
15	MAY 8206357
16	Thermistor (PCBA)
17	MAY W10163421
18	MAY W10163423
19	Switch, Micro V5P030CG3
20	MAY W10117908
21	MAY W10138793
22	Terminal Cvr,Lamp
23	MAY 8206379
24	MAY 8206343
25	MAY W10156817
26	MAY W10138798
27	MAY W10163432
28	MAY W10163420
