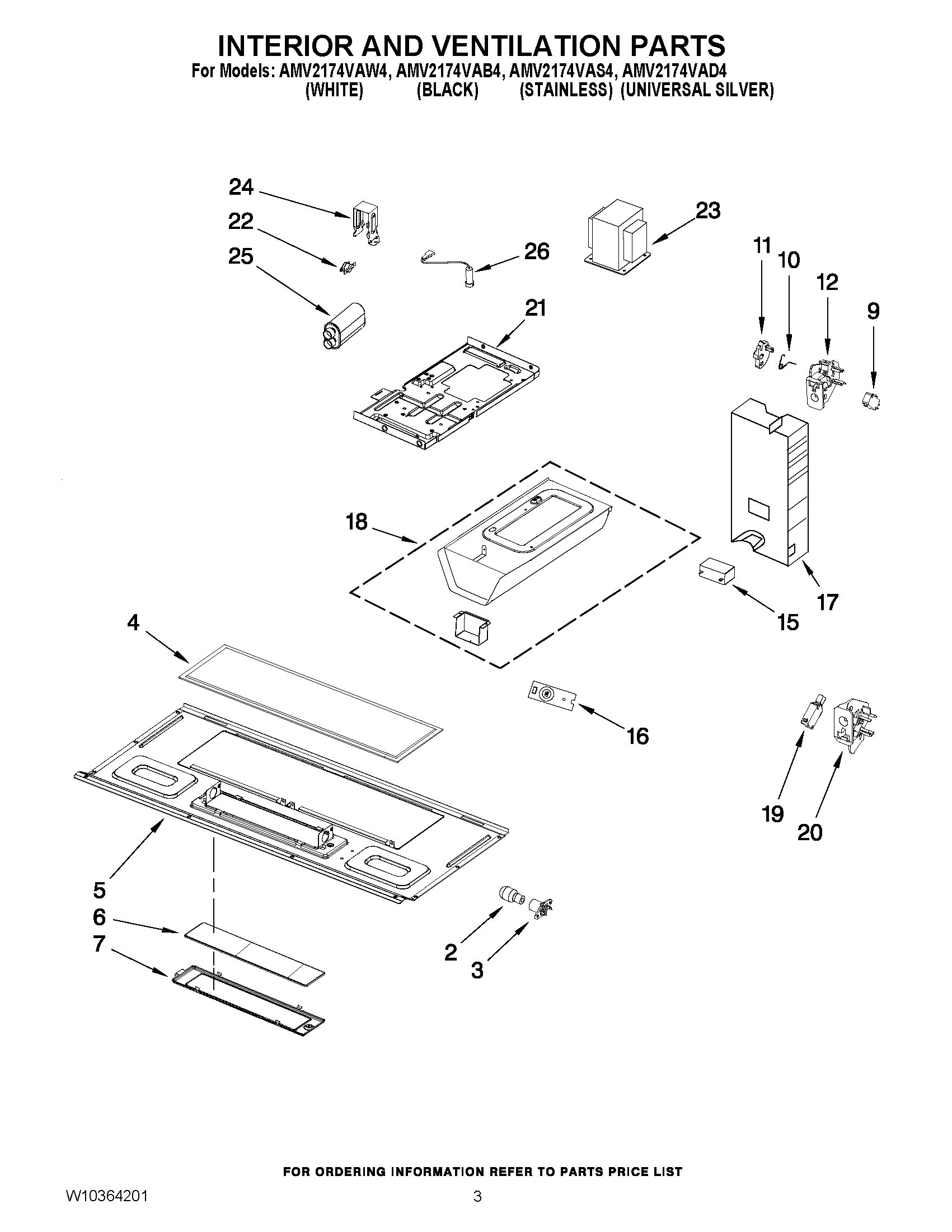

AMV2174VAB4 03 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
2	MAY 8206232
3	MAY W10210871
4	MAY W10208631
5	MAY W10245196
6	MAY W10210875
7	MAY W10210873
9	SWITCH, MICRO V15T16-CC200
10	MAY W10156812
11	MAY W10156811
12	MAY 8206419
15	MAY 8206357
16	Thermistor (PCBA)
17	MAY W10364230
18	MAY W10315759
19	SWITCH, MICRO V15T16-CP200
20	MAY W10156813
21	CHASSIS
22	MAY W10269232
23	MAY W10269455
24	MAY W10156817
25	MAY W10138798
26	MAY W10163432
