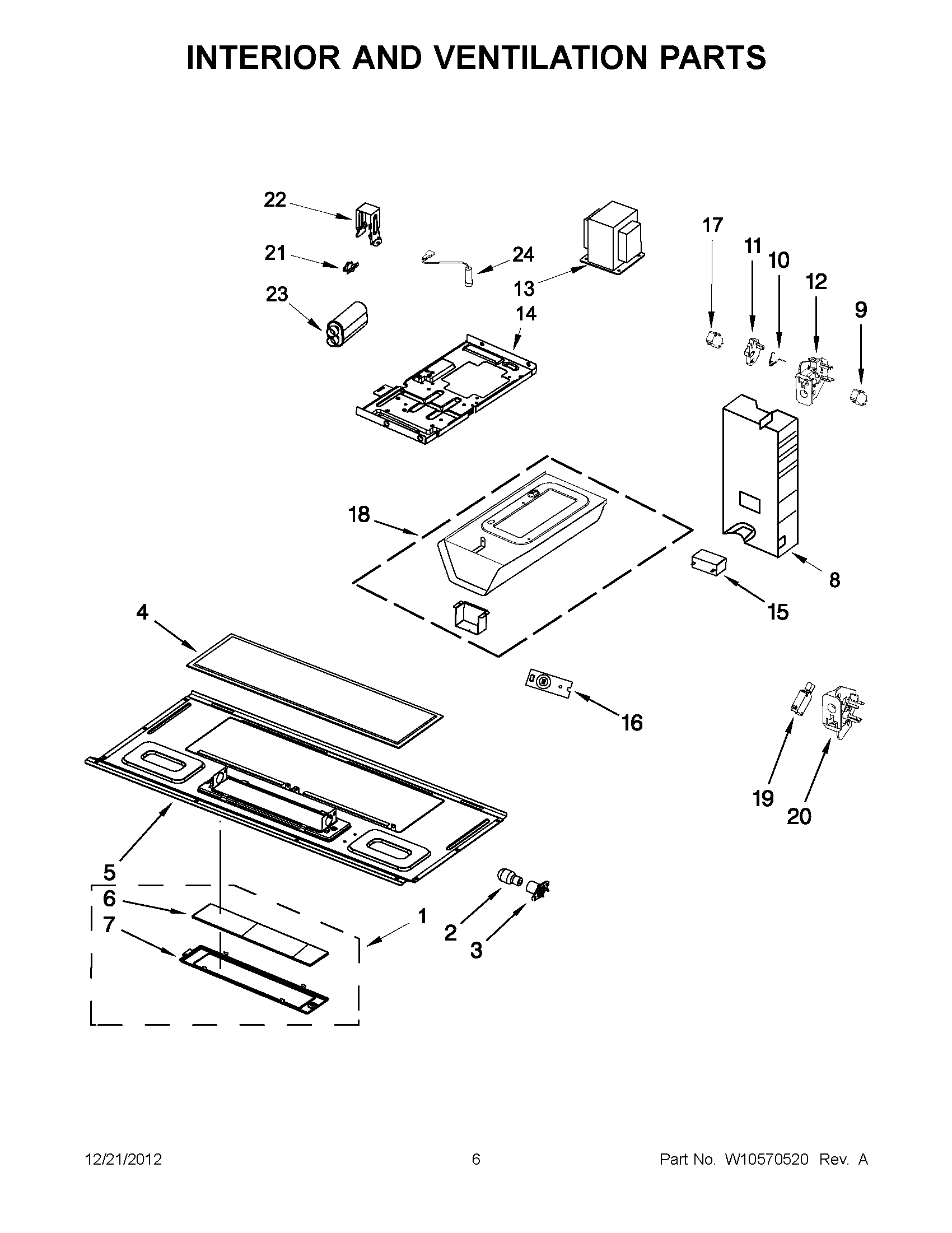

AMV2174VAD5 03 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	ASSEMBLY, LAMP GLASS AND HOLDER
2	MAY 8206232
3	MAY W10210871
4	MAY W10208631
5	MAY W10245196
6	MAY W10210875
7	MAY W10210873
8	AIR GUIDE, LOWER
9	SWITCH, MICRO V15T16-CC200
10	MAY W10156812
11	MAY W10156811
12	MAY 8206419
13	MAY 8206343
14	MAY W10269456
15	MAY 8206357
16	Thermistor (PCBA)
17	SWITCH, MICRO V15T16-CZ200
18	MAY W10315759
19	SWITCH, MICRO V15T16-CP200
20	MAY W10156813
21	MAY W10269232
22	MAY W10156817
23	MAY W10138798
24	MAY W10163432
