AMV2174VAS4 04 – AIR FLOW PARTS – Aparts

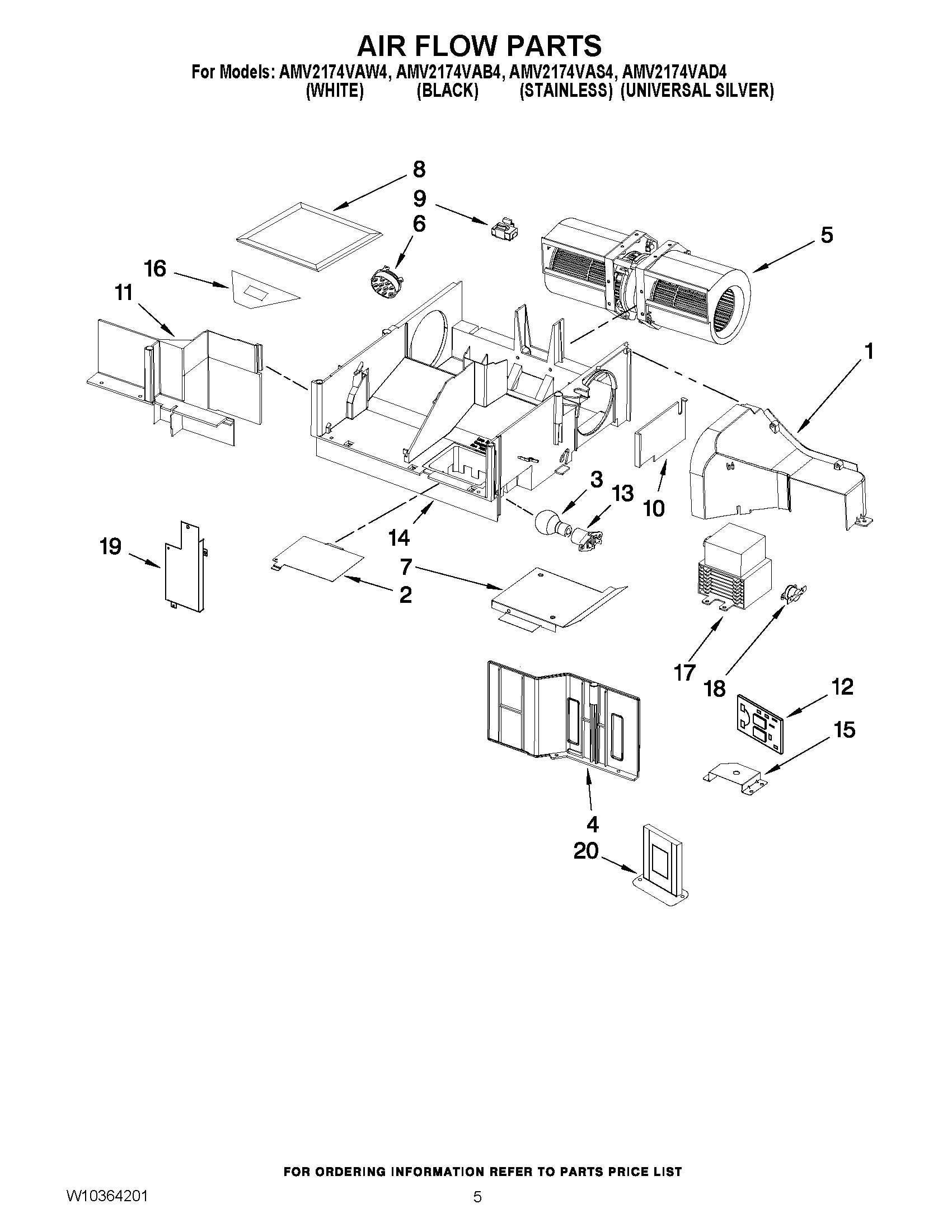

AMV2174VAS4 04 – AIR FLOW PARTS

Products

Position	Product
1	MAY 8206340
2	MAY 8206382
3	MAY 4393681
4	SHIELD, FINGER
5	MAY W10325862
6	MAY 8206626
7	MAY W10247762
8	MAY 8206230
9	MOUNTING, NUT
10	MAY W10269469
11	Air Guide
12	MAY W10269465
13	MAY W10210878
14	MAY W10269468
15	MAY W10313270
16	MAY W10139750
17	MAY W10216360
18	MAY 8206342
19	COVER, CAVITY AIR GUIDE INLET
20	PLATE, WATER PROOF
