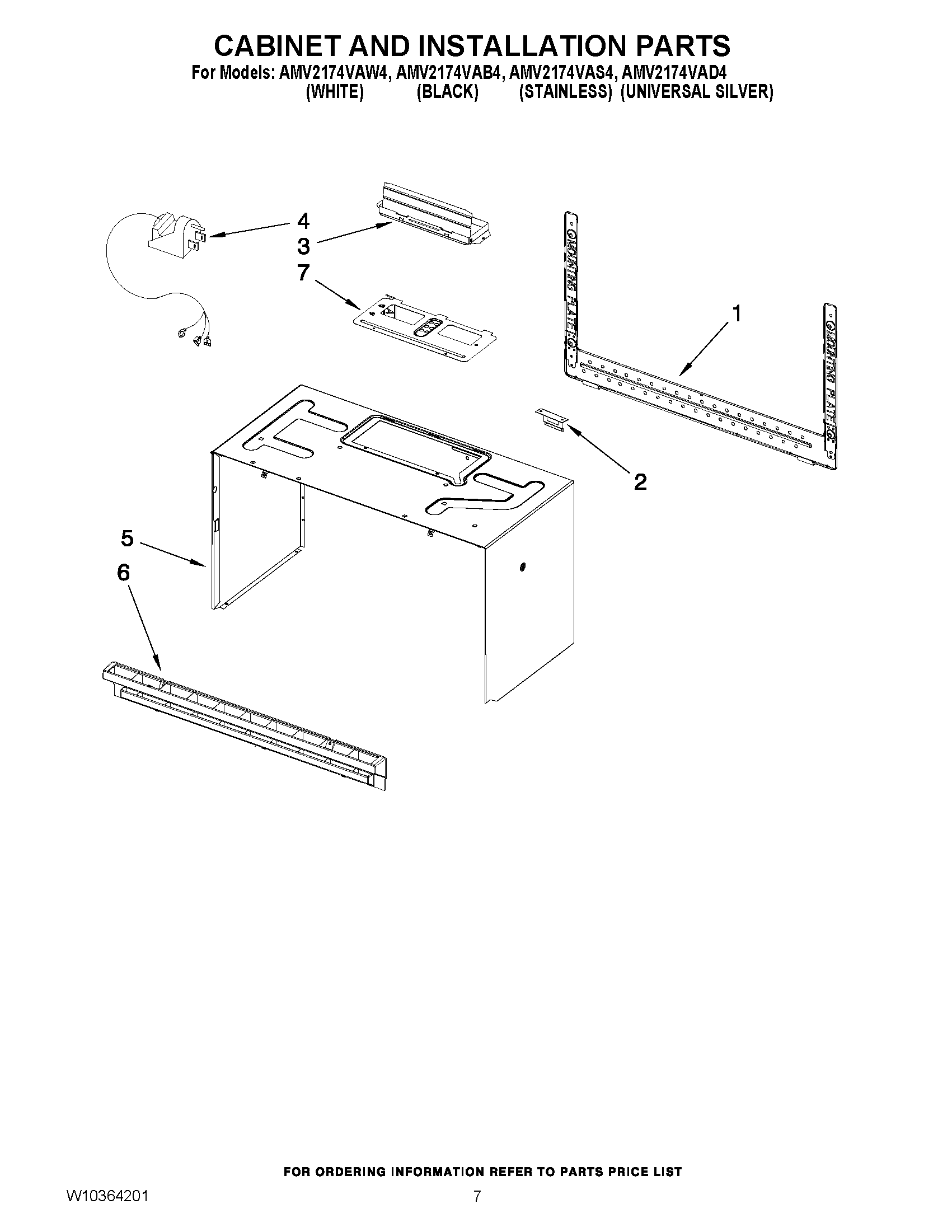

AMV2174VAS4 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIMAY W10346137
NIGROUND WIRE ASSY
NIMISCELLANEOUS, MAIN HARNESS
NIMAY 8205871
NIMAY 8205696
NIMAY W10269479
NIMAY W10163436
NIInstallation, Hardware
NIMAY W10138802
1MAY W10269225
2MAY 8206385
3MAY 8206442
4MAY W10269470
5CASE, OUTER (BLACK)
5MAY W10269453
6MAY W10318624
6MAY W10212405
6MAY W10318625
7MAY W10210832
