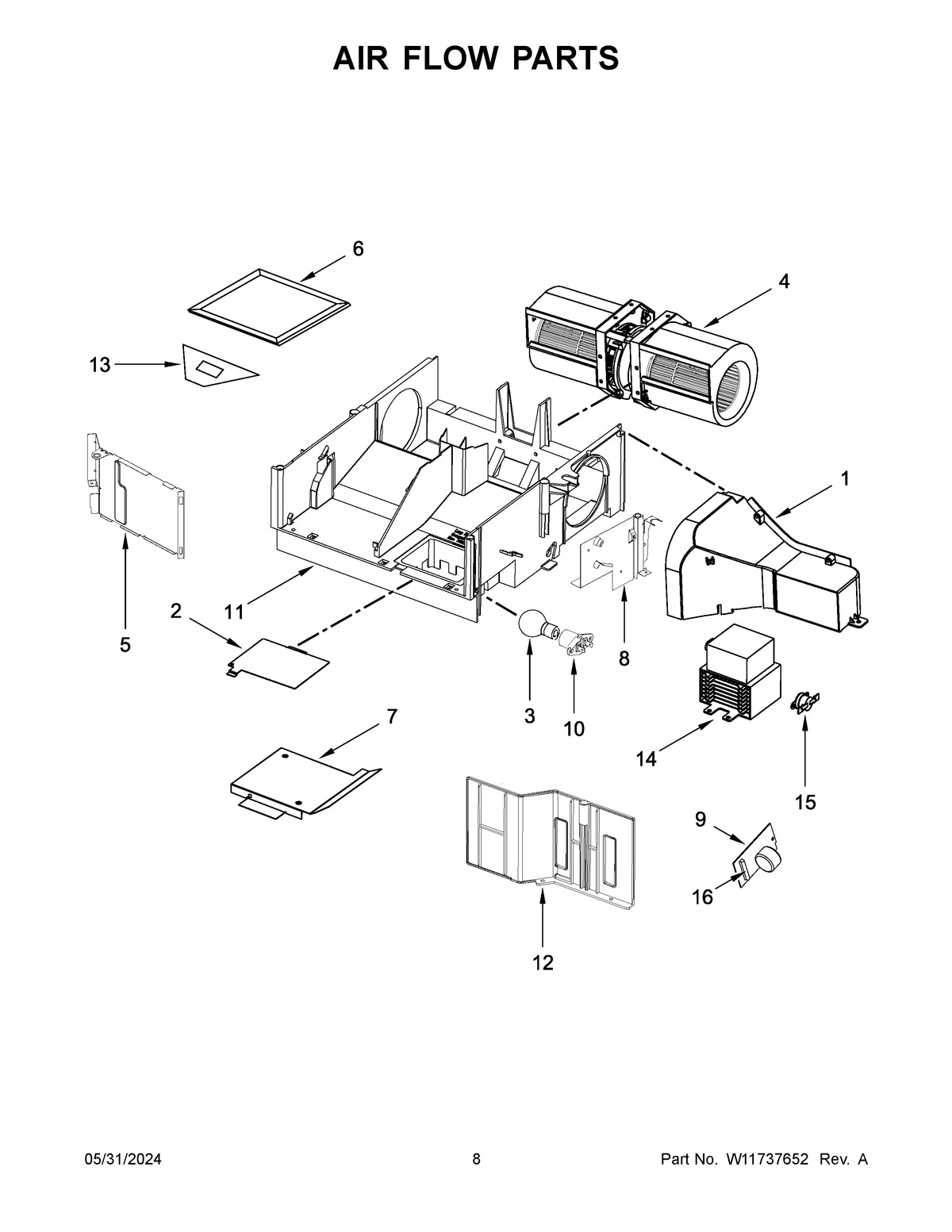

AMV2307PFB08 05 – AIR FLOW PARTS

Products

Position	Product
1	W10471570 Whirlpool Microwave Deflector Assembly
2	8206382 Whirlpool Microwave Light Cover
3	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
4	W11441128 Whirlpool Microwave Fan Motor
5	W10827148 Whirlpool Air Guide
6	W10892387 Whirlpool Microwave Charcoal Filter
7	W10138797 Whirlpool Microwave Duct Cover
8	W11293488 Whirlpool Microwave Air Duct
9	W10422269 Whirlpool Microwave Filter
10	WPW10210878 Whirlpool Microwave LMP Housing
11	W10828030 Whirlpool Microwave Air Duct
12	W11520832 Whirlpool Side Cover
13	W10810142 Whirlpool Relief Strain
14	MAGNETRON
15	W11224803 Whirlpool Microwave Thermostat Fixed
16	FUSE-THRML
