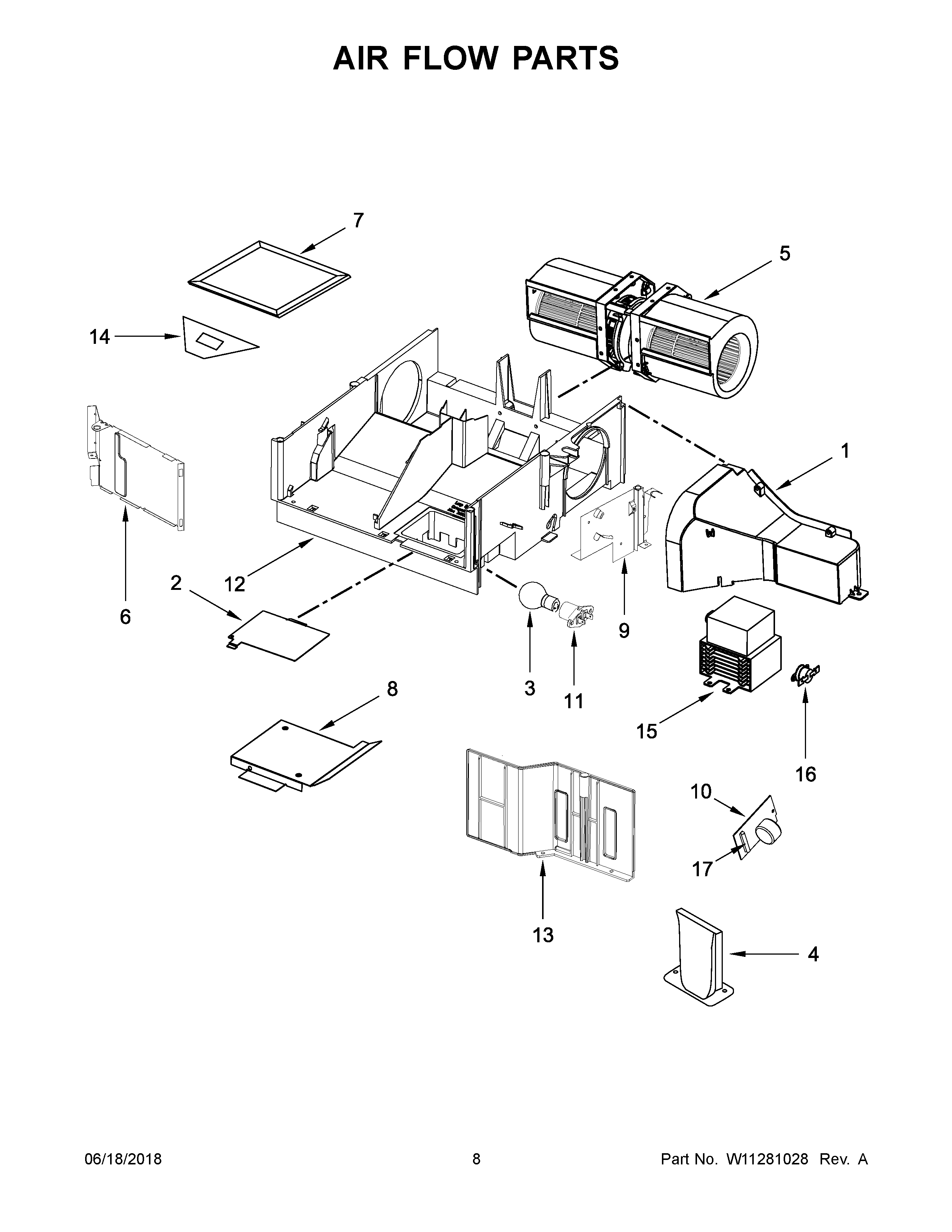

AMV2307PFB1 05 – AIR FLOW PARTS

Products

PositionProduct
1DEFLECTOR, AIR
2MAY 8206382
3MAY 4393681
4PLATE, WATERPROOF
5MOTOR, HOOD FAN
6PLATE, AIR GUIDE SEALING
7FILTER, CHARCOAL
8MAY W10138797
9COVER, RIGHT DUCT
10FILTER, NOISE
11MAY W10210878
12BASEPLATE, AIR GUIDE
13SHIELD, FINGER
14SOCKET, MOTOR WIRE
15MAGNETRON
16THERMOSTAT, MAGNETRON
17MAY W10138793
