AMV2307PFB6 04 – INTERIOR AND VENTILATION PARTS

AMV2307PFB6 04 – INTERIOR AND VENTILATION PARTS

Written by

in

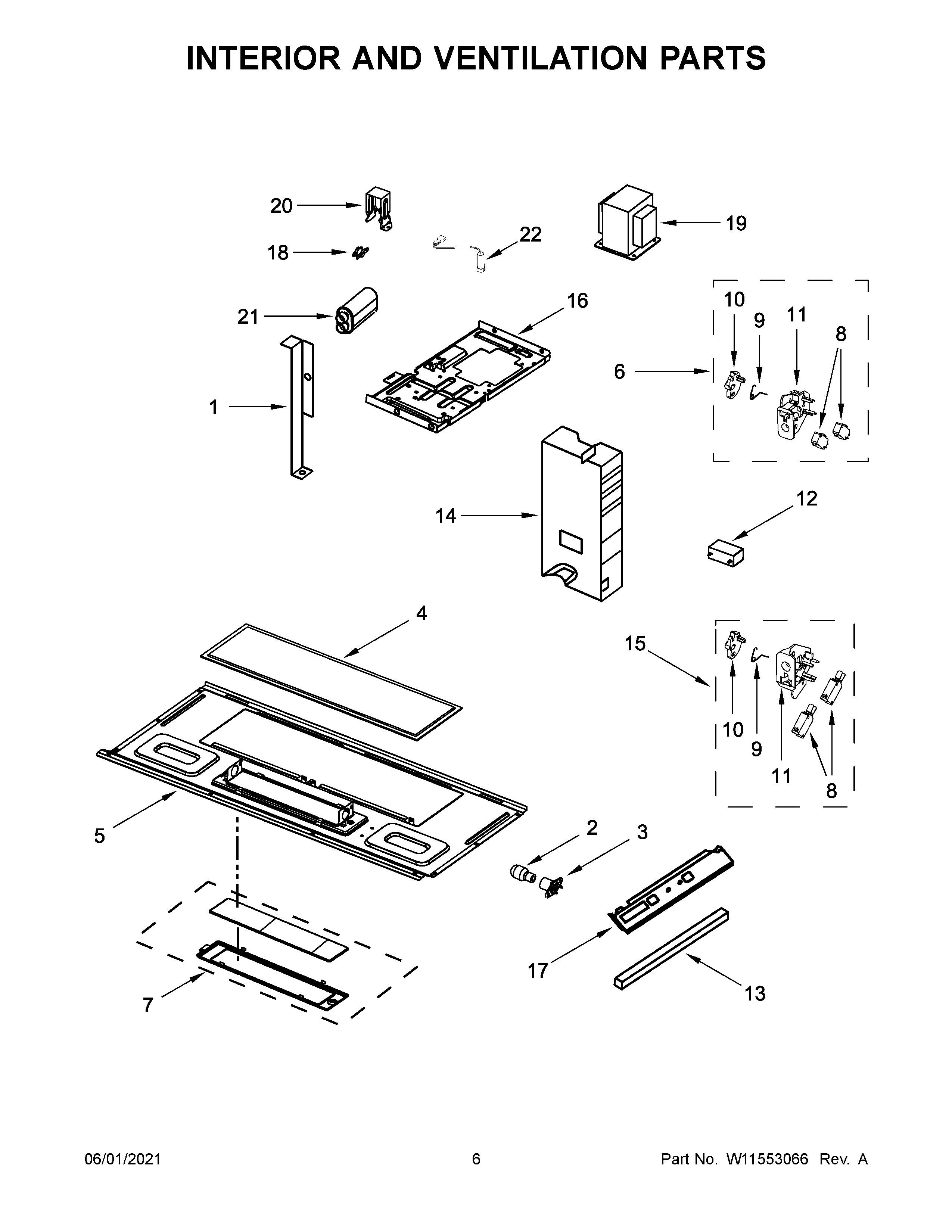

AMV2307PFB6 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1W10313275 Whirlpool Microwave Support Bracket
28206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3W10210871 Whirlpool Microwave Lamp Housing
4W10208631A Whirlpool Microwave Grease Filter
5W10245196 Whirlpool Microwave Base
6W11551558 Whirlpool Microwave Upper Interlock Assembly TITAN187
7COVR-LIGHT
8CABINET (NOT A SERVICEABLE PART)
9W10156812 Whirlpool Spring
10W10562613 Whirlpool Microwave Interlock Cam Assembly
11AWPW10156813 Whirlpool Microwave Bottom Interlock Support
11WP8206419 Whirlpool Microwave Top Interlock Support
12W11405832 Whirlpool Microwave Capacitor
13W10571179 Whirlpool Cushion
14W11302941 Whirlpool Microwave Side Cover
15LOWER INTERLOCK ASSY
16W10827115 Whirlpool Microwave Base
17W10904020 Whirlpool Base Assembly
18W10269232 Whirlpool Microwave Thermostat Fix
19W11493408 Whirlpool Microwave Transformer
20W11265233 Whirlpool Cap Carrier Bracket
21CAPACTR-MG
22W11256462 Whirlpool Microwave Diode
