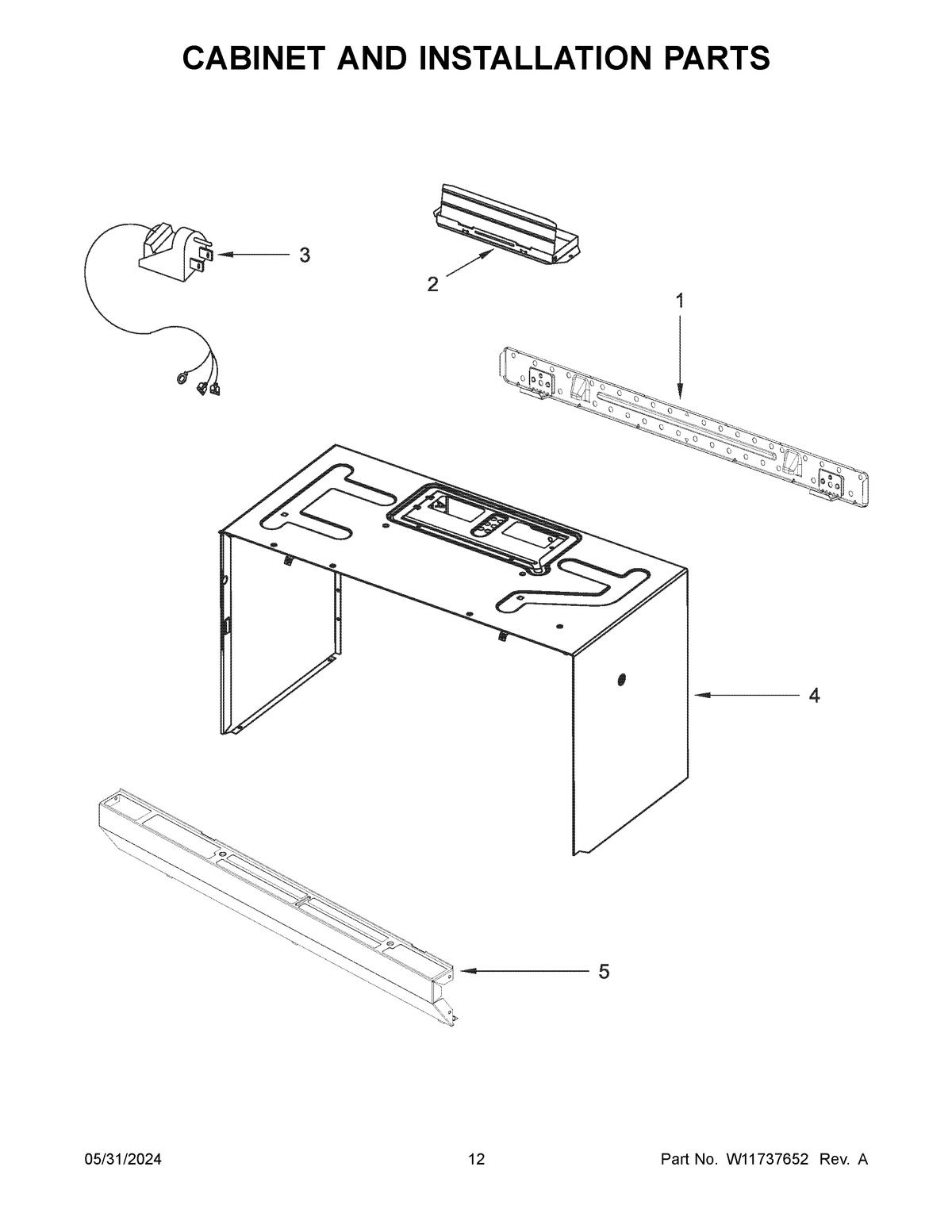

AMV2307PFS08 07 – CABINET AND INSTALLATION PARTS

AMV2307PFS08 07 – CABINET AND INSTALLATION PARTS

Written by

in

AMV2307PFS08 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIWP8169704 Whirlpool Screw
NIW11301790 Whirlpool Microwave Wire Harness
NIMISCELLANEOUS PARTS, HARNESS, MAIN
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & SPANISH)
NIW10190018 Whirlpool Microwave Template
1W11025649 Whirlpool Microwave Mounting Plate
2W10843943 Whirlpool Microwave Vent Damper
3W10708076 Whirlpool Microwave Power Cord
4AW11446916 Whirlpool Microwave Cabinet Wrapper
4W11446917 Whirlpool Microwave Cabinet Wrapper
5AW10845643 Whirlpool Microwave Vent Grill
5W10845642 Whirlpool Microwave Vent Grille
