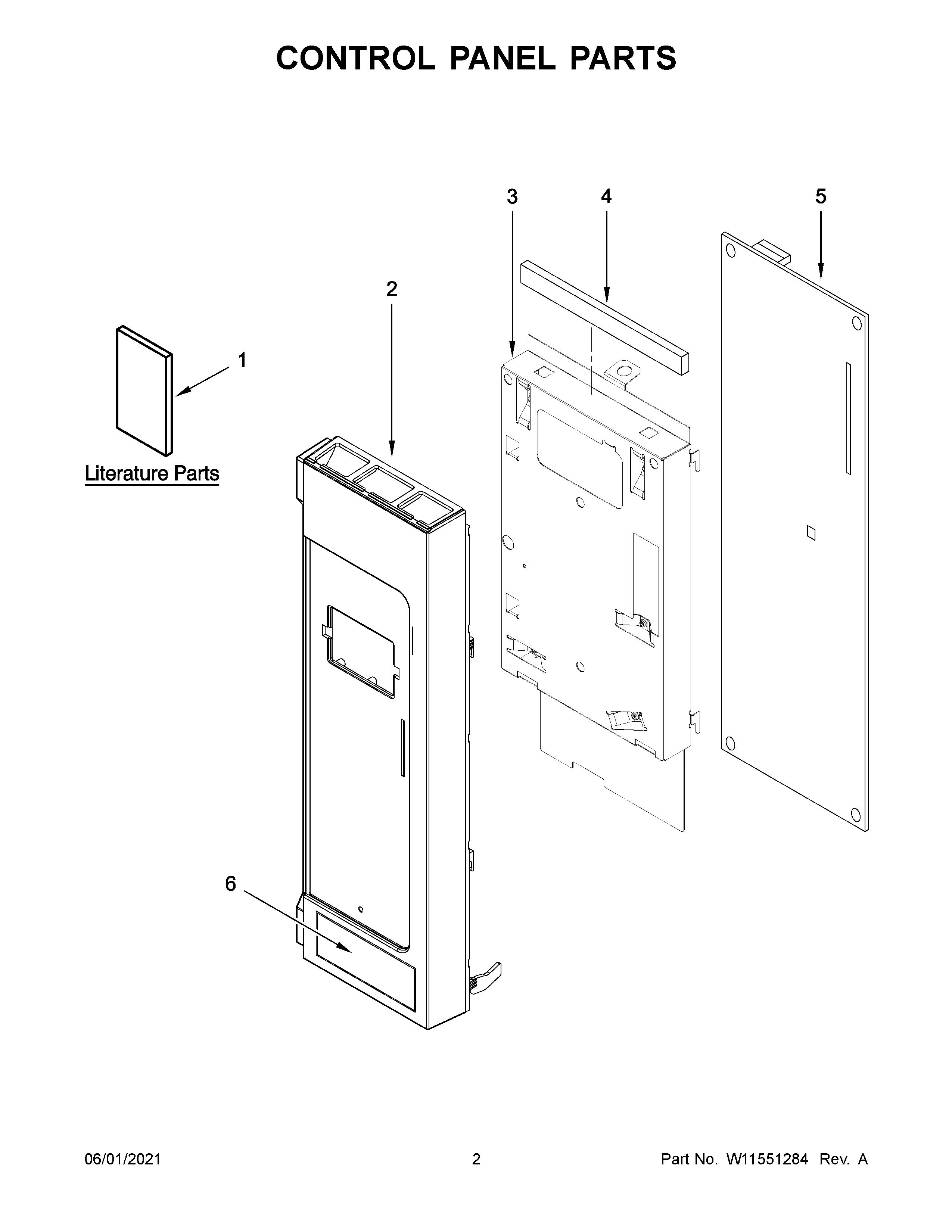

AMV2307PFS5 02 – CONTROL PANEL PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1AUSE AND CARE GUIDE
1BCOOKING GUIDE LABEL (ENGLISH)
1CTECH SHEET
2W10890779 Whirlpool Microwave Control Panel
2BW10918931 Whirlpool Microwave Control Panel
2AW10890778 Whirlpool Microwave Control Panel
3W11676791 Whirlpool Control Bracket
4W10833531 Whirlpool Microwave Foam Seal
5W11544456 Whirlpool Microwave ACU PCBA SRC ASY FOR W108498
6W10850630 Whirlpool Microwave PB Switch
6AW10850629 Whirlpool Microwave PB Switch
