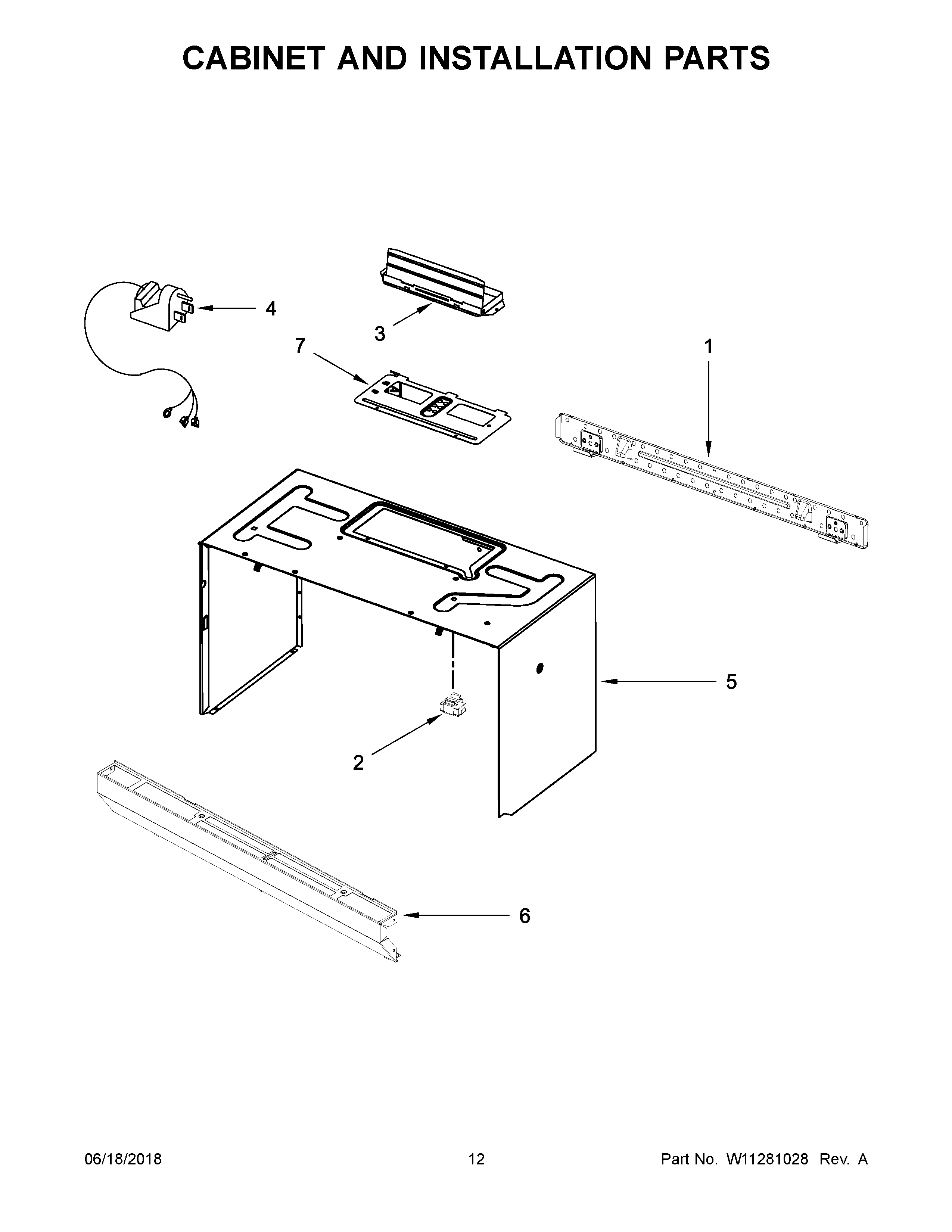

AMV2307PFW1 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH)
NIMISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER
NIMISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NIMISCELLANEOUS PARTS, HARDWARE, INSTALLATION
NIMISCELLANEOUS PARTS, HARNESS, MAIN
NIMISCELLANEOUS PARTS, HARNESS, MAGNETRON TO HIGH VOLTAGE TRANSFORMER
1PLATE, MOUNTING
2ASSEMBLY, MOUNTING NUT
3DAMPER
4CORD-POWER
5ACASE, OUTER (BLACK)
5CASE, OUTER (WHITE)
6AGRILLE, VENT (BLACK)
6GRILLE, VENT (WHITE)
7COVER, FAN MOTOR
