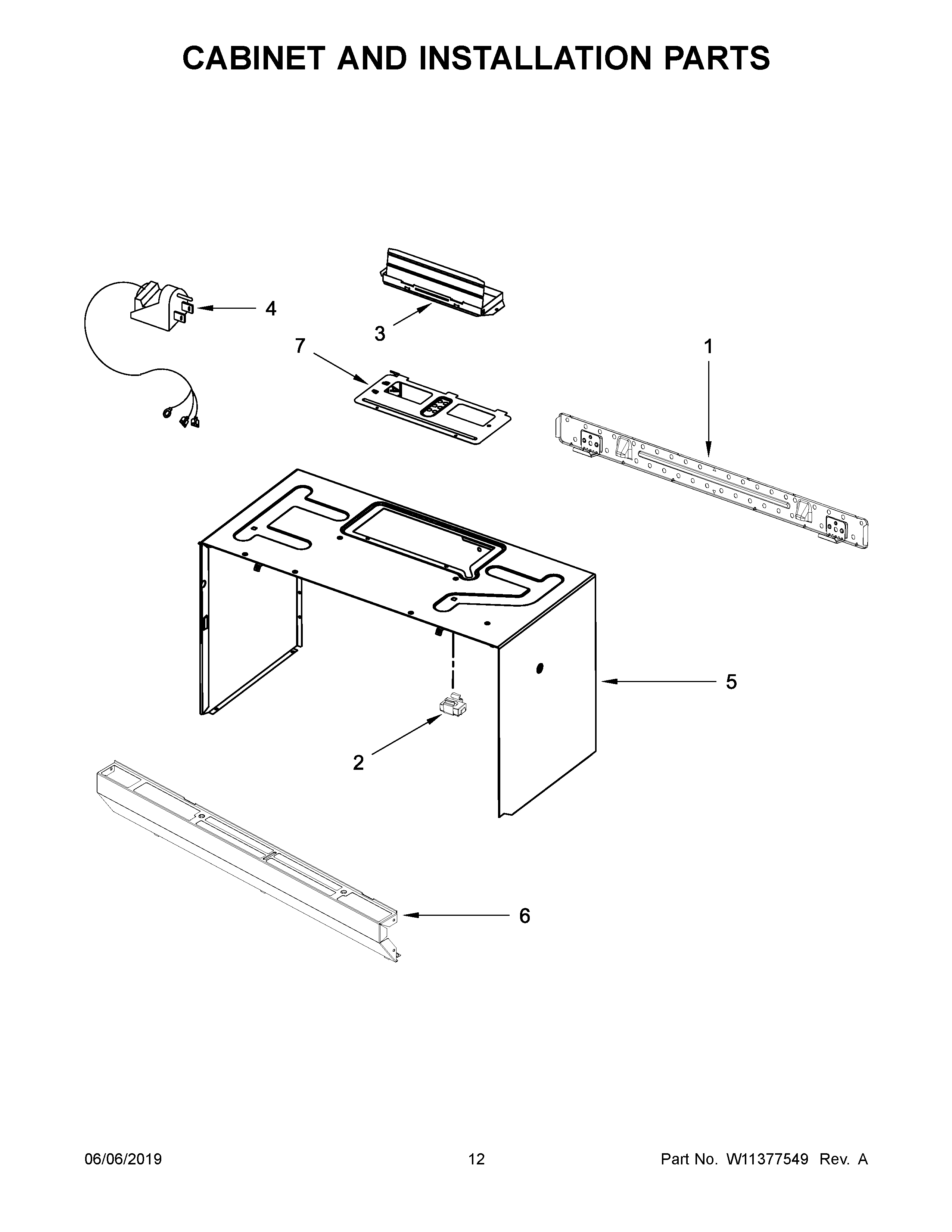

AMV2307PFW3 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH)
NIMISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER
NIMISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NIMISCELLANEOUS PARTS, HARDWARE, INSTALLATION
NIMISCELLANEOUS PARTS, HARNESS, MAGNETRON TO HIGH VOLTAGE TRANSFORMER
NIMAY W11300385
1PLATE, MOUNTING
2ASSEMBLY, MOUNTING NUT
3DAMPER
4CORD, POWER
5ACASE, OUTER (BLACK)
5CASE, OUTER (WHITE)
6AGRILLE, VENT (BLACK)
6GRILLE, VENT (WHITE)
7COVER, FAN MOTOR
