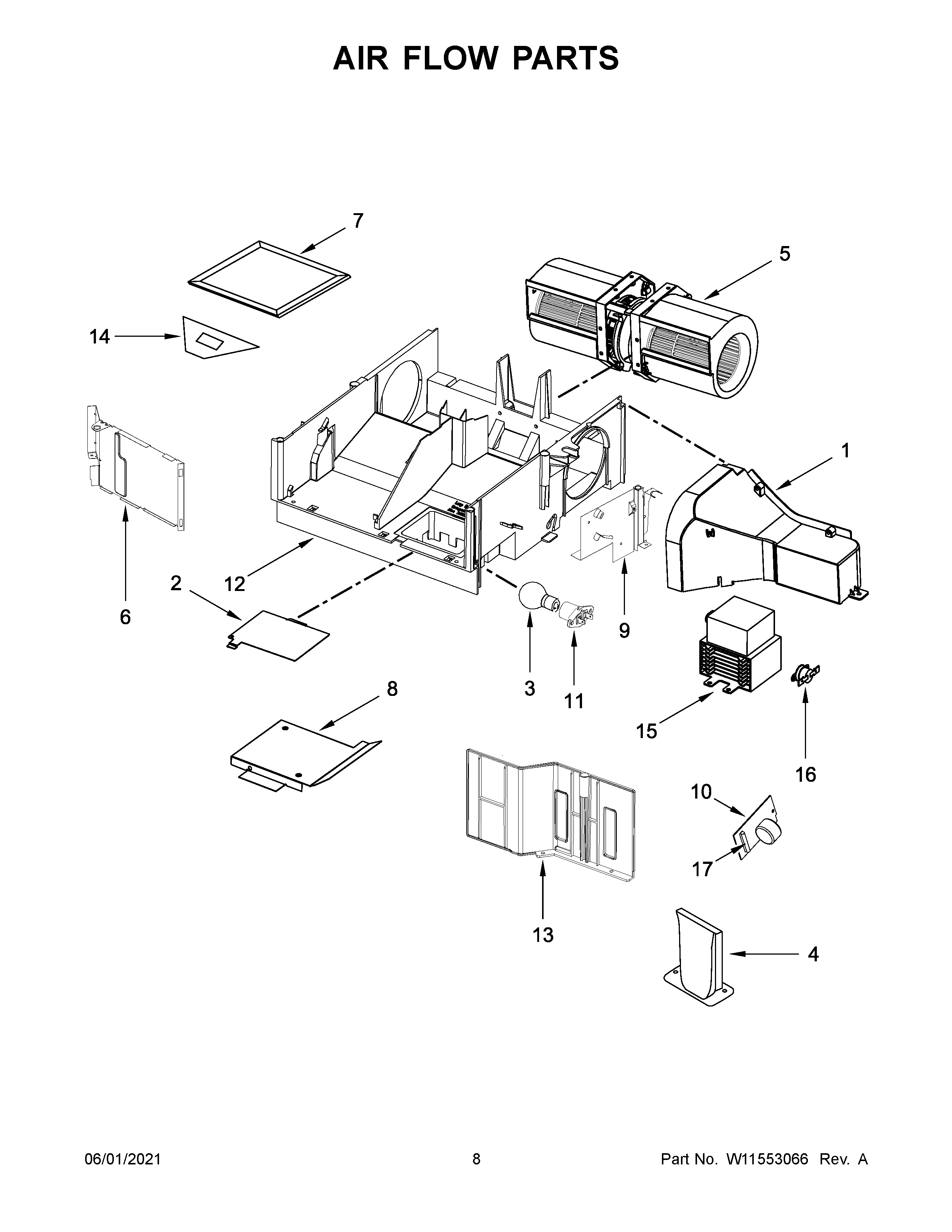

AMV2307PFW6 05 – AIR FLOW PARTS

Products

Position	Product
1	W10471570 Whirlpool Microwave Deflector Assembly
2	8206382 Whirlpool Microwave Light Cover
3	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
4	W11381953 Whirlpool Microwave Plate
5	W11441128 Whirlpool Microwave Fan Motor
6	W10827148 Whirlpool Air Guide
7	W10892387 Whirlpool Microwave Charcoal Filter
8	W10138797 Whirlpool Microwave Duct Cover
9	W11293488 Whirlpool Microwave Air Duct
10	W10422269 Whirlpool Microwave Filter
11	WPW10210878 Whirlpool Microwave LMP Housing
12	W10828030 Whirlpool Microwave Air Duct
13	W10342991 Whirlpool Microwave Side Cover
14	W10810142 Whirlpool Relief Strain
15	WPW10693025 Whirlpool Microwave Magnetron
16	W11224803 Whirlpool Microwave Thermostat Fixed
17	FUSE-THRML
