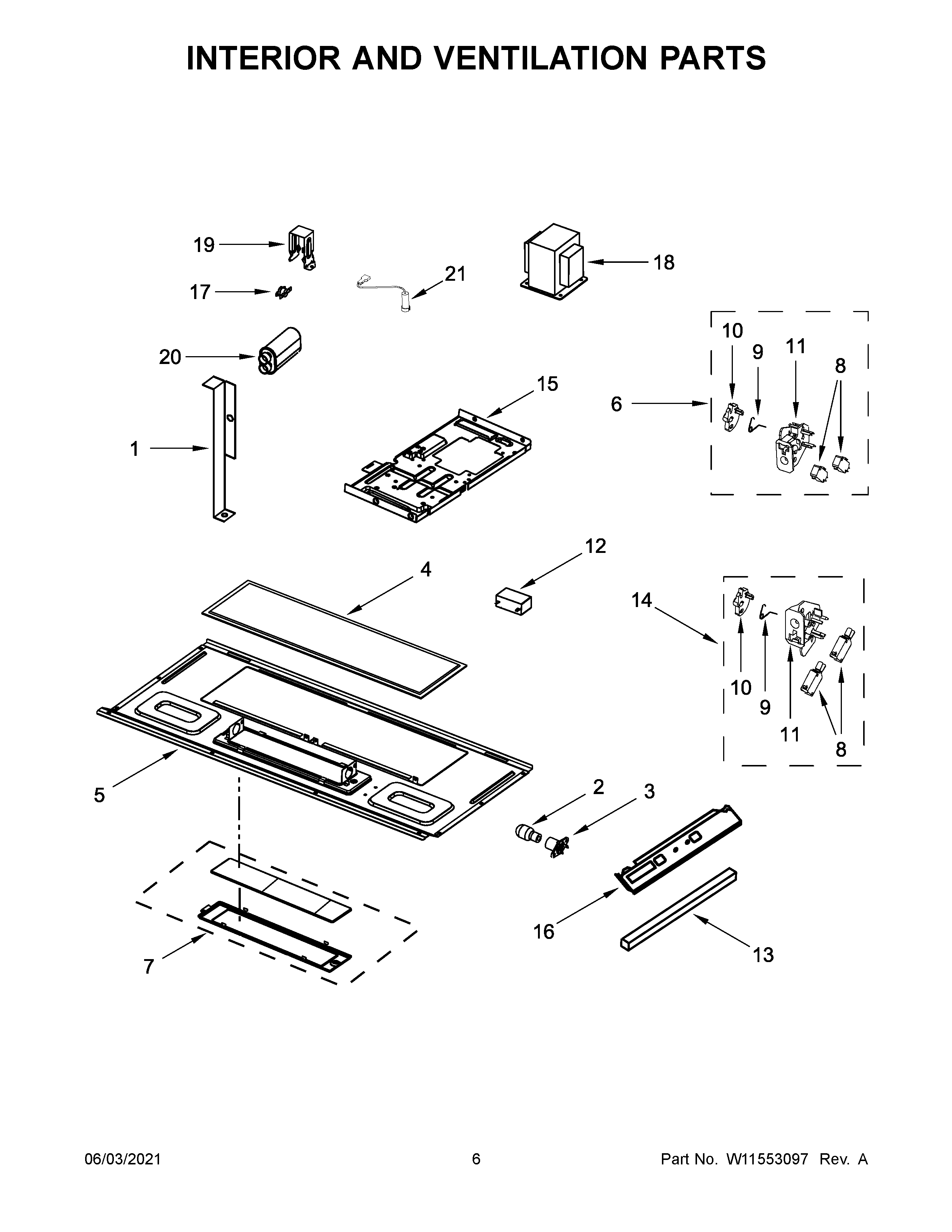

AMV2307PFW7 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1W10313275 Whirlpool Microwave Support Bracket
28206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3W10210871 Whirlpool Microwave Lamp Housing
4W10208631A Whirlpool Microwave Grease Filter
5W10245196 Whirlpool Microwave Base
6W11551558 Whirlpool Microwave Upper Interlock Assembly TITAN187
7COVR-LIGHT
8CABINET (NOT A SERVICEABLE PART)
9W10156812 Whirlpool Spring
10W10562613 Whirlpool Microwave Interlock Cam Assembly
11AWPW10156813 Whirlpool Microwave Bottom Interlock Support
11WP8206419 Whirlpool Microwave Top Interlock Support
12W11405832 Whirlpool Microwave Capacitor
13W10571179 Whirlpool Cushion
14LOWER INTERLOCK ASSY
15W11520831 Whirlpool Base
16SUPPORT, NTC
17W10269232 Whirlpool Microwave Thermostat Fix
18W11545871 Whirlpool Microwave Transformer
19W10532063 Whirlpool Microwave Bracket
20WPW10574736 Whirlpool Microwave MG Capacitor
21W11256462 Whirlpool Microwave Diode
