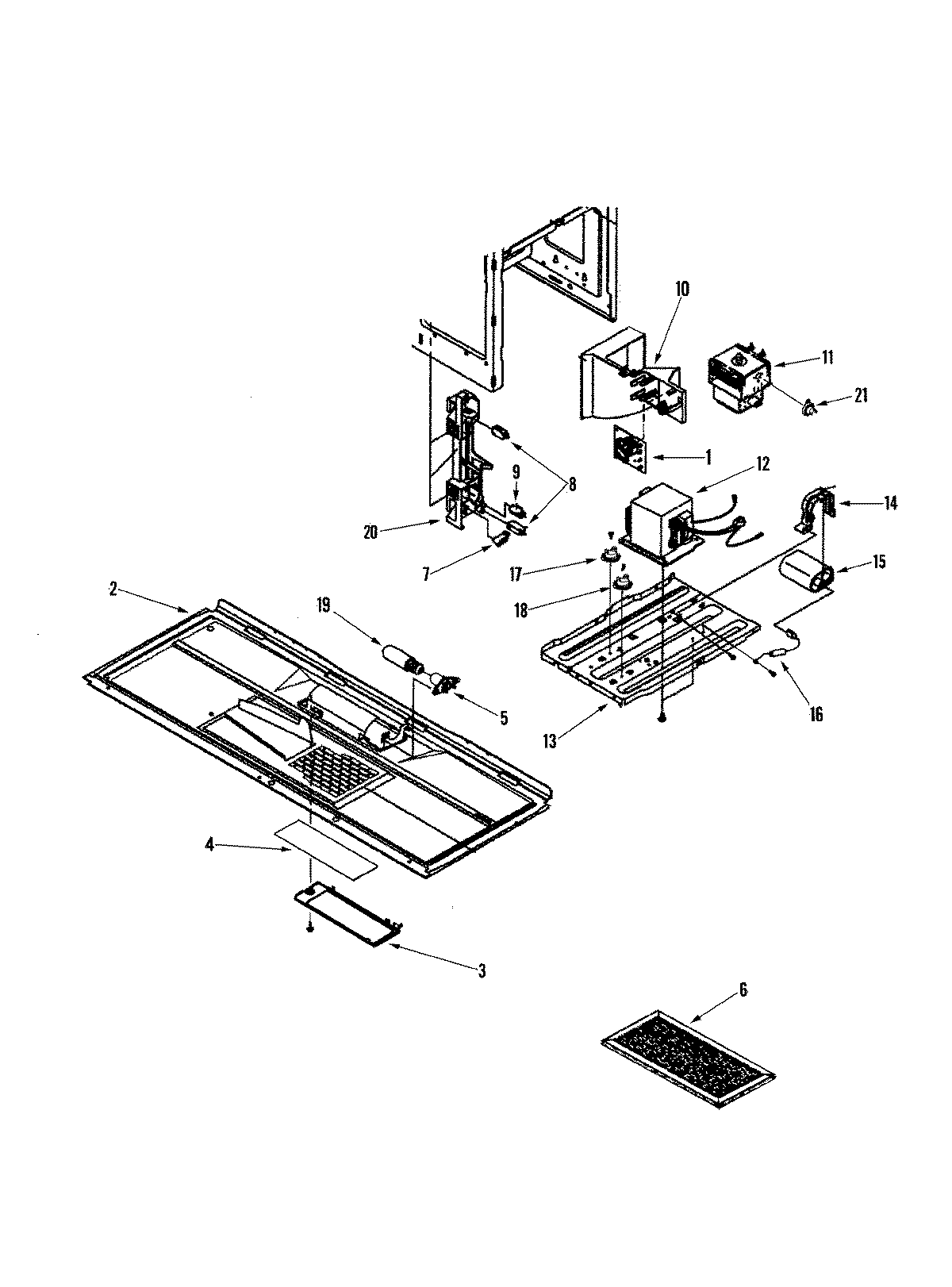

AMV5164BAS 01 – BASE/INTERNAL CONTROLS

Products

Position	Product
1	DE96-00400A Samsung Microwave Oven Noise Filter Assembly
2	MAY DE61-00748B
3	COVER-COOKTOP LAMP
4	DE67-40063A Samsung Microwave Oven Cooktop Lamp Light Bulb Glass Cover
5	HOLDER-LAMP
6	DE63-00196A Samsung Aluminum Air Filter
7	DE66-90106B Samsung Washer Lower Lever Switch Ball Bearing
8	WP3405-001034 Whirlpool Microwave Switch
9	MAY 3405-001033
10	GUIDE-AIR(A)
11	WPW10126786 Whirlpool Microwave Magnetron
12	DE26-00124A Samsung Range Microwave Oven H/V Transformer
13	MAY DE96-00415E
14	BRACKET-HVC,MW8ROWC,SECC,T0.6,
15	2501-001035 Samsung Microwave C-Oil High Voltage Capacitor
16	DE91-70063D Samsung Oven Microwave High Voltage Diode
17	DE47-20034A Samsung Microwave Thermostat
19	LAMP-INCANDESCENT
20	DE96-00414A Samsung Microwave Latch Body Assembly
