AMV5164BAW 02 – BODY/CAVITY/BLOWER MOTOR

AMV5164BAW 02 – BODY/CAVITY/BLOWER MOTOR

Written by

in

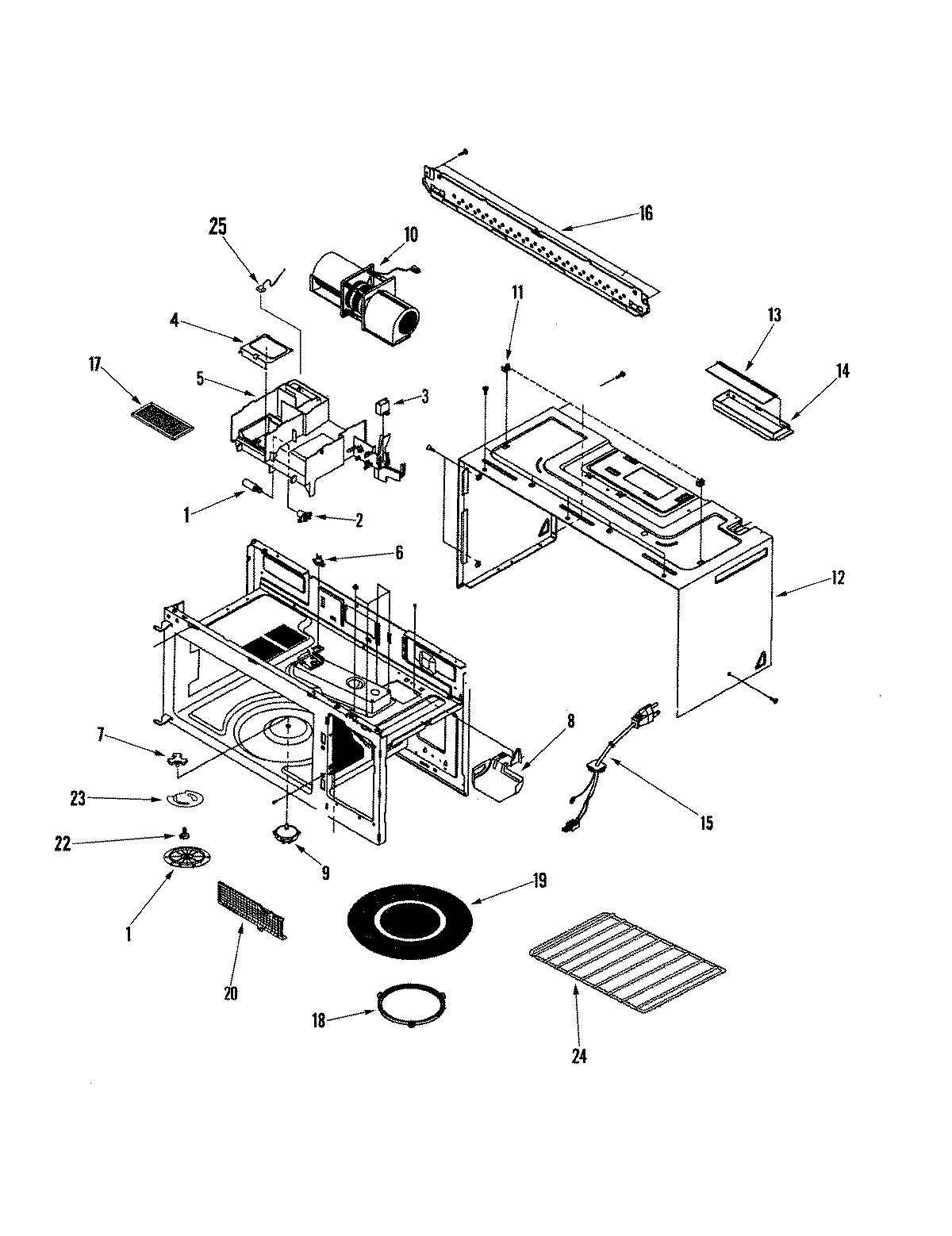

AMV5164BAW 02 – BODY/CAVITY/BLOWER MOTOR

Products

PositionProduct
1LAMP-INCANDESCENT
2HOLDER-LAMP
3MAY DE59-50002A
4BRACKET DUCT UPPER
5MAY W10254201
5ASY DUCT-UPPER
6DE47-20007A Samsung Microwave Oven Thermostat
7DE67-00180A Samsung Microwave Oven Tray Coupler
8GUIDE-AIR(B)
9DE31-10104D Samsung TURNTABLE DRIVE MOTOR
10Motor Ventilation
10DE31-00033C Samsung Motor Ventilation OS2
11DE92-90508A Samsung Microwave Mounting Nut Holder Assembly
13COVER-DAMPER
14MAY DE72-40022A
15DE96-00218A Samsung Assembly Power Cord
16DE70-00561A Samsung Microwave Mounting Plate Bracket
17FILTER-CHARCOAL
19DE74-20015G Samsung Glass Cooking Tray
20COVER-FRONT
21MAY DE66-20095B
21COVER-STIRRER
22HOLDER-STIRRED
23BLADE STIRRER
24DE75-00051A Samsung Wire Rack
24DE61-00375A Samsung Holder Rack
25MAY DE61-90111A
25ASSY-SENSOR HUMIDITY,SMH7175WE
25WIRE HARNESS-S
25SENSOR, GAS
