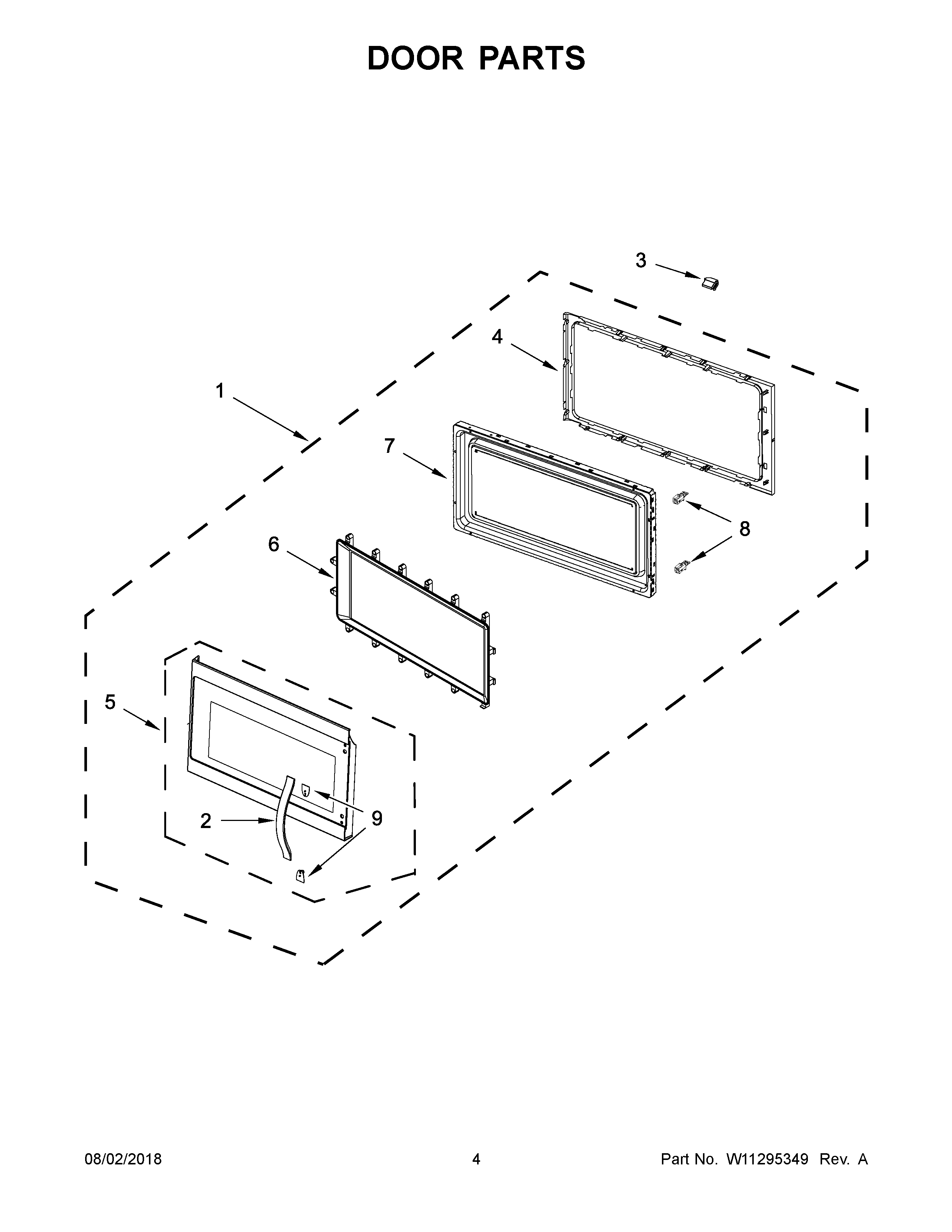

AMV6502REB5 03 – DOOR PARTS

Products

PositionProduct
1DOOR, COMPLETE (WHITE)
1ADOOR, COMPLETE (BLACK)
1BMAY W10893440
2MAY W10445124
2AMAY W10445138
2BHANDLE (STAINLESS)
3ASTOPPER, DOOR
3STOPPER, DOOR (FOR WHITE MODELS)
4FRAME, INNER (FOR WHITE MODELS)
4AFRAME, INNER (FOR BLACK MODELS)
5ASSEMBLY, DOOR FRAME (WHITE)
5BASSEMBLY, DOOR FRAME (STAINLESS)
5AASSEMBLY, DOOR FRAME (BLACK)
6PLATE, STEAM PROTECTION (FOR WHITE MODELS)
6APLATE, STEAM PROTECTION
7FOIL, DOOR (FOR WHITE MODELS)
7AFOIL, DOOR
8HOOK, DOOR
9MAY W10473991
