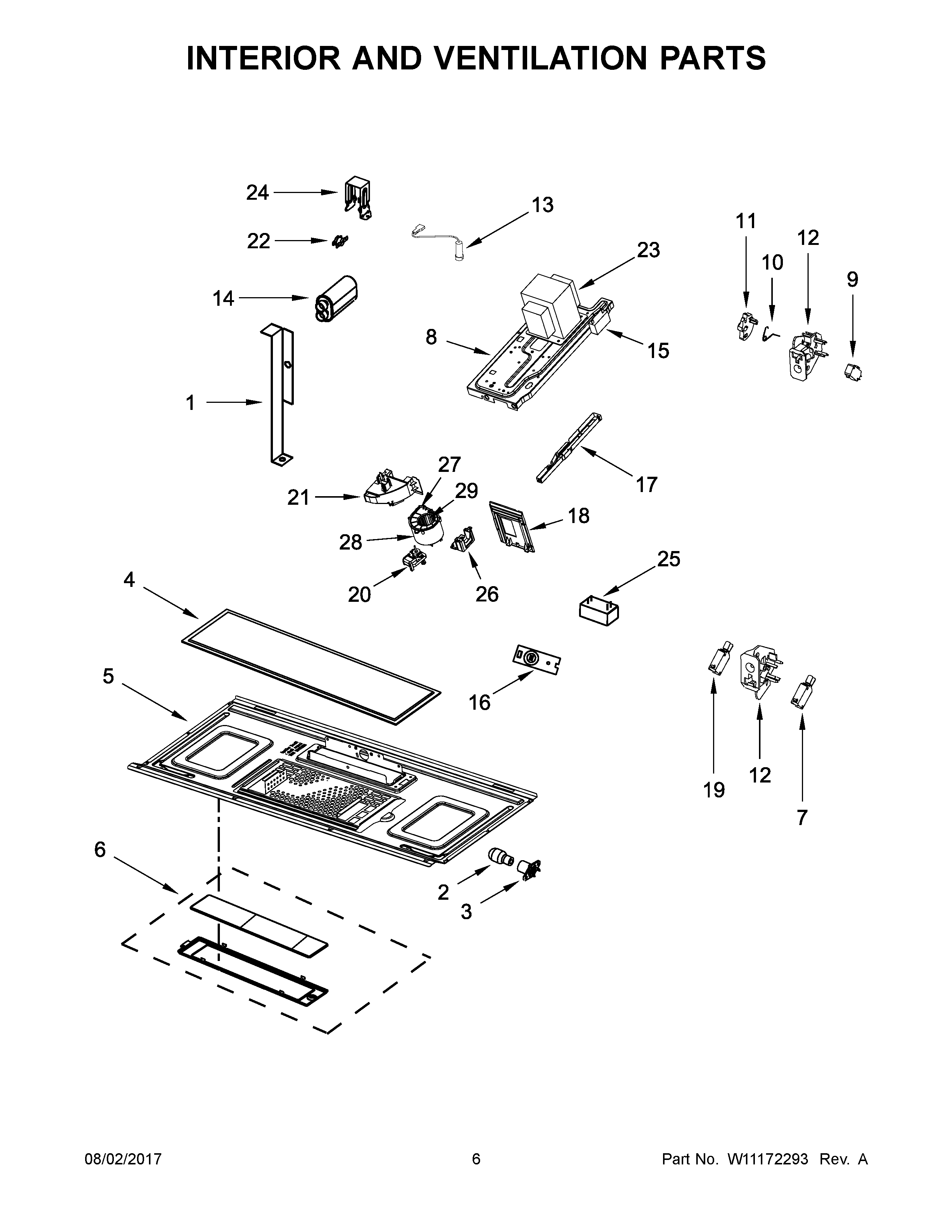

AMV6502RES3 04 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	BRACKET, TOP CAVITY
2	MAY 8206232
3	MAY W10210871
4	MAY W10208631
5	PLATE, BOTTOM
6	ASSEMBLY, LAMP GLASS AND HOLDER
7	SWITCH, MICRO V15T16-CC200
8	CHASSIS
9	SWITCH, MICRO V15T16-CP200
10	MAY W10156812
11	MAY W10156811
12	MAY 8206419
12A	MAY W10156813
13	MAY W10575765
14	CAPACITOR, HIGH VOLTAGE
15	MAY W10605897
16	MAY W10536989
17	MAY W10540718
18	DEFLECTOR, AIR
19	SWITCH, MICRO V15T16-CZ200
20	MAY W10536556
21	AIR GUIDE, MAGNETRON
22	THERMOSTAT, MAGNETRON
23	TRANSFORMER, HIGH VOLTAGE
24	BRACKET, CAPACITOR
25	MAY W10568805
26	MAY W10533480
27	MAY W10533502
28	MAY W10533501
29	MAY W10533503
