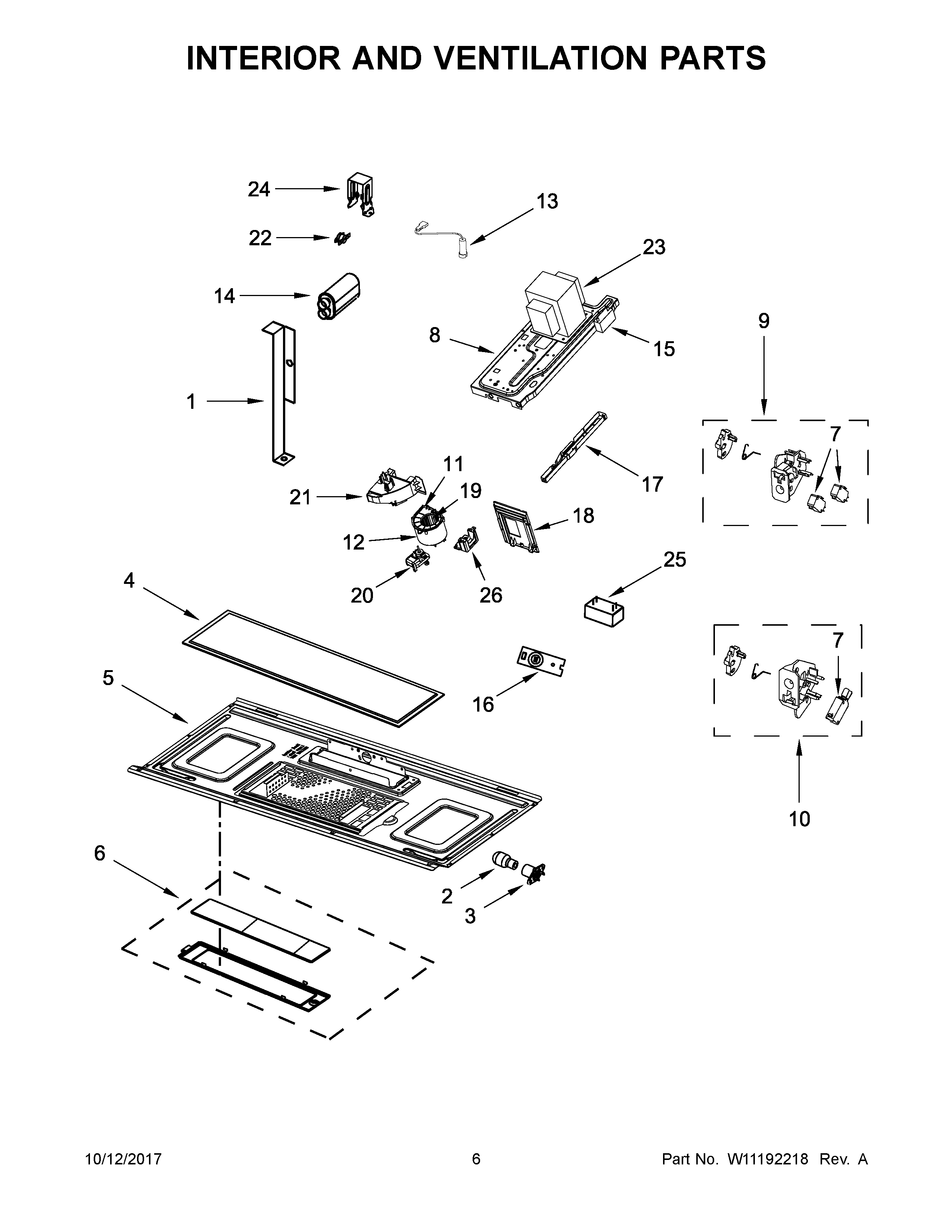

AMV6502RES4 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1BRACKET, TOP CAVITY
2MAY 8206232
3MAY W10210871
4MAY W10208631
5PLATE, BOTTOM
6ASSEMBLY, LAMP GLASS AND HOLDER
7LINER (NOT A SERVICEABLE PART)
8CHASSIS
9ASSEMBLY, UPPER INTERLOCK (INCLUDES SWITCHES)
10ASSEMBLY, LOWER INTERLOCK (INCLUDES SWITCHES)
11MAY W10533502
12MAY W10533501
13MAY W10575765
14CAPACITOR, HIGH VOLTAGE
15MAY W10605897
16MAY W10536989
17MAY W10540718
18DEFLECTOR, AIR
19MAY W10533503
20MAY W10536556
21AIR GUIDE, MAGNETRON
22THERMOSTAT, MAGNETRON
23TRANSFORMER, HIGH VOLTAGE
24BRACKET, CAPACITOR
25RESISTOR, CEMENT
26MAY W10533480
