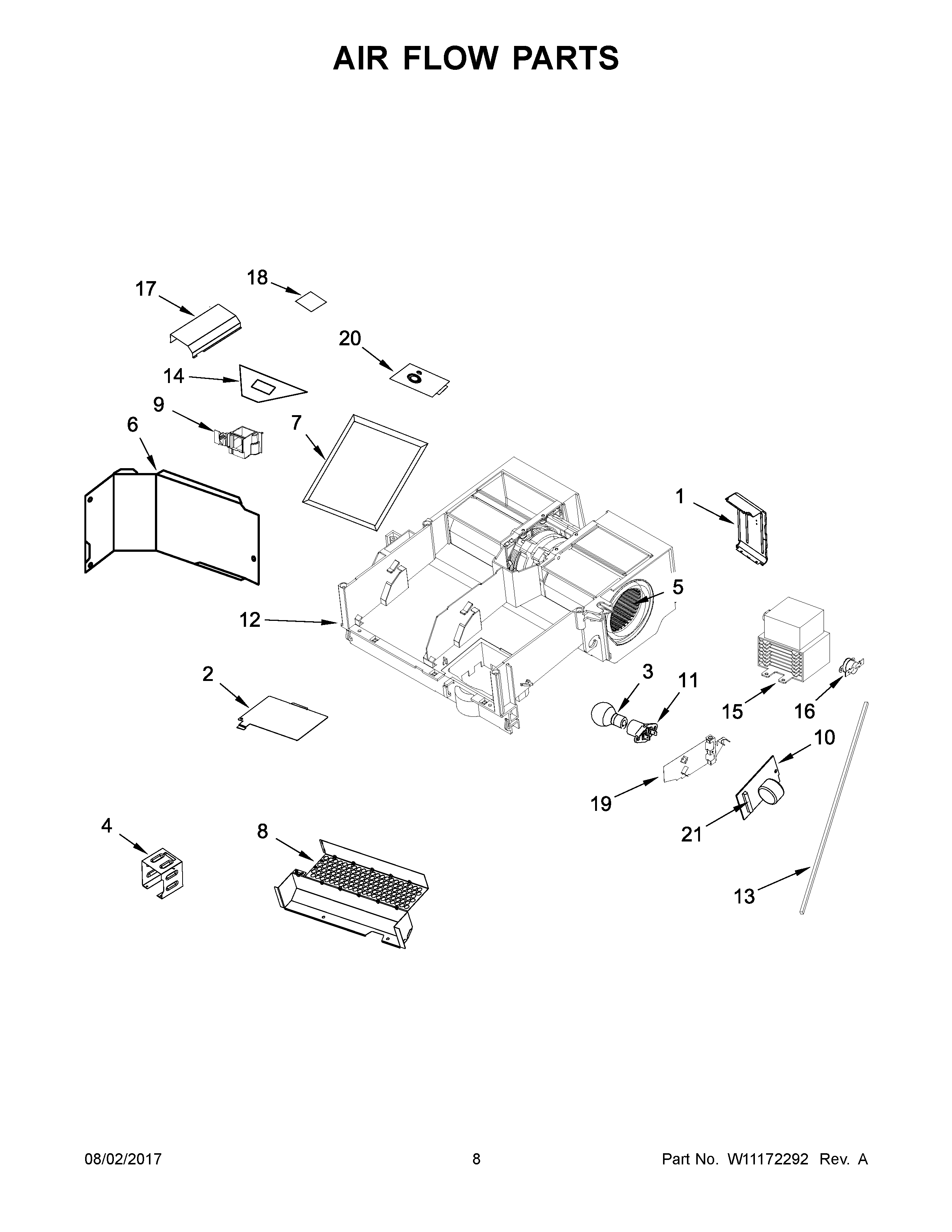

AMV6502REW2 05 – AIR FLOW PARTS

Products

Position	Product
1	DEFLECTOR, AIR
2	MAY 8206382
3	MAY 4393681
4	MAY W10556824
5	MOTOR, FAN
6	PLATE, AIR DEFLECTOR
7	MAY 8206230
8	MAY W10629803
9	OUTLET, CAVITY (FRONT) (BLACK AND STAINLESS MODELS)
10	MAY W10531156
11	MAY W10210878
12	MAY W10533096
13	SEAL
14	SOCKET, MOTOR WIRE
15	MAGNETRON
16	THERMOSTAT, CAVITY 125/-35 CELCIUS
17	OUTLET, CAVITY (BACK)
18	MAY W10531724
19	COVER, DUCT (RIGHT)
20	SENSOR, HUMIDITY
21	MAY W10138793
