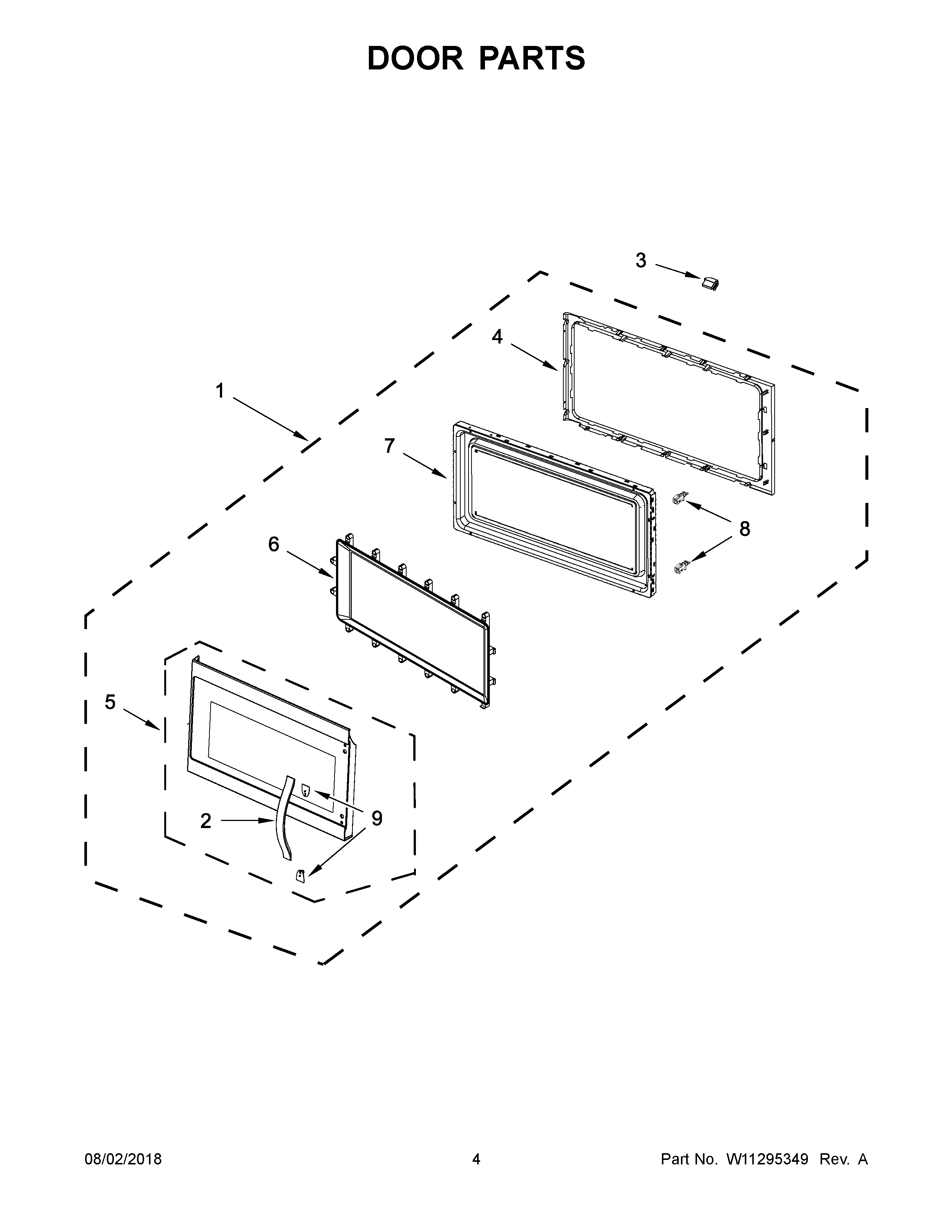

AMV6502REW5 03 – DOOR PARTSadmin2025-04-26T08:55:57+00:00AMV6502REW5 03 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | DOOR, COMPLETE (WHITE) |
| 1A | DOOR, COMPLETE (BLACK) |
| 1B | MAY W10893440 |
| 2 | MAY W10445124 |
| 2A | MAY W10445138 |
| 2B | HANDLE (STAINLESS) |
| 3A | STOPPER, DOOR |
| 3 | STOPPER, DOOR (FOR WHITE MODELS) |
| 4 | FRAME, INNER (FOR WHITE MODELS) |
| 4A | FRAME, INNER (FOR BLACK MODELS) |
| 5 | ASSEMBLY, DOOR FRAME (WHITE) |
| 5B | ASSEMBLY, DOOR FRAME (STAINLESS) |
| 5A | ASSEMBLY, DOOR FRAME (BLACK) |
| 6 | PLATE, STEAM PROTECTION (FOR WHITE MODELS) |
| 6A | PLATE, STEAM PROTECTION |
| 7 | FOIL, DOOR (FOR WHITE MODELS) |
| 7A | FOIL, DOOR |
| 8 | HOOK, DOOR |
| 9 | MAY W10473991 |
