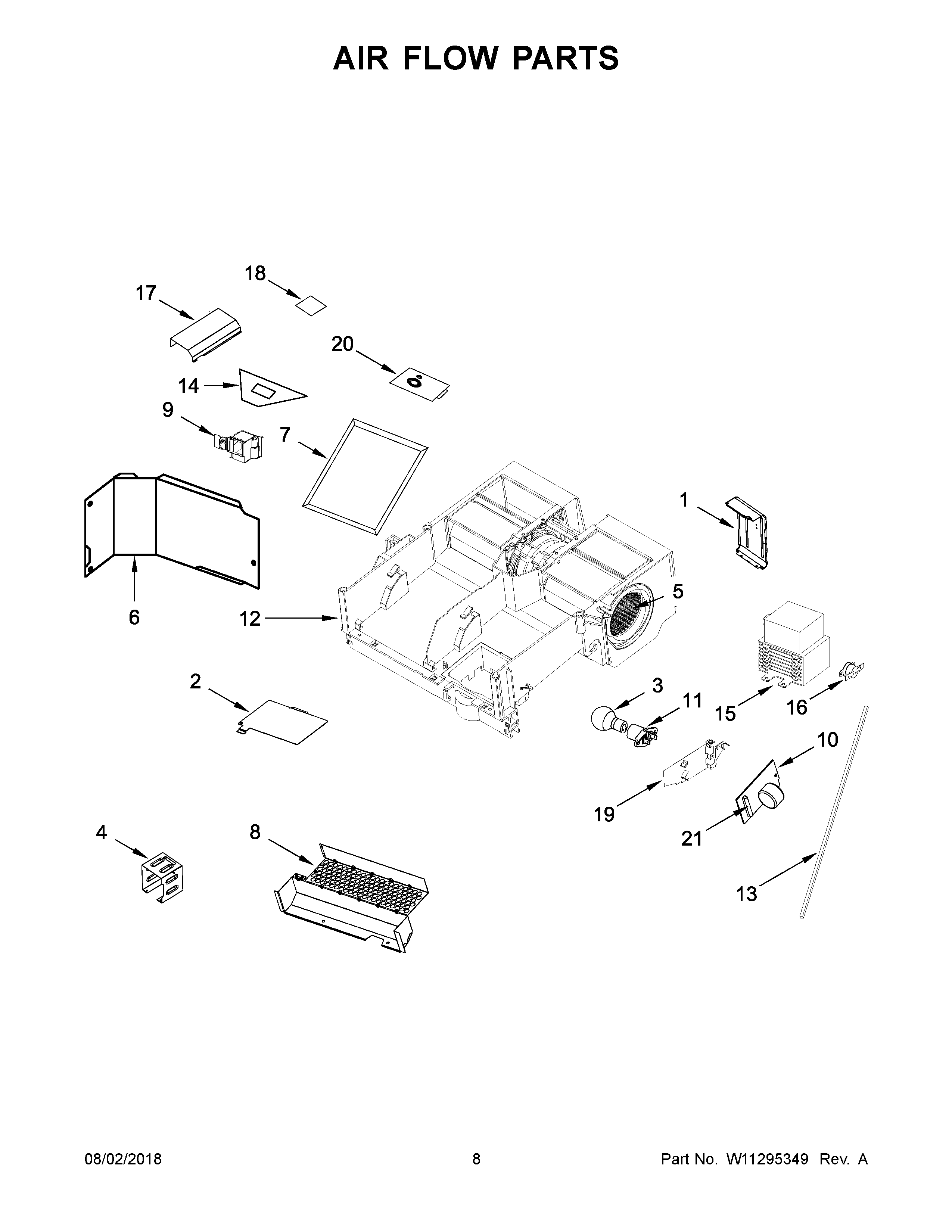

AMV6502REW5 05 – AIR FLOW PARTS

Products

Position	Product
1	DEFLECTOR, AIR
2	MAY 8206382
3	MAY 4393681
4	MAY W10556824
5	MOTOR, FAN
6	PLATE, AIR DEFLECTOR
7	MAY 8206230
8	MAY W10629803
9	OUTLET, CAVITY (FRONT) (BLACK AND STAINLESS MODELS)
10	MAY W10531156
11	MAY W10210878
12	MAY W10533096
13	SEAL
14	SOCKET, MOTOR WIRE
15	MAGNETRON
16	THERMOSTAT, MAGNETRON
17	OUTLET, CAVITY (BACK)
18	MAY W10531724
19	COVER, DUCT (RIGHT)
20	SENSOR, HUMIDITY
21	MAY W10138793
