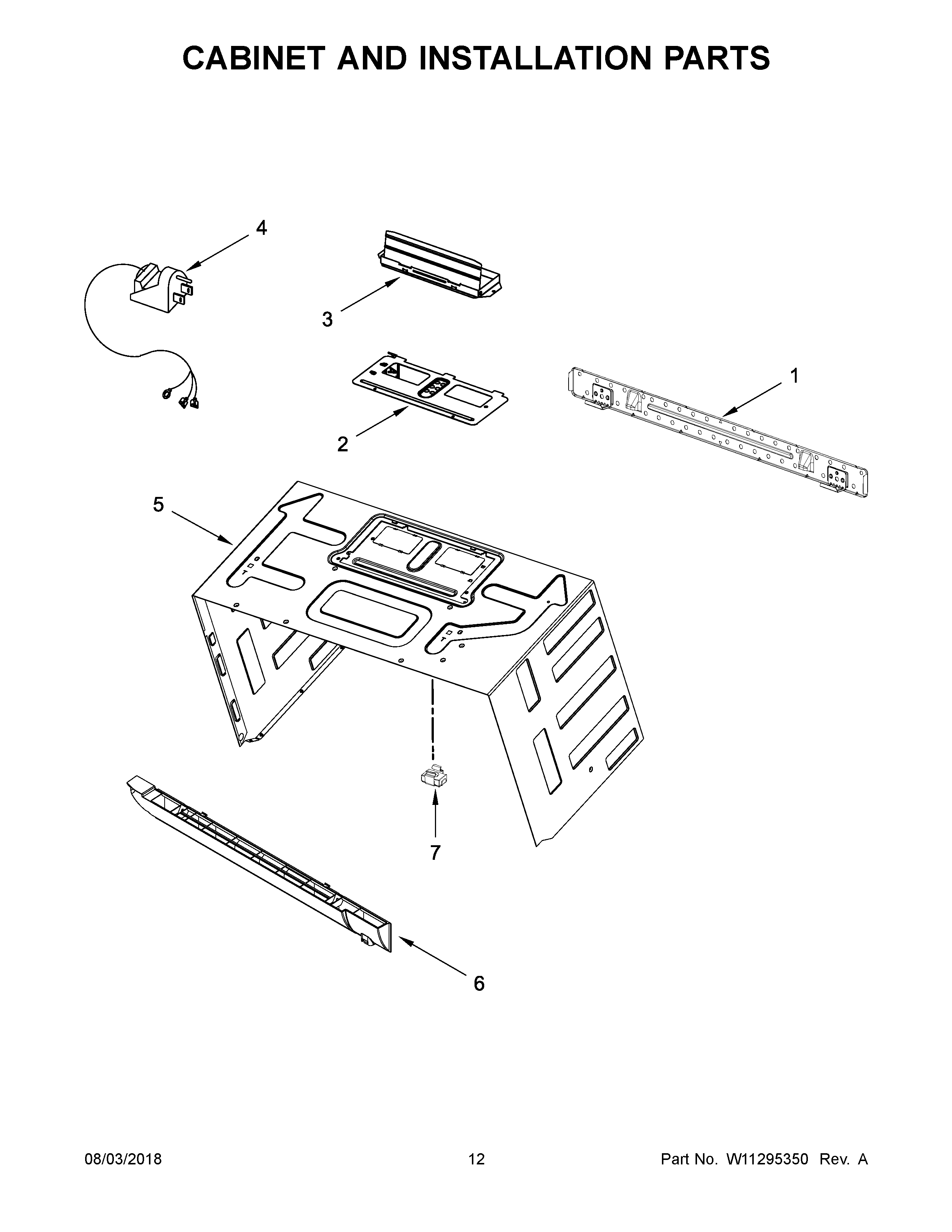

AMV6502REW6 07 – CABINET AND INSTALLATION PARTS

AMV6502REW6 07 – CABINET AND INSTALLATION PARTS

Written by

in

AMV6502REW6 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIMISCELLANEOUS PARTS, HARNESS, MAIN
NIMISCELLANEOUS PARTS, HARNESS, HOOD LAMP AND TURNTABLE MOTOR
NIMISCELLANEOUS PARTS, CABLE, HUMIDITY SENSOR
NIMISCELLANEOUS PARTS, HARDWARE, INSTALLATION
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH)
NIMISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NIMISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER
1PLATE, MOUNTING
2COVER, FAN MOTOR
3DAMPER
4CORD-POWER
5ACASE, OUTER (BLACK)
5CASE, OUTER (WHITE)
6AGRILLE, VENT (BLACK)
6GRILLE, VENT (WHITE)
7ASSEMBLY, MOUNTING NUT
