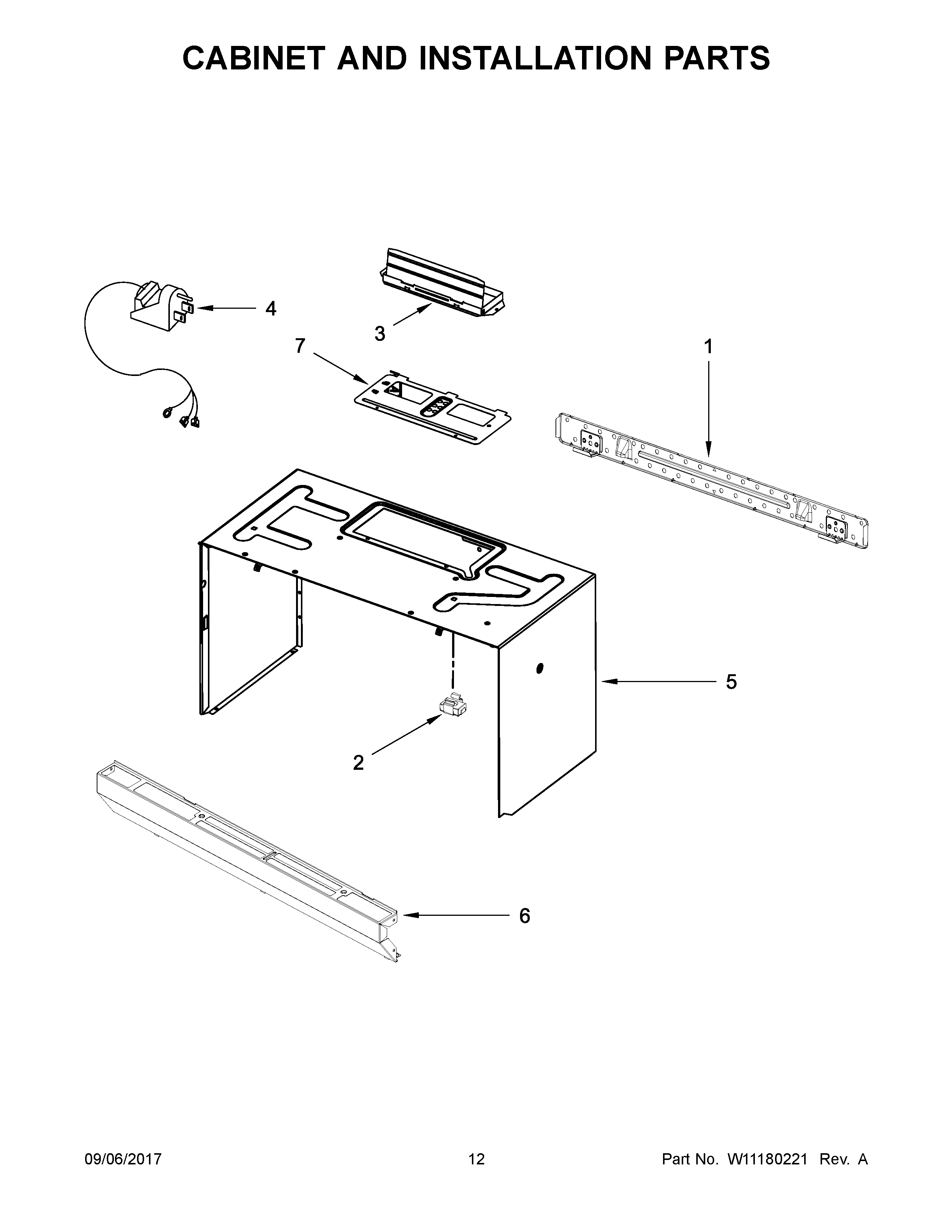

AMV6507RGS0 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIMAY W10814463
NIMISCELLANEOUS PARTS, CABLE, HUMIDITY SENSOR
NIMISCELLANEOUS PARTS, HARNESS, LAMP AND TURNTABLE
NIMISCELLANEOUS PARTS, HARNESS, MAGNETRON TO HIGH VOLTAGE TRANSFORMER
NIMISCELLANEOUS PARTS, HARDWARE, INSTALLATION
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH)
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER
NIMISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NIMISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
1PLATE, MOUNTING
2ASSEMBLY, MOUNTING NUT
3DAMPER
4CORD-POWER
5CASE, OUTER (BLACK)
6GRILLE, VENT (BLACK)
7COVER, FAN MOTOR
