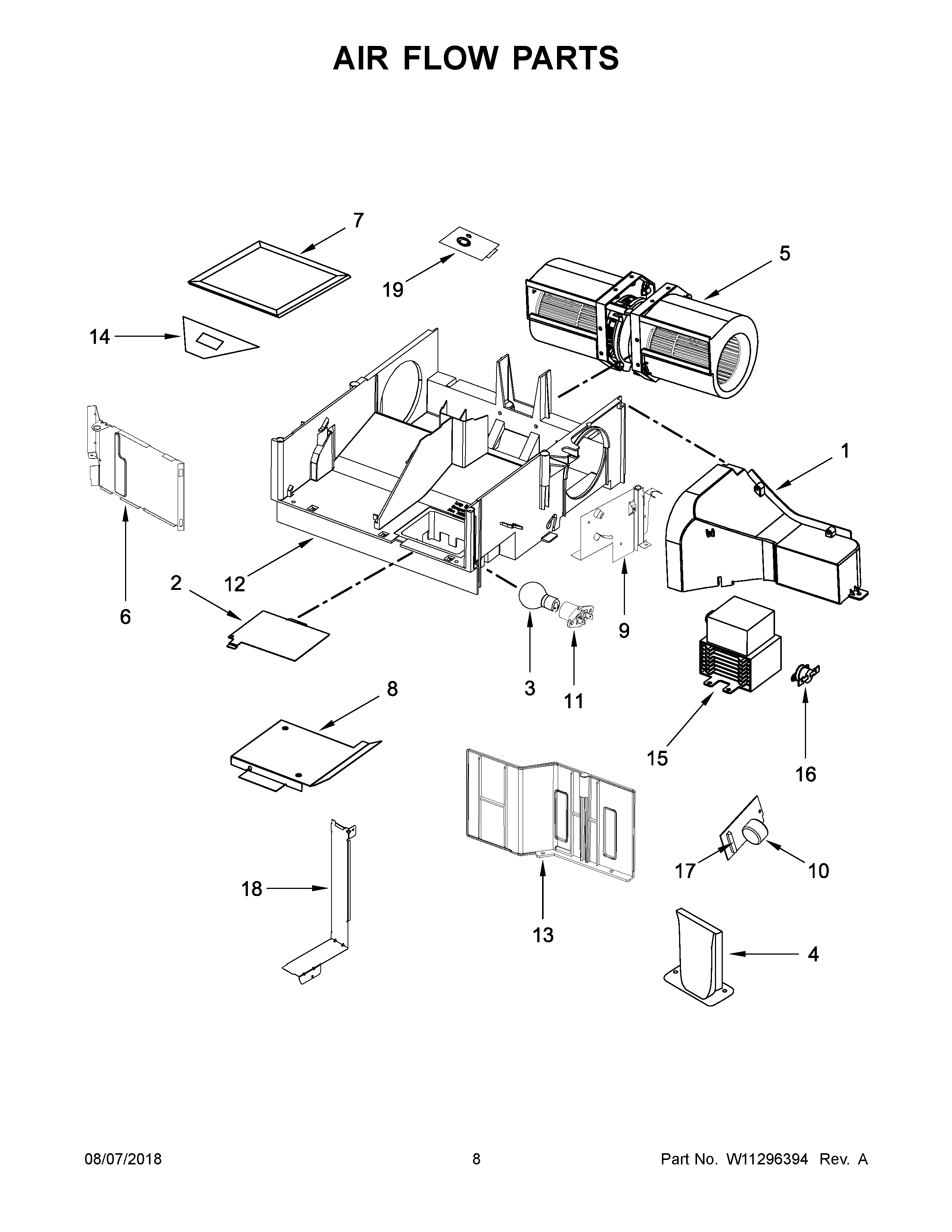

AMV6507RGS3 05 – AIR FLOW PARTS

Products

PositionProduct
1DEFLECTOR, AIR
2MAY 8206382
3MAY 4393681
4PLATE, WATERPROOF
5MOTOR, HOOD FAN
6PLATE, AIR GUIDE SEALING
7FILTER, CHARCOAL
8GUIDE, AIR
9COVER, RIGHT DUCT
10MAY W10531156
11MAY W10210878
12BASEPLATE, AIR GUIDE
13SHIELD, FINGER
14SOCKET, MOTOR WIRE
15MAGNETRON
16THERMOSTAT, MAGNETRON
17MAY W10138793
18COVER, AIRGUIDE INLET
19SENSOR, HUMIDITY
