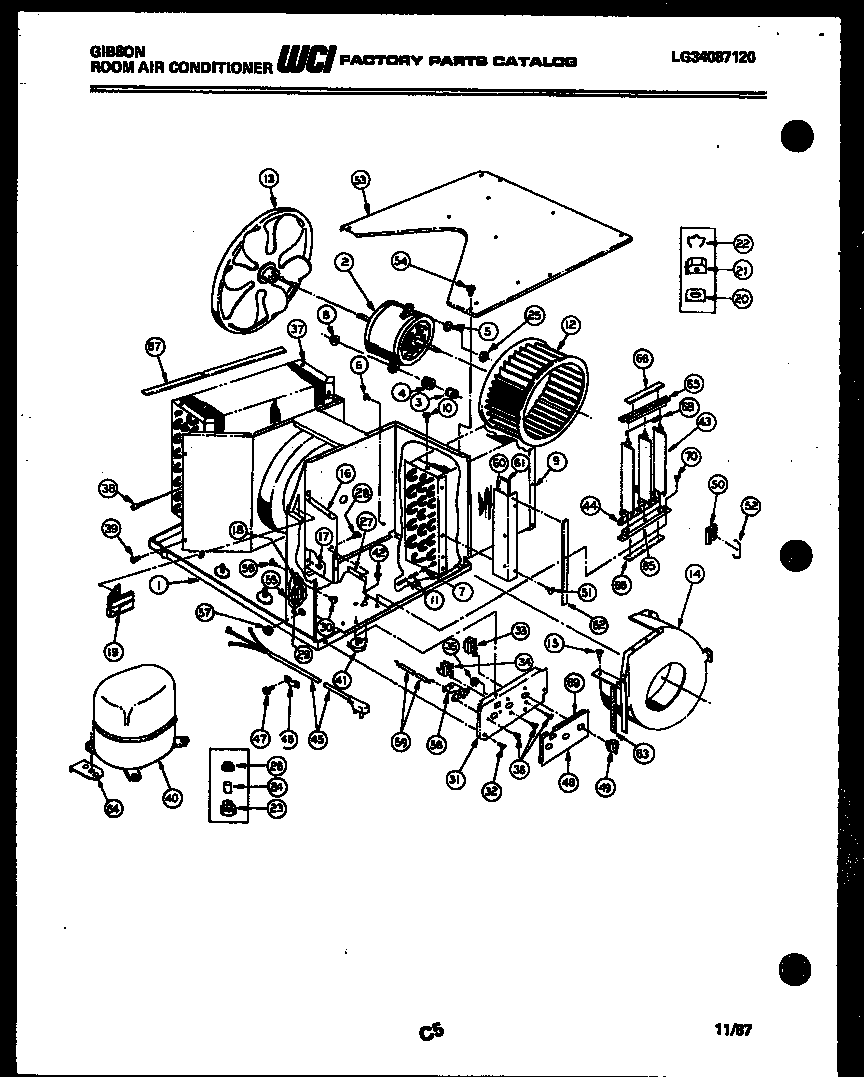

AO23E6RRBC 03 – ELECTRICAL AND AIR HANDLING PARTS

Products

Position	Product
1	WCI G521156
2	WCI G520306
3	WCI G119302
4	WCI G119108
5	WCI G99148
6	SCRW-NO. 8 X 3/8 (4)
7	TUBE – CONNECTOR EVAP.
8	NUT-MOTOR MTG ( 3 )
9	WCI G522858
11	WCI G144044-32
12	WCI G512732
13	WCI G512734
14	WCI G512446-01
15	SCREW-STRAP
16	WCI G515446
18	STRAP, CAPACITOR
19	WCI G501587
20	WCI G517411
21	COVER – TERMINAL
22	STRAP-BALE
23	GROM.-COMPR. (3)
24	SLEEVE-COMPR. (3)
25	NUT – MOTOR MTG.
26	NUT-COMPR. MTG. (2)
27	WCI G520310
29	WCI G513068-42
31	WCI G512747
32	WCI G521208
33	SWITCH-ROTARY (NON-ILLUSTRATED)
34	WCI G520313
35	SWITCH-AIR SWEEP
36	SCREW (6)
37	WCI G157609
38	STRAINER-FILTER
40	WCI G517396-04
41	WCI G149683-12
42	SCREW – MOTOR TO DUCT (2)
43	LOUVR-AIR SWEEP
44	WCI G517130
45	WCI G506345-61
46	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
47	SCREW-CLAMP
48	WCI G512762
49	KNOB-CNTL
50	WCI G519968
51	WCI G516352
53	WCI G512455
54	SCREW (19)
55	WCI G520312
56	154419403 Frigidaire Dishwasher Screw
57	BUSHING, SNAP
58	WCI G512749
59	WCI G516140
60	WCI G512450
61	WCI G149308-31
62	WCI G149308-30
63	WCI G149308-29
64	PLATE-PROTECTOR-COMP.
65	BRACKET-LOUVR (2)
66	WCI G521134
67	WCI G517860
68	WCI G517576
69	WCI G512761
