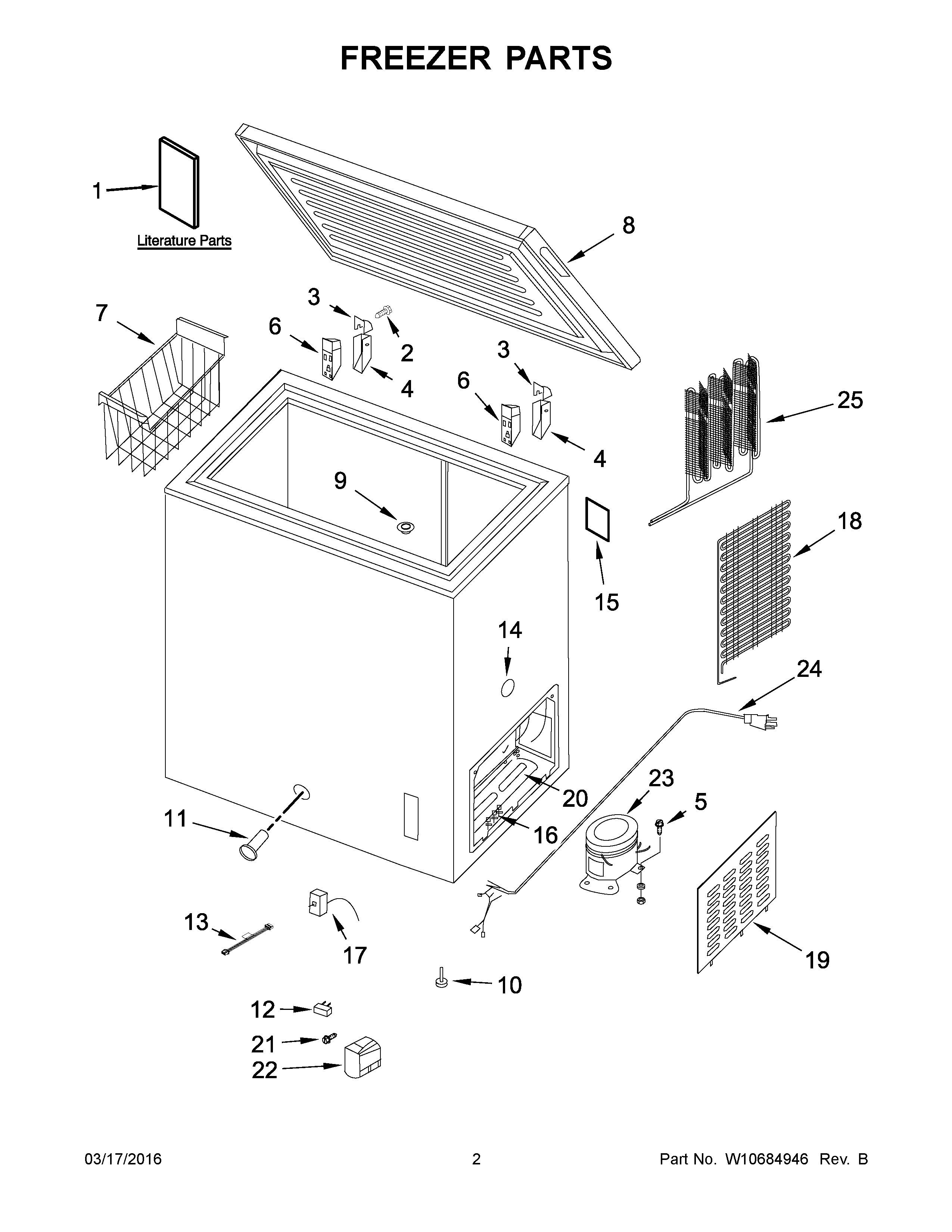

AQC0701DRW00 02 – FREEZER PARTS

Products

Position	Product
1	USE & CARE GUIDE
1A	MAY W10683799
2	MAY W10668519
3	MAY W10668524
4	MAY W10668525
5	MAY W10668518
6	MAY W10668545
7	BASKET
8	DOOR (INCLUDES GASKET, NOT SERVICED SEPARATE)
9	MAY W10668538
10	LEVELING FOOT
11	DRAIN PLUG
12A	MAY W10668537
12	LIGHT, INDICATOR (GREEN LIGHT)
13	MAY W10668533
14	COVER, HOLE
15	COVER, WIRE
16	MAY W10668529
17	MAY W10668530
18	LINER (NOT A SERVICEABLE PART)
19	ACCESS PANEL
20	BASE, COMPRESSOR
21	MAY W10668531
22	COVER, THERMOSTAT
23	MAY W10668541
24	POWER CORD
25	MAY W10668548
