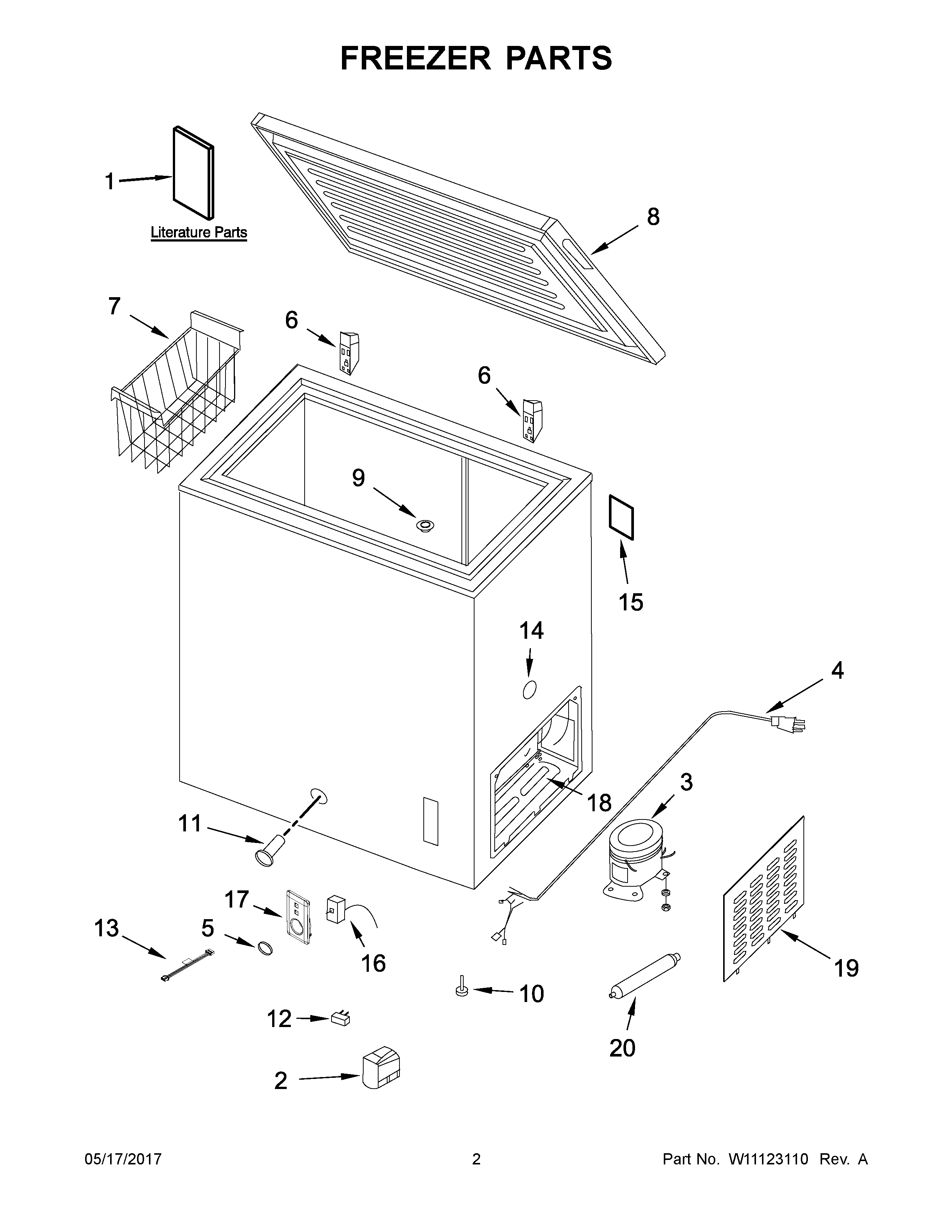

AQC0701GRW00 02 – FREEZER PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W11123042
1A	MAY W10725607
1	USE & CARE GUIDE
2	COVER, THERMOSTAT
4	POWER CORD
5	MAY W10668532
6	MAY W11123049
7	BASKET
8	DOOR (INCLUDES GASKET, NOT SERVICED SEPARATE)
9	DRAIN STOPPER
10	LEVELING FOOT
11	DRAIN PLUG
12	LIGHT, INDICATOR (GREEN LIGHT)
13	MAY W11123035
14	COVER, HOLE
15	COVER, WIRE
16	MAY W11123031
17	THERMOSTAT BOX
18	BASE, COMPRESSOR
19	ACCESS PANEL
