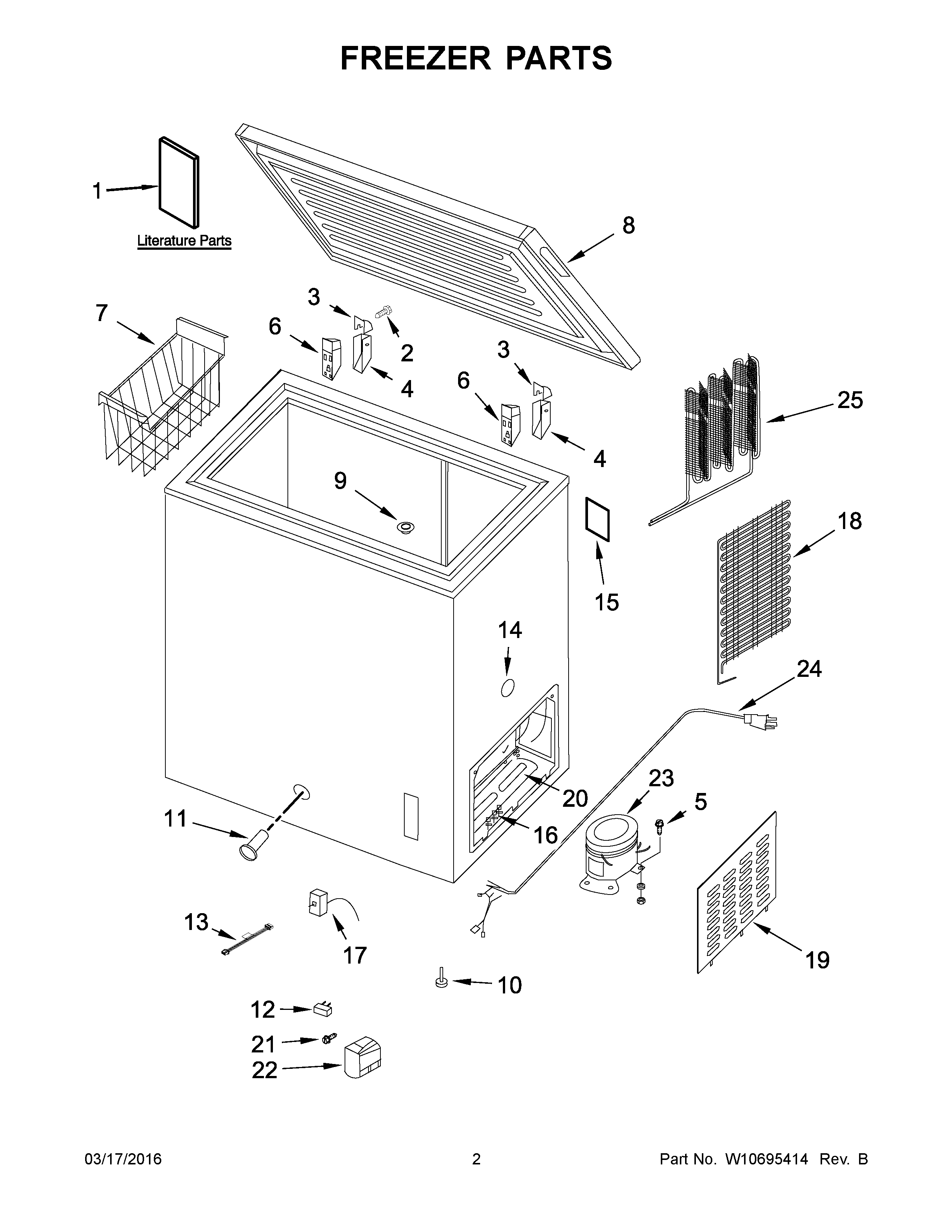

AQC0902DRW00 02 – FREEZER PARTS

Products

Position	Product
1A	ENERGY GUIDE
1	USE & CARE GUIDE
2	MAY W10668519
3	MAY W10668524
4	MAY W10696063
5	MAY W10668518
6	MAY W10668545
7	BASKET
8	DOOR (INCLUDES GASKET, NOT SERVICED SEPARATE)
9	DRAIN STOPPER
10	LEVELING FOOT
11	DRAIN PLUG
12	LIGHT, INDICATOR (GREEN LIGHT)
13	MAY W10668533
14	COVER, HOLE
15	COVER, WIRE
16	MAY W10668529
17	THERMOSTAT BOX
18	LINER (NOT A SERVICEABLE PART)
19	ACCESS PANEL
20	BASE, COMPRESSOR
21	MAY W10668531
22	COVER, THERMOSTAT
23	MAY W10696072
24	POWER CORD
25	MAY W10668548
