AQC0902LW 02 – CABINET PARTS

AQC0902LW 02 – CABINET PARTS

Written by

in

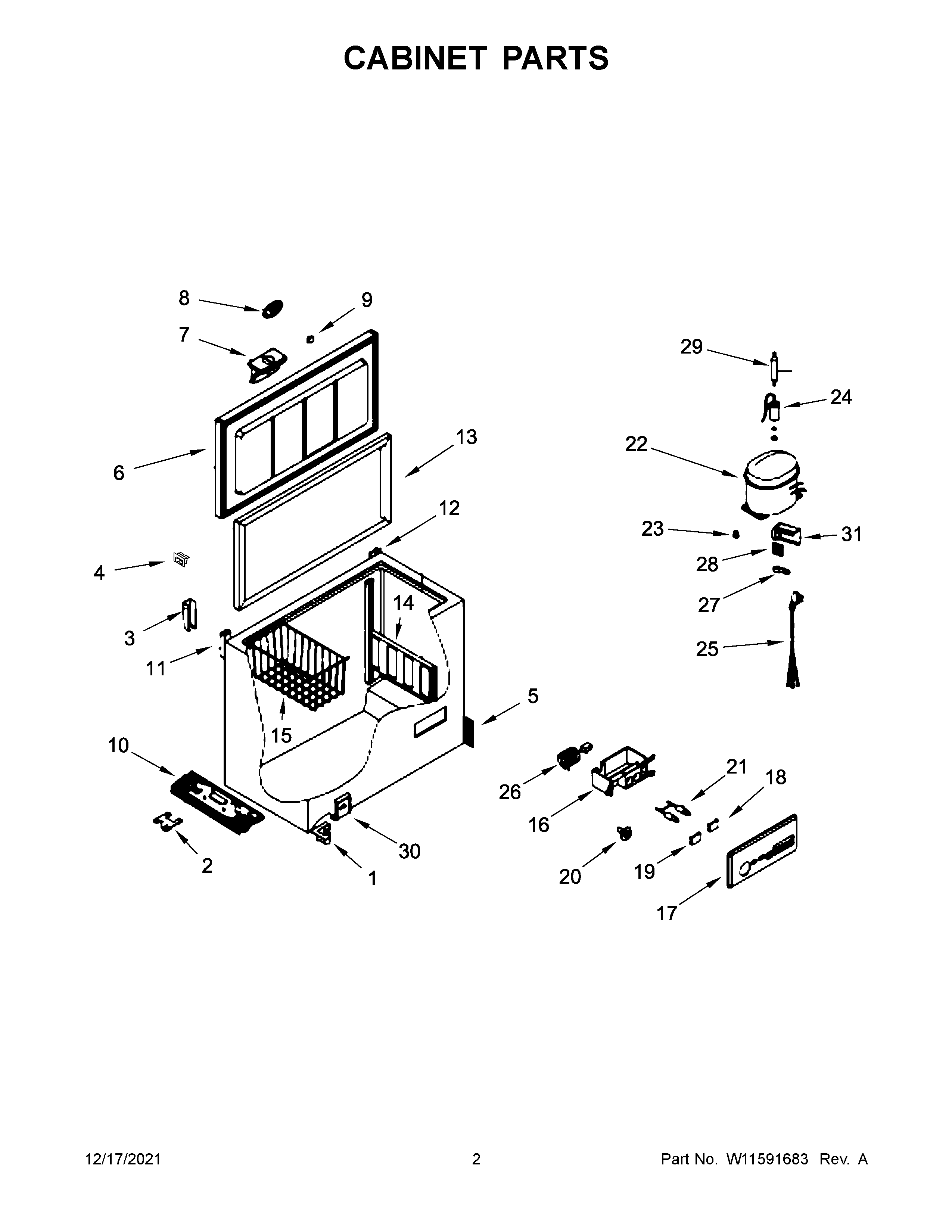

AQC0902LW 02 – CABINET PARTS

Products

PositionProduct
1W11591689 Whirlpool Lever Foot
2W11591957 Whirlpool Cabinet Roller
3W11591958 Whirlpool Cover
4W11591959 Whirlpool Cover Assembly
5W11591960 Whirlpool Unit Cover
6W11599963 Whirlpool Door Assembly
7W11591981 Whirlpool Handle Assembly
8W11428492 Whirlpool Refrigerator Nameplate
9W11591983 Whirlpool Handle Plug
10W11591985 Whirlpool Frame
11W11598108 Whirlpool Door Hinge
12W11598109 Whirlpool Door Hinge
13MAGNETIC SEAL
14W11592013 Whirlpool Separator Assembly
15W11597889 Whirlpool Basket
16W11592036 Whirlpool Control Box
17W11592037 Whirlpool Overlay
18LENS (RED)
19LENS (GREEN)
20W11592041 Whirlpool Thermostat Knob
21LAMP
22COMPRESSOR
23COMPRESSOR DAMPER
24CAPACITOR
25W11531505 Whirlpool Power Cord
26W11685637 Whirlpool Refrigerator Thermostat
27CORD RELIEF
28START DEVICE
29W11109499 Whirlpool Refrigerator Tube
30W11592064 Whirlpool Drain Plug
31CONNECTION COVER
