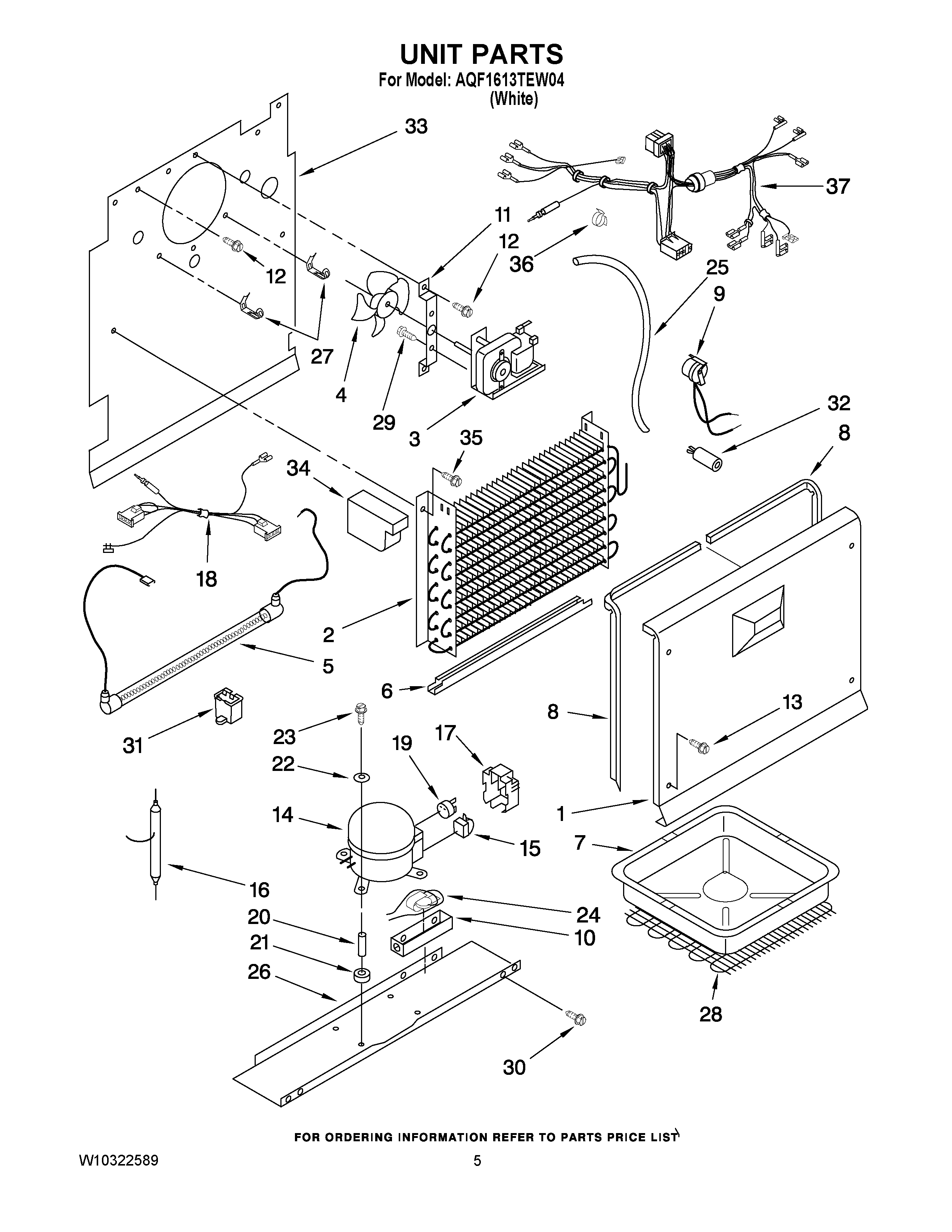

AQF1613TEW04 03 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
1	MAY 4390662
2	MAY 4357244
3	MAY 4390914
4	BLADE, FAN
5	MAY W10164625
6	MAY W10164624
7	Pan, Drain
8	MAY 4390663
8	MAY 4390664
9	MAY 8210253
10	MAY 4390708
11	MAY 4357129
12	MAY 4356943
13	MAY 4357243
14	COMPRESSOR (INCLUDES ITEMS 15,16,17,19 & 21)
15	MAY 4356738
16	MAY 4357299
17	MAY 4356777
18	MAY 8210426
19	MAY 4390896
20	MAY 4356846
21	COMPRESSOR, MOUNTING GROMMET
22	MAY 4356847
23	Bolt, Compressor
24	MAY W10164514
25	MAY 8210225
26	MAY W10260544
27	Clip, Thermostat
28	MAY 8210248
29	MAY 4356970
30	MAY 4357277
31	MAY 8210224
32	MAY 4357020
33	MAY 4357123
34	Block, Foam
35	MAY 4390821
36	CLIP
37	MAY 68001719
