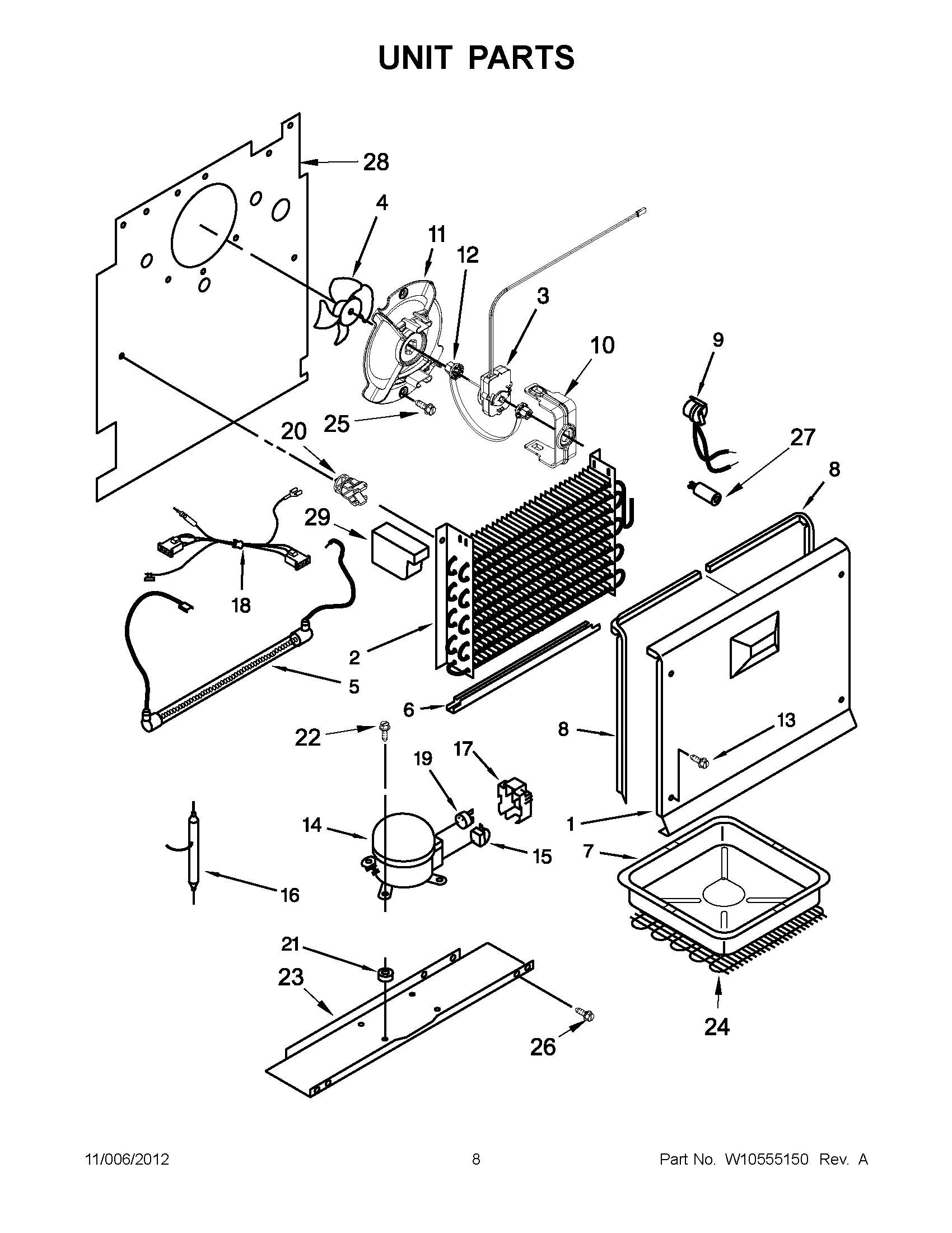

AQF1613TEW05 04 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10452370
2	MAY W10455861
3	MAY W10236142
4	Blade, Fan (Evaporator)
5	ASSEMBLY, HEATER HARNESS INCLUDES G87BIMETAL & DEFROST HEATER
6	MAY W10508692
7	MAY 4-82674-001
8	MAY 3-60180-002
8	MAY 3-60180-001
9	BI-METAL DEFROST
10	CLIP, EVAP. MOTOR
11	MAY W10457575
12	MAY W10150583
13	MAY W10451793
14	COMPRESSOR (INCLUDES ITEMS 15,16,17,19 & 21)
15	MAY W10466655
16	MAY W10459086
17	MAY W10462677
18	MAY W10507269
19	MAY 2-34286-038
20	MAY 10623002
21	MAY 13146462
22	MAY 2-82082-001
23	MAY W10470130
24	MAY W10451951
25	MAY 3-80732-004
26	MAY 3-24838-048
27	MAY 1-80275-101
28	MAY W10452115
29	MAY W10452121
