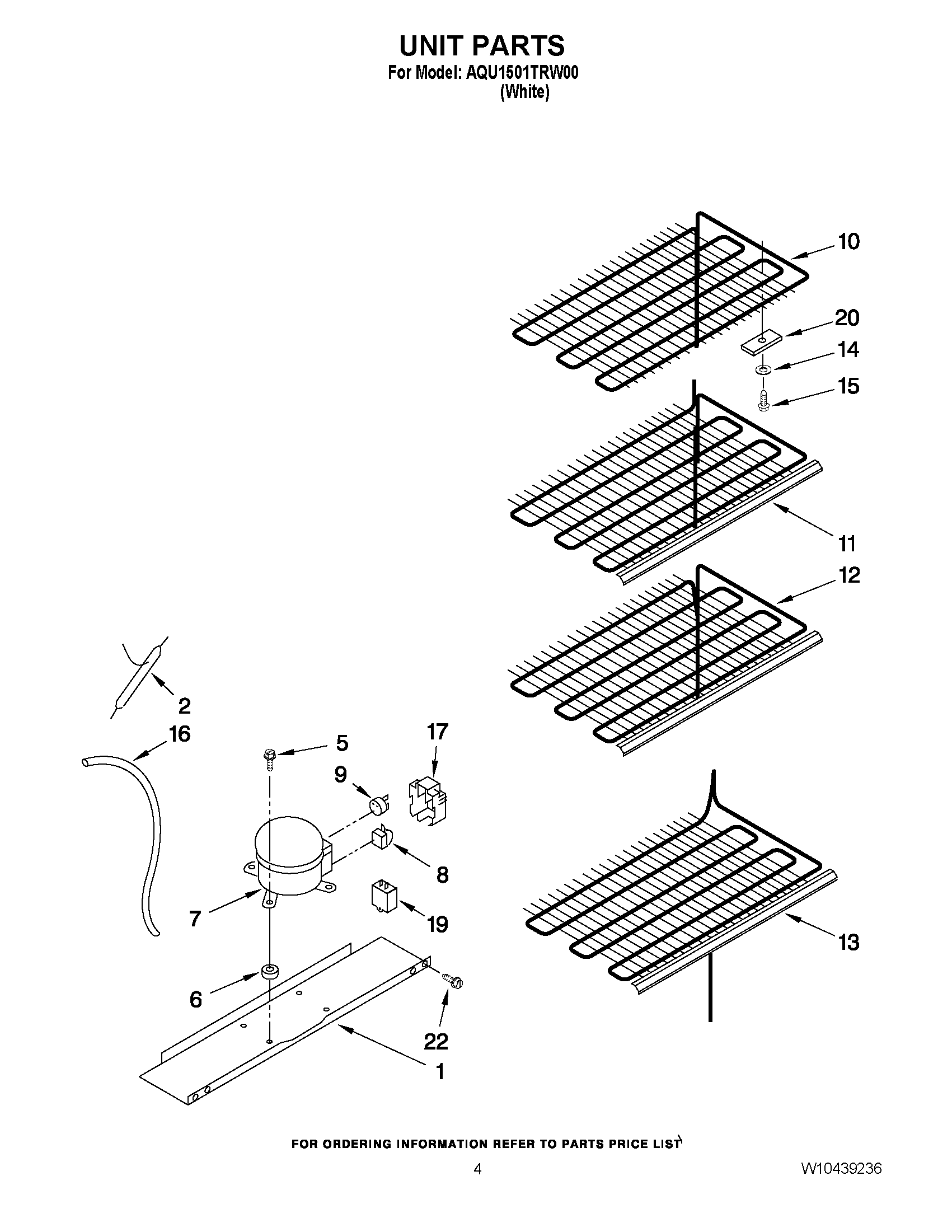

AQU1501TRW00 03 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
1	MAY 4-82684-003
2	MAY 4357299
5	Bolt, Compressor
6	COMPRESSOR, MOUNTING GROMMET
7	COMPRESSOR (INCLUDES ITEMS 6, 8, 9, & 17)
8	MAY 4356738
9	OVERLOAD ((SERVICE ONLY))
10	MAY 4-82413-007
11	MAY 4-82194-007
12	MAY 4-82195-007
13	MAY 4-82197-006
14	MAY 4357057
15	MAY 4357223
16	MAY 2-82030-005
17	MAY 4-34046-011
19	MAY 8210273
20	MAY 4356854
22	MAY 4357277
