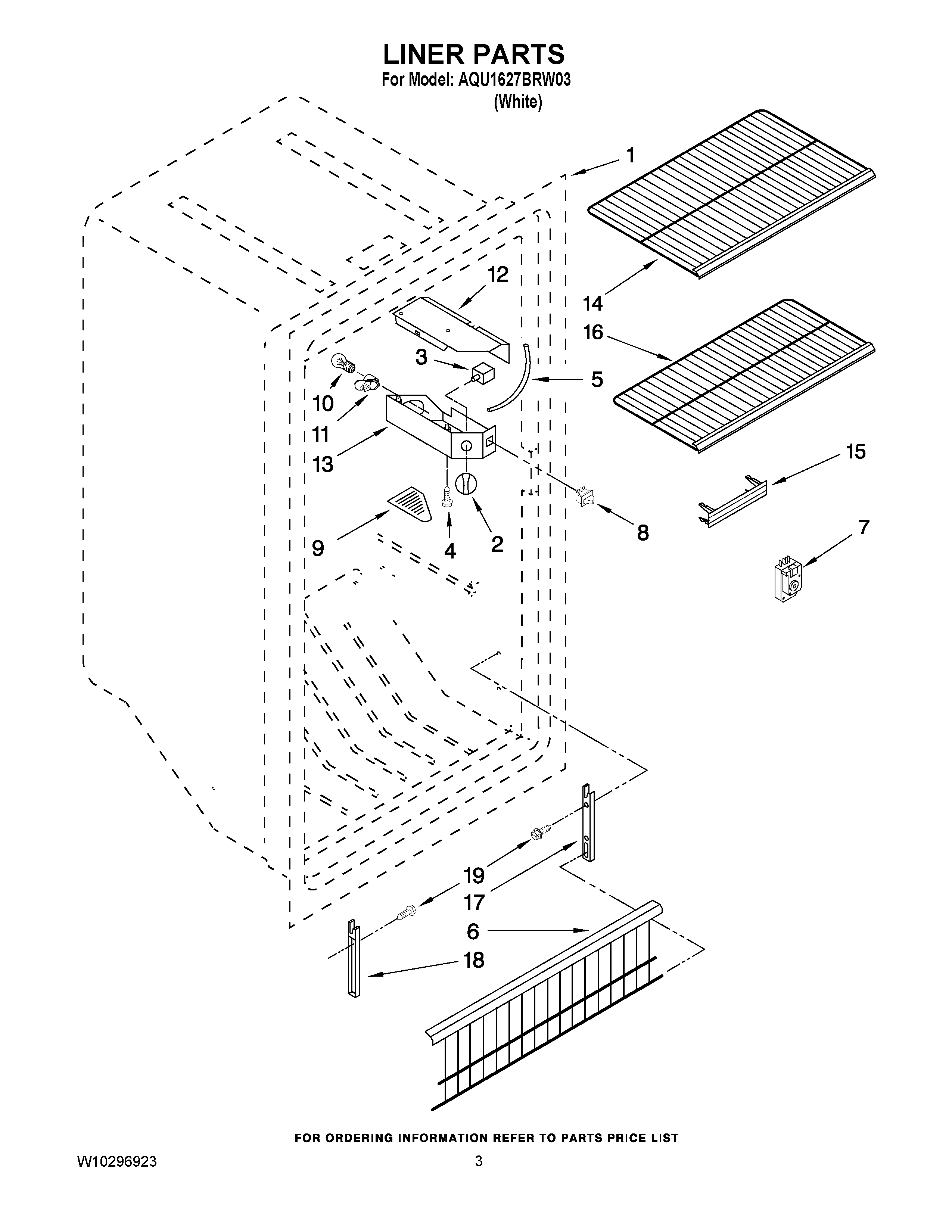

AQU1627BRW03 02 – LINER PARTS

AQU1627BRW03 02 – LINER PARTS

Written by

in

AQU1627BRW03 02 – LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Knob, Control
3MAY 8210344
4MAY 4357042
5MAY 8210246
6GATE
7MAY 4357124
8Switch, Light
9LENS LIGHT
10Bulb, Light
11Socket, Light
12MAY 8210351
13BOX, CONTROL
14MAY W10297044
15VENT PLUG (4)
16MAY W10297045
17SUPPORT FENCE RH
18SUPPORT FENCE LH
19MAY 4356891
