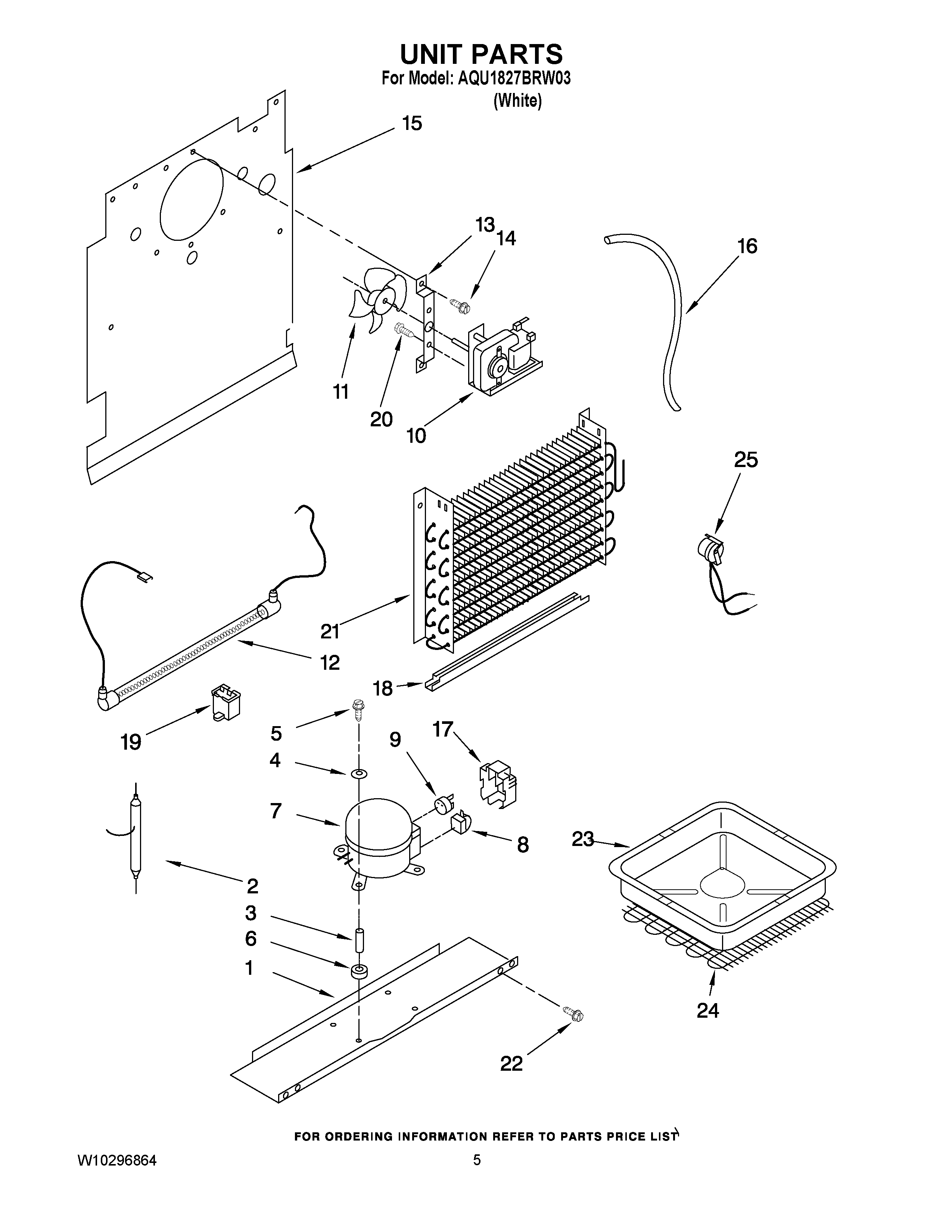

AQU1827BRW03 03 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
1	PAN, COMPRESSOR MOUNTING
2	MAY 4357299
3	MAY 4356846
4	MAY 4356847
5	Bolt, Compressor
6	COMPRESSOR, MOUNTING GROMMET
7	COMPRESSOR (INCLUDES ITEMS 6, 8, 9, 17 & 18)
8	MAY 4356738
9	MAY 4356776
10	MOTOR, FAN
11	BLADE, FAN
12	MAY W10179594
13	MAY 4357129
14	MAY 4356943
15	MAY 4357123
16	MAY 4357263
17	MAY 4356777
18	MAY W10164624
19	MAY 8210224
20	MAY 4356970
21	MAY 4357244
22	MAY W10134902
23	Pan, Drain
24	MAY 8210248
25	MAY 8210253
