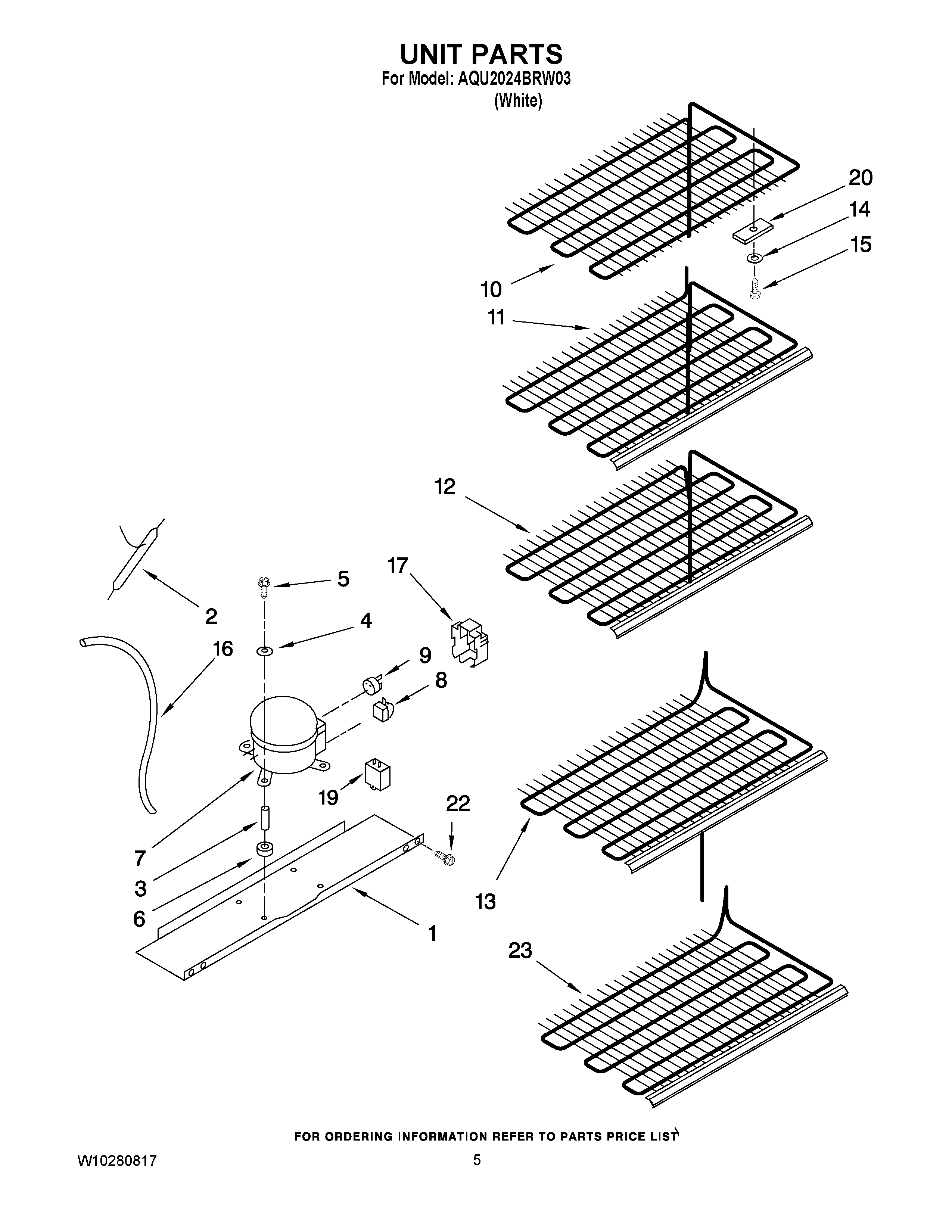

AQU2024BRW03 03 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10260291
2	MAY 4357299
3	MAY 4356846
4	MAY 4356847
5	Bolt, Compressor
6	COMPRESSOR, MOUNTING GROMMET
7	COMPRESSOR (INCLUDES ITEMS 6, 8, 9, 17 & 18)
8	MAY 4356738
9	MAY 4356776
10	EVAPORATOR, TOP
11	EVAPORATOR, SHELF
12	EVAPORATOR, SHELF
13	EVAPORATOR, SHELF
14	MAY 4357057
15	MAY 4357223
16	MAY 4390809
17	MAY 4356777
19	MAY 8210224
20	MAY 4356854
22	MAY 4357277
23	MAY W10294518
