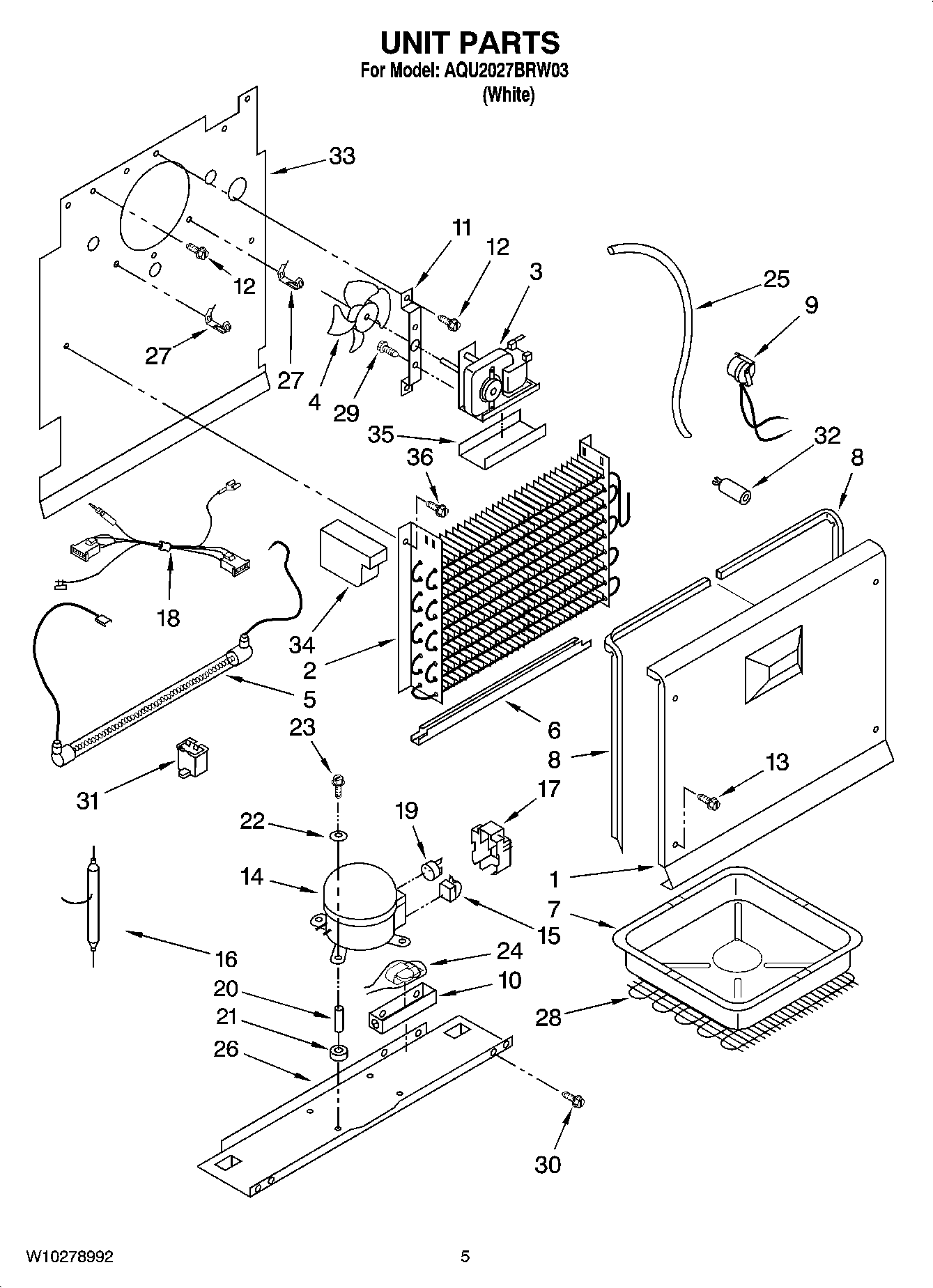

AQU2027BRW03 03 – UNIT PARTSadmin2025-04-26T08:56:32+00:00AQU2027BRW03 03 – UNIT PARTS
Products
| Position | Product |
|---|
| 1 | MAY 4390662 |
| 2 | MAY 4357244 |
| 3 | MOTOR, FAN |
| 4 | BLADE, FAN |
| 5 | MAY W10179594 |
| 6 | MAY W10279025 |
| 7 | Pan, Drain |
| 8 | MAY 4390664 |
| 8 | MAY 4390663 |
| 9 | MAY 8210253 |
| 10 | MAY 4390708 |
| 11 | MAY 4357129 |
| 12 | MAY 4356943 |
| 13 | Screw (4) |
| 14 | COMPRESSOR (INCLUDES ITEMS 6, 8, 9, 17 & 18) |
| 15 | MAY 4356738 |
| 16 | MAY 4357299 |
| 17 | MAY 4356777 |
| 18 | HARNESS, FAN |
| 19 | MAY 4356776 |
| 20 | MAY 4356846 |
| 21 | COMPRESSOR, MOUNTING GROMMET |
| 22 | MAY 4356847 |
| 23 | Bolt, Compressor |
| 24 | Alarm (Buzzer) |
| 25 | MAY 4357263 |
| 26 | PAN, COMPRESSOR MOUNTING |
| 27 | Clip, Thermostat |
| 28 | MAY 8210248 |
| 29 | MAY 4356970 |
| 30 | MAY 4357277 |
| 31 | MAY 8210224 |
| 32 | MAY 4357020 |
| 33 | MAY 4357123 |
| 34 | Block, Foam |
| 35 | MAY 4357128 |
| 36 | MAY 4390821 |
