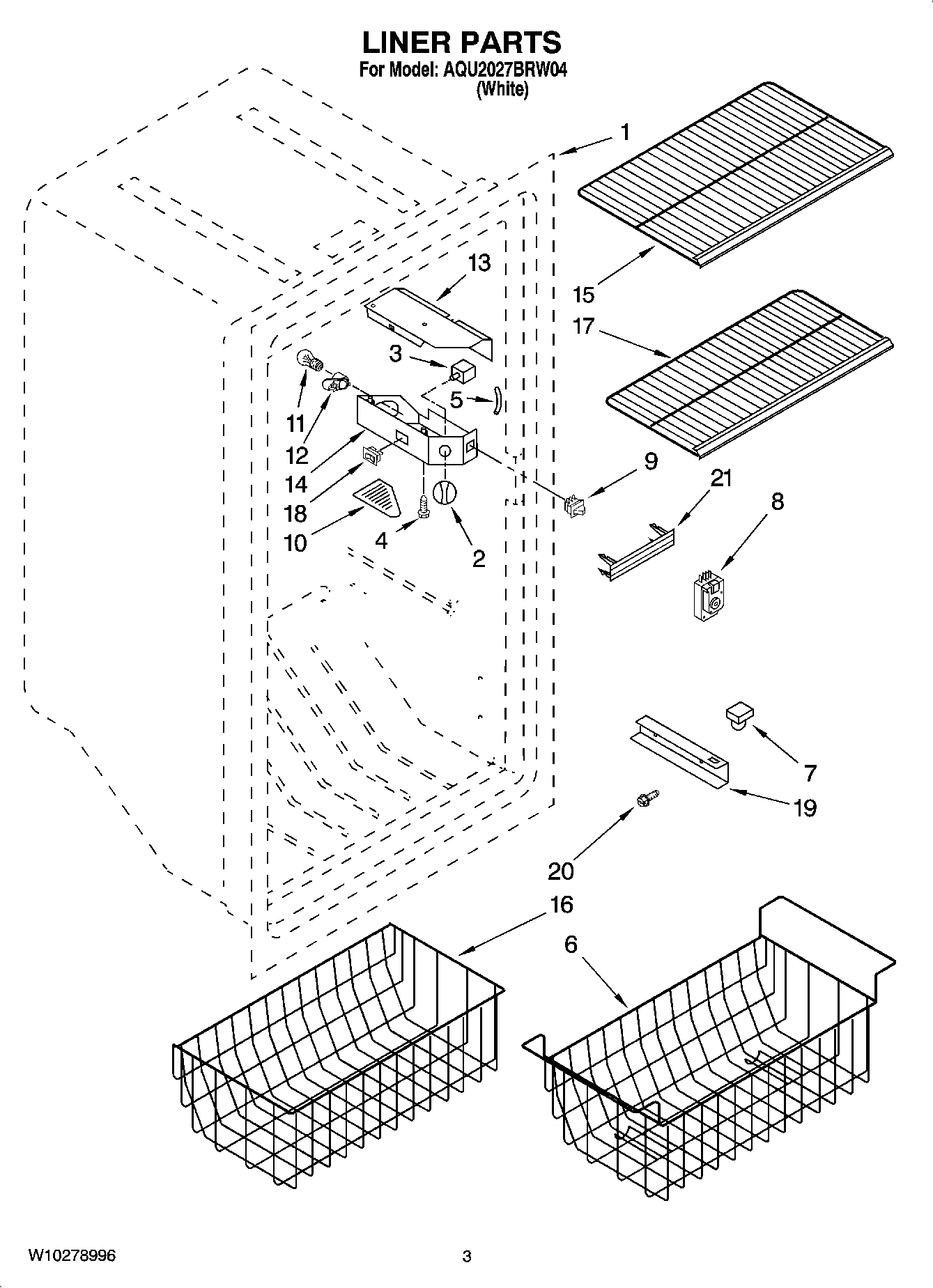

AQU2027BRW04 02 – LINER PARTS

AQU2027BRW04 02 – LINER PARTS

Written by

in

AQU2027BRW04 02 – LINER PARTS

Products

Position	Product
2	Knob, Control
3	MAY 8210344
4	MAY 4390511
5	MAY 8210246
6	Basket, Wire
7	MAY 4390823
8	MAY 4357124
9	Switch, Light
10	LENS LIGHT
11	Bulb, Light
12	Socket, Light
13	MAY 8210351
14	MAY W10164503
15	Shelf, Upper Wire
16	Basket, Wire
17	MAY W10279027
18	MAY W10264530
19	Support, Basket
19	Support, Basket
20	MAY 4390510
21	VENT PLUG (4)
