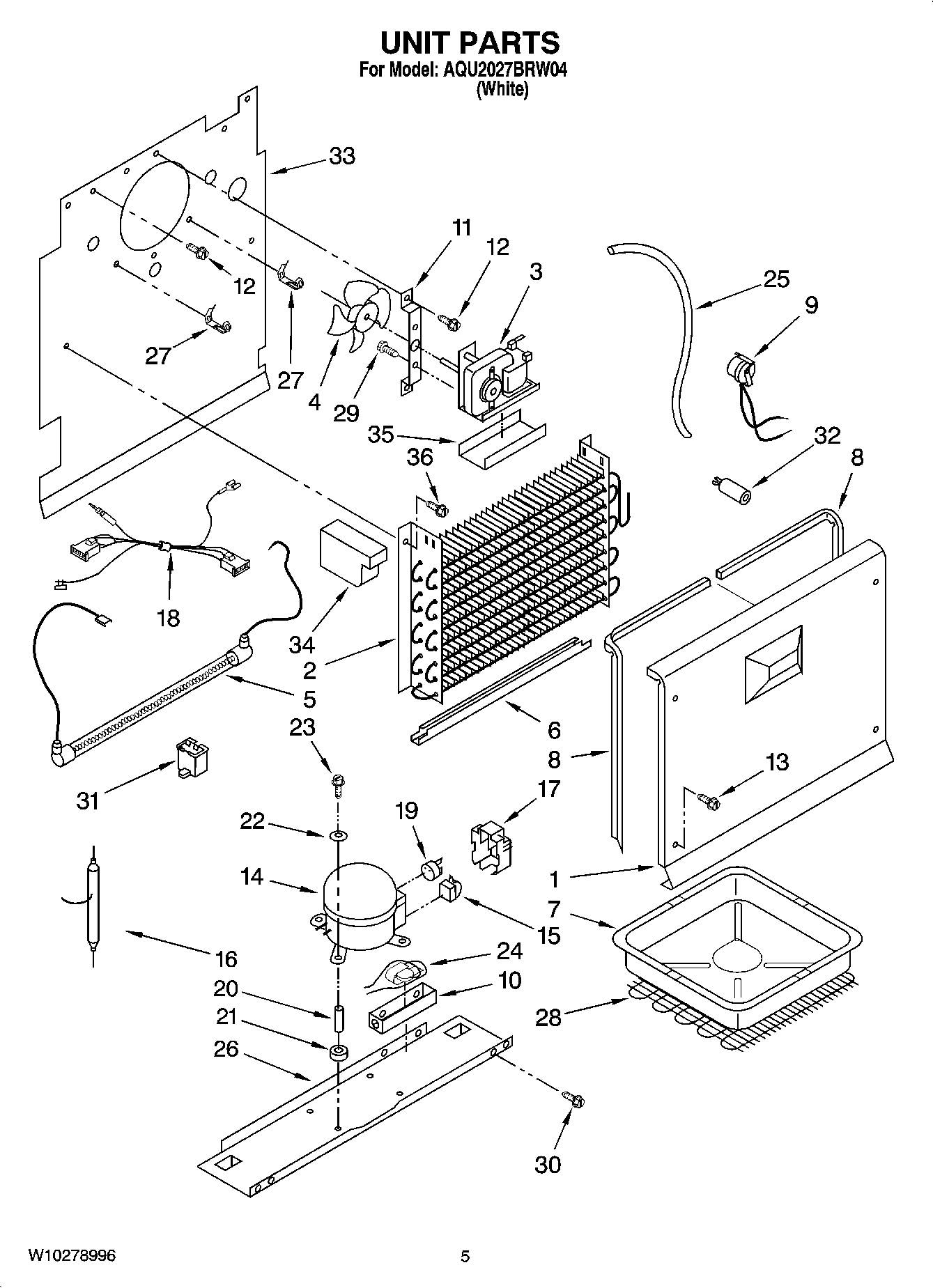

AQU2027BRW04 03 – UNIT PARTS

Products

Position	Product
1	MAY 4390662
2	MAY 4357244
3	MOTOR, FAN
4	BLADE, FAN
5	MAY W10179594
6	MAY W10164624
7	Pan, Drain
8	MAY 4390664
8	MAY 4390663
9	MAY 8210253
10	MAY 4390708
11	MAY 4357129
12	MAY 4356943
13	Screw (4)
14	COMPRESSOR (INCLUDES ITEMS 6, 8, 9, 17 & 18)
15	MAY 4356738
16	MAY 4357299
17	MAY 4356777
18	HARNESS, FAN
19	MAY 4356776
20	MAY 4356846
21	COMPRESSOR, MOUNTING GROMMET
22	MAY 4356847
23	Bolt, Compressor
24	MAY W10164514
25	MAY 4357263
26	Pan, Compressor
27	Clip, Thermostat
28	MAY 8210248
29	MAY 4356970
30	MAY 4357277
31	MAY 8210224
32	MAY 4357020
33	MAY 4357123
34	Block, Foam
35	MAY 4357128
36	MAY 4390821
