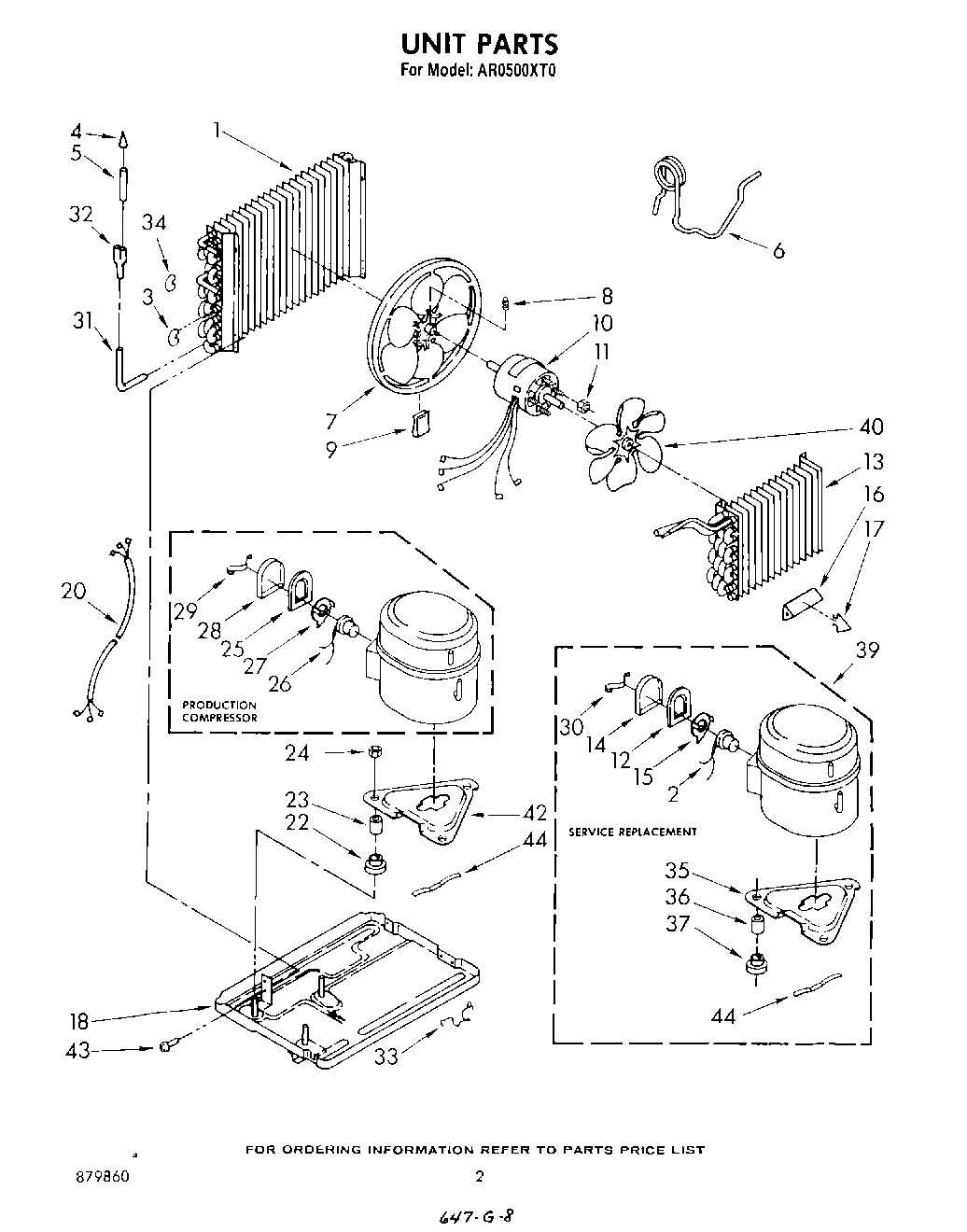

AR0500XT0 02 – UNIT, LITERATURE

Products

Position	Product
	List, Repair Parts
	Sheet, Tech And Wiring Diagram
	Guide, Energy
	Literature Parts (Use & Care Guide)
1	Condenser
2	WPL 643295
3	Bend, Return Condenser (10)
4	Strainer
5	Tube & Strainer (Includes Item 23)
6	Tube, Restrictor (Length 40.0“)
7	Blade, Fan
8	Setscrew, 5/16 x 1/4
9	Clip, Balancing
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
13	Evaporator
14	Cover, Terminal
15	Spring, Overload
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
20	Harness, Wiring
22	Grommet (4)
23	Sleeve (3)
24	Locknut (3)
25	Gasket, Terminal Cover
26	Overload
27	Spring, Overload
28	Cover, Terminal
29	Retainer, Terminal Cover
30	Retainer, Terminal Cover
31	Tube, 90~ Connect
32	Tube, Flow Divider
33	Clip, Mtg. (2) (Base to Front)
34	Bend, Return Condenser (4)
35	Plate, Mtg
36	Sleeve (4)
37	Grommet (4)
39	Compressor Assembly
40	Blade, Fan
42	Plate, Mounting Compressor
43	WP489069 Whirlpool Compactor Screw
43	Screw, Repair
44	Spring, Clip
