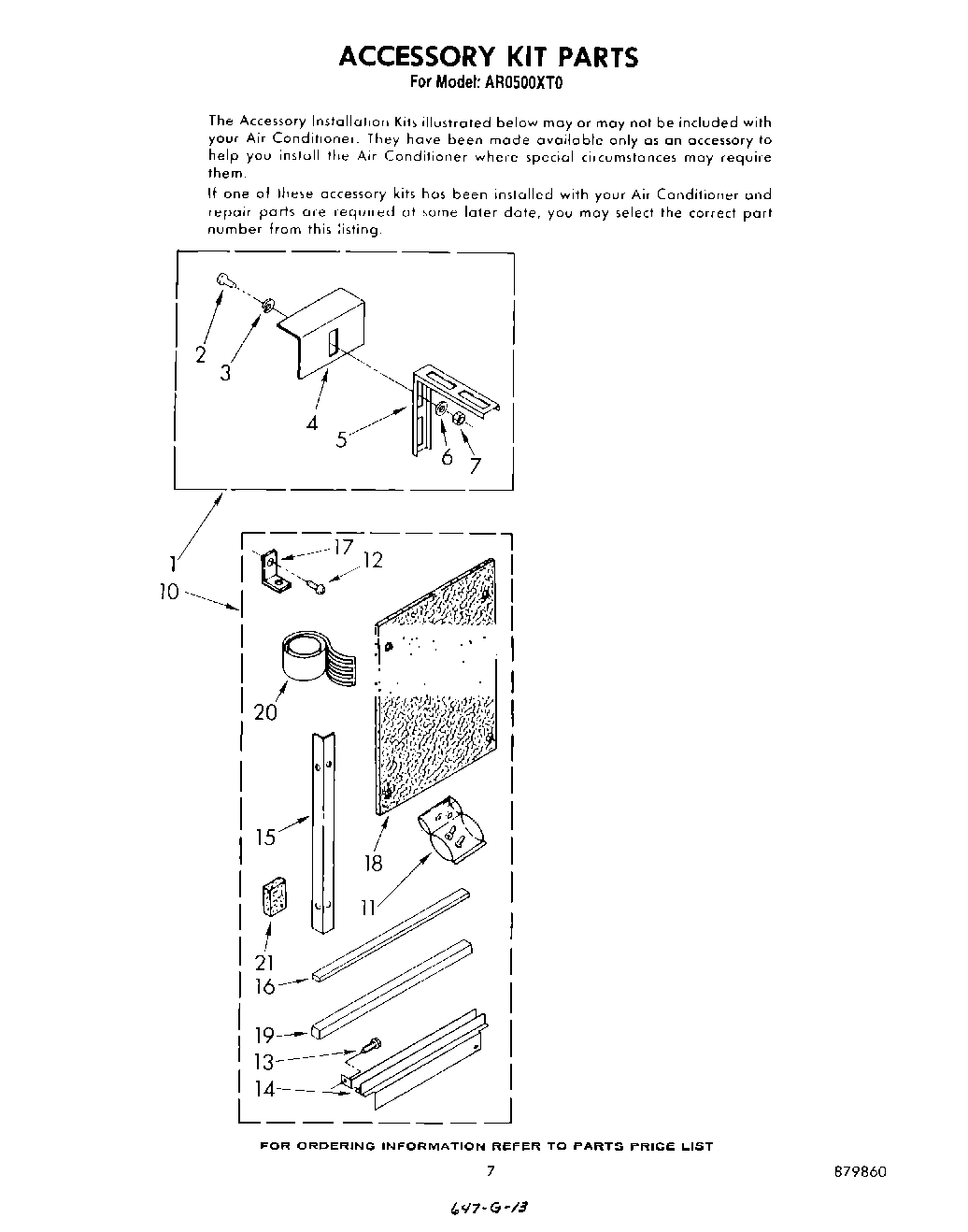

AR0500XT0 05 – ACCESSORY KIT

Products

PositionProduct
Instructions, Installation (Outside Sill Kit)
1Kit, Outside Sill Bracket
2Bolt, 1/4 x 3/4 (6)
3WP120393 Whirlpool Washer Assembly
4Bracket, Sill Mounting (2)
5Bracket, Rail Support (2)
6Lockwasher (6)
7Nut, Hex (6)
10Kit, Standard Window Installation
11Bag, Accessory
12Screw, Wood 8-15 x .750
13WP965173 Whirlpool Dishwasher Screw
14Bracket, L.S.
14Bracket, R.S.
15Angle, Side (2)
16Strip, Seal
17Bracket
18Board, Filler (2)
19Gasket, Meeting Rail
20212643 Whirlpool Refrigerator Permagum Sealer
21Spacer, Block (4)
