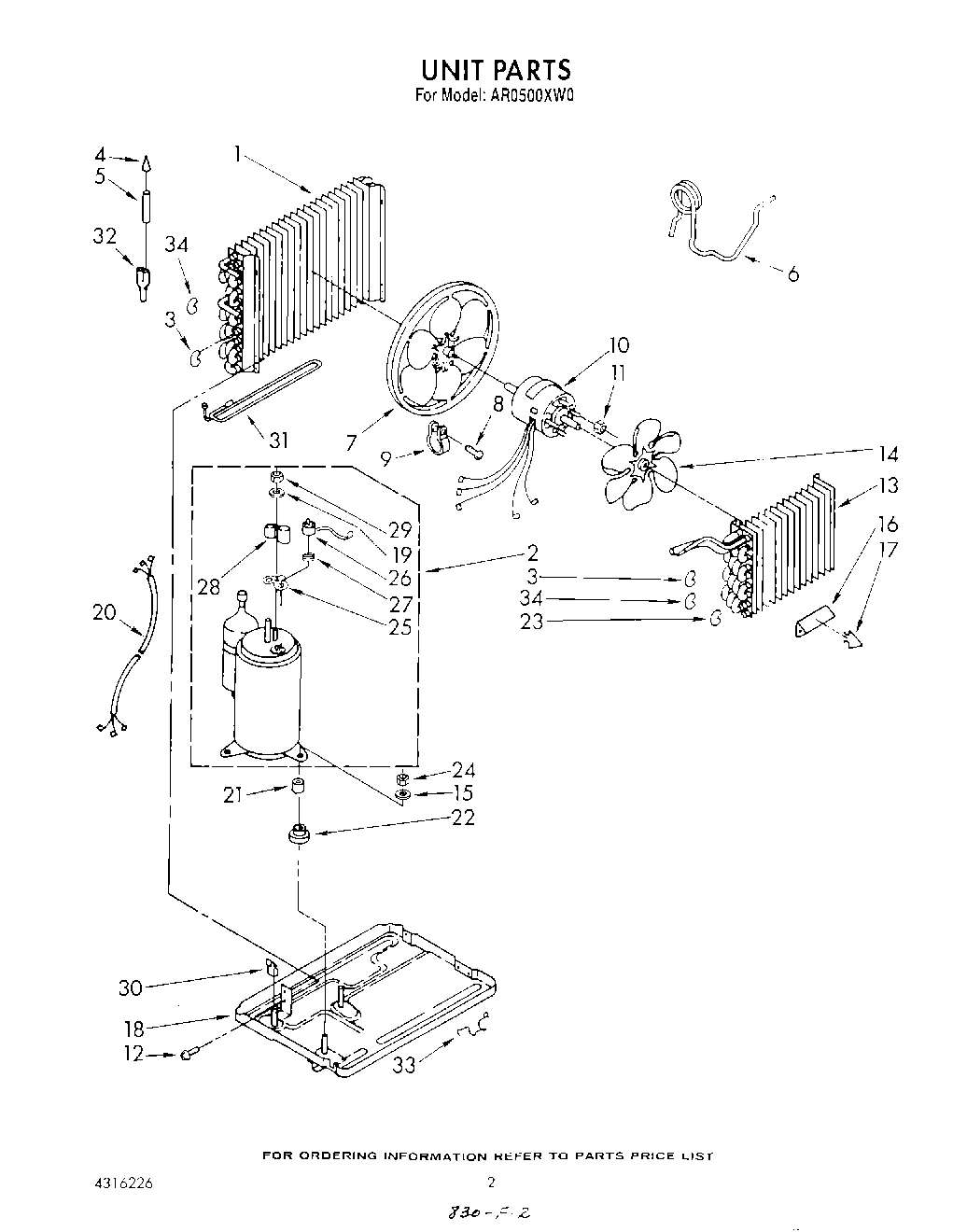

AR0500XW0 02 – UNIT

Products

Position	Product
	List, Repair Parts
	Sheet, Tech
	Guide, Energy
	Guide, Operation
	Installation, Instructions
	Instructions, Installation (Outside Sill Kit)
1	Condenser
2	Compressor Assembly
3	Bend, Return Condenser (10)
4	Strainer
5	Tube, Outlet (Includes Illus. 24)
6	Tube, Restrictor
7	Blade, Fan
9	Clip, Balancing
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WP489069 Whirlpool Compactor Screw
13	Evaporator
14	Fan, Blade Evaporator
15	WP120393 Whirlpool Washer Assembly
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
19	Gasket, Nut
20	Harness, Wiring
21	Sleeve, Compressor (3)
22	Grommet (4)
23	Bend Return
24	Locknut (3)
25	Gasket, Terminal Cover
26	WP1161170 Whirlpool Air Conditioner Overload
27	Spring, Overload
28	Cover, Terminal
29	Nut, Hex (4)
30	Clip, Tube
31	Tube, Condenser Extension
32	Tube, Flow Divider
33	Clip, Mtg. (2) (Base to Front)
34	Bend, Return Condenser (4)
