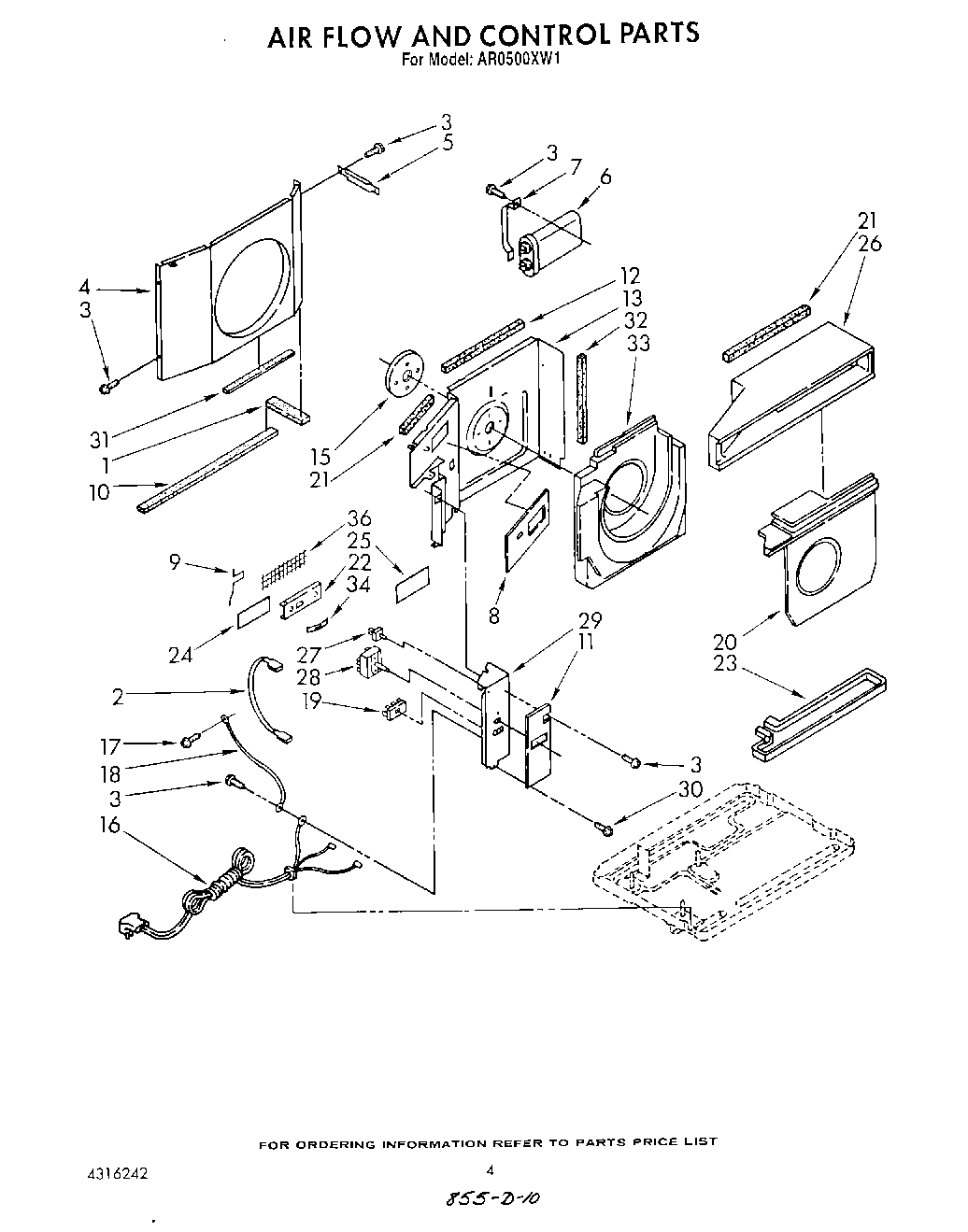

AR0500XW1 03 – AIR FLOW AND CONTROLadmin2025-04-26T12:43:31+00:00AR0500XW1 03 – AIR FLOW AND CONTROL
Products
| Position | Product |
|---|
| 1 | Seal, Condensate |
| 2 | Wire, Jumper |
| 3 | WP489069 Whirlpool Compactor Screw |
| 4 | Shroud, Condenser |
| 5 | Support, Unit |
| 6 | Capacitor, Run |
| 7 | Bracket, Capacitor |
| 8 | Insulation, Exhaust Door |
| 9 | Arm, Exhaust Door |
| 10 | Seal |
| 11 | Insulation, Control Panel |
| 12 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 13 | Wall, Dividing |
| 15 | Insulation, Motor |
| 16 | Cord, Appliance |
| 17 | WPW10141604 Whirlpool Screw |
| 18 | Wire, Ground |
| 19 | Thermostat |
| 20 | Orifice, Air Housing |
| 22 | Door, Exhaust |
| 23 | Pan, Evaporator |
| 24 | Barrier Protective |
| 25 | Seal, Barrier |
| 26 | Hood, Air Housing |
| 27 | Actuator, Door |
| 28 | Switch, Rotary |
| 29 | Panel, Control |
| 30 | Screw, 6-32 x .175 |
| 33 | Housing, Air |
| 34 | Spring, Retainer |
| 36 | Screen, Exhaust Door |
