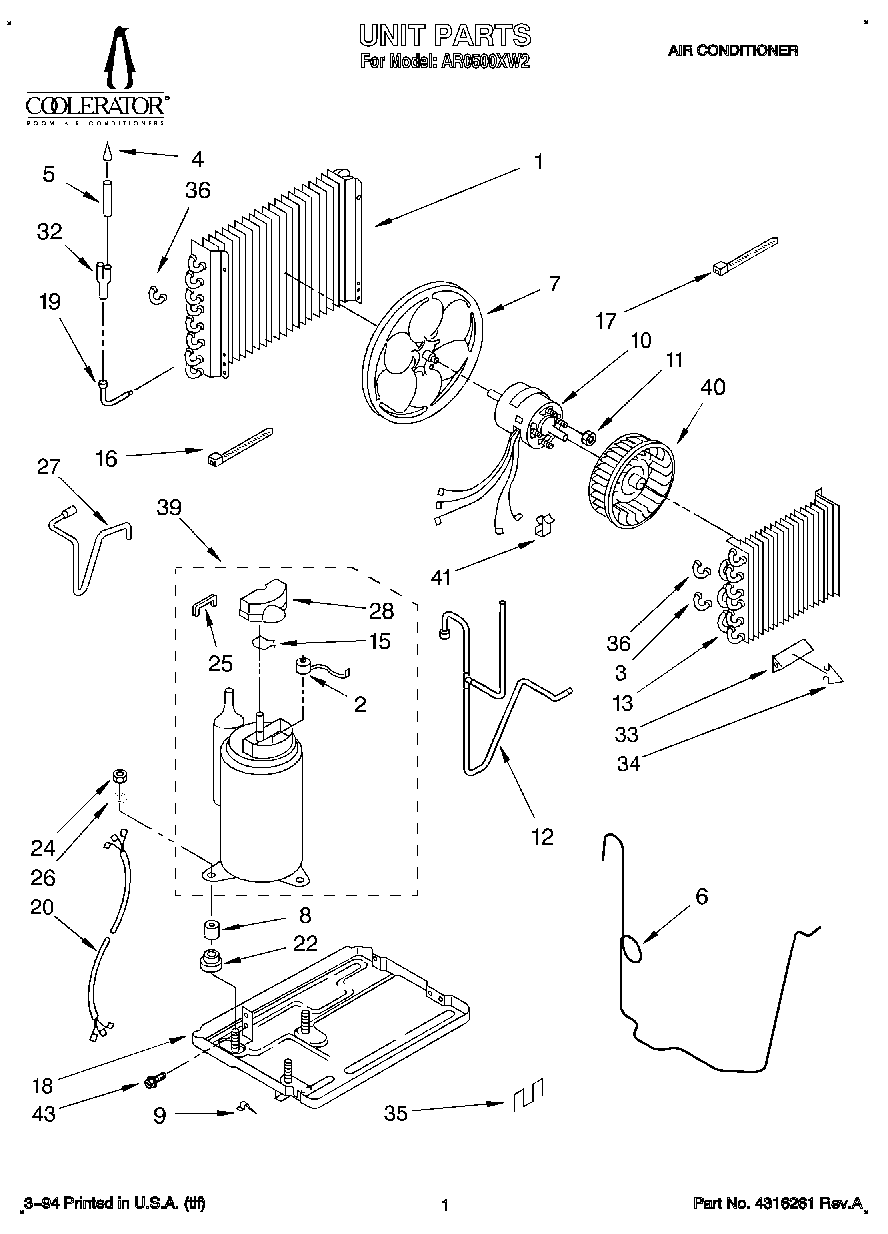

AR0500XW2 01 – UNIT, LITERATURE

Products

Position	Product
	Tech Sheet
	Wiring Diagram
	Instructions, Installation
	Guide, Operation
1	Condenser
2	WP1161170 Whirlpool Air Conditioner Overload
3	Bend, Return Condenser (4)
4	Strainer
5	Tube & Strainer (Includes Illus. 4)
6	Tube, Restrictor
7	Blade, Fan
8	Sleeve, Compressor (3)
9	Clamp, Tube (2)
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	Tube, Suction
13	Evaporator
15	Spring, Overload
17	WPW10339879 Whirlpool Wire Tie
18	Base
19	Tube, Connecting
20	Harness, Wiring
22	Grommet (4)
24	Locknut (3)
25	Gasket, Terminal Cover
26	WP120393 Whirlpool Washer Assembly
27	Tube, Discharge
28	Cover, Terminal
32	Tube, Flow Divider
33	Anticipator, Temperature
34	Clip, Anticipator
35	Clip, Mtg. (2) (Base to Front)
36	Bend, Return Condenser (10)
39	Compressor Assembly
40	Wheel, Blower
41	Clamp, Wiring
43	WP489069 Whirlpool Compactor Screw
