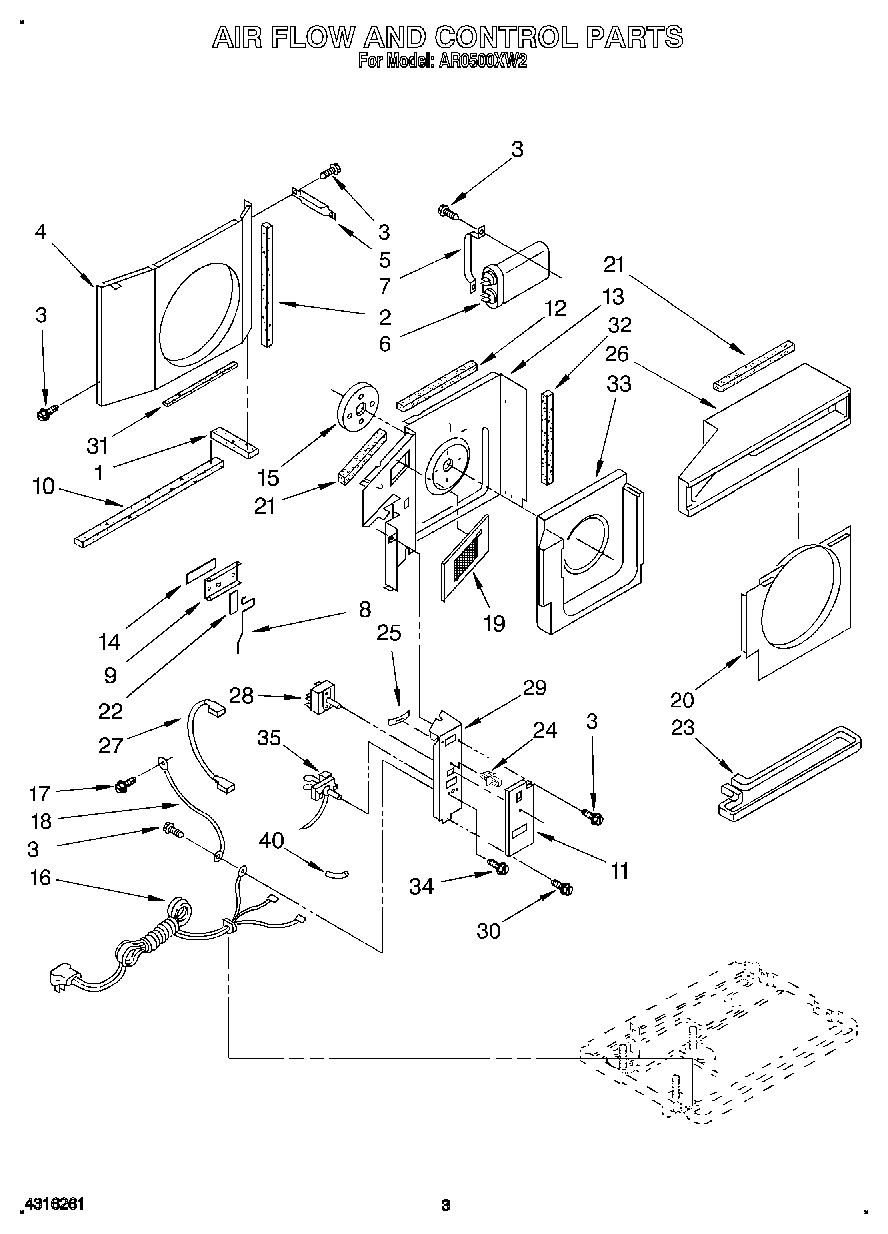

AR0500XW2 02 – AIR FLOW AND CONTROL

Products

Position	Product
1	Seal, Condensate
2	Seal, Condenser (R.S.)
3	WP489069 Whirlpool Compactor Screw
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Running
7	Bracket, Capacitor
8	Arm, Exhaust Door
9	Door, Exhaust
10	Seal
11	Insulation, Control Panel
12	WP854334 Whirlpool Air Conditioner Sealing Strip
13	Wall, Dividing
14	Spacer
15	Insulation, Motor
16	Cord, Appliance
17	Screw, 8 x 3/8
18	Wire, Ground
19	Insulation, Exhaust Door
20	Orifice, Air Housing
22	Barrier Protective
23	Pan, Evaporator
24	Actuator, Door
25	Spring, Retainer
26	Hood, Air Housing
27	Wire, Jumper
28	Switch, Rotary
29	Panel, Control
30	Screw 8-18 x .295
33	Housing, Air
34	Screw, 6-32 x .175
35	Control, Temperature
40	Insulation, Sleeve
